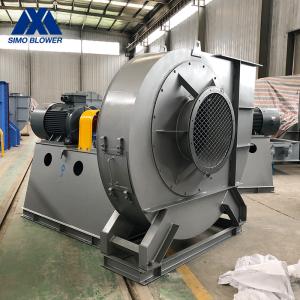

Industrial Coupling Driving Biomass Boiler Centrifugal Blower Fan
Introduction
1. The bearing housing is reserved for the installation position of
temperature and vibration sensors, which can facilitate the
installation of fan operation monitoring device.
2. Use liquid lubricating oil. It is not necessary to open the
bearing housing to replace and fill the lubricating oil. The
bearing housing is provided with an observation window for easy
observation of the quality and stock of the lubricating oil.
3. The bearing housing uses labyrinth mechanical seal, unique
anti-leakage design inside, vent hole at the top, and sealing
grease at the joint, completely eliminating the possibility of oil
leakage in the bearing hosing.
4. After annealed treatment, the internal stress of the structure
generated during welding can be completely eliminated to ensure
that the impeller will not creepage and crack.
5. The impeller is subjected to a high standard of dynamic
balancing adjusting to ensure stable operation of the fan.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
|---|
| 6-06 | 8D | 1450 | 1859～2745 | 11000～26400 | 15 ~ 22 |
| 9D | 1450 | 2353～3474 | 15700～37500 | 30 ~ 45 |
| 10D | 1450 | 2905～4289 | 21500～51500 | 45 ~ 75 |
| 11D | 960 ~ 1450 | 1541～5190 | 22700～68500 | 22 ~ 110 |
| 12D | 960 ~ 1450 | 1834～6176 | 24600～89000 | 37 ~ 160 |
| 13D | 960 ~ 1450 | 2152～7248 | 31200～113000 | 55 ~ 250 |
| 14D | 960 ~ 1450 | 2496～8406 | 39000～141000 | 75 ~ 400 |
| 15D | 730 ~ 1450 | 1657～9650 | 36600～172000 | 45 ~ 500 |
| 16D | 730 ~ 1450 | 1885～10980 | 44300～211000 | 75 ~ 710 |
| 17D | 730 ~ 960 | 2128～5433 | 53200～168000 | 90 ~ 280 |
| 18D | 730 ~ 960 | 2386～6091 | 63100～199000 | 110 ~ 355 |
| 19D | 730 ~ 960 | 2658～6787 | 74200～234000 | 160 ~ 500 |
| 20D | 730 ~ 960 | 2946～7520 | 86700～273000 | 200 ~ 630 |
| 21D | 580 ~ 960 | 2050～8290 | 79500～316000 | 200 ~ 800 |
| 22D | 580 ~ 960 | 2250～9099 | 92200～363000 | 220 ~ 1000 |
| 23.5D | 580 ~ 960 | 2567～10380 | 112000～443000 | 220 ~ 1400 |
| 25D | 580 ~ 730 | 6794～6464 | 134000～406000 | 355 ~ 800 |
| 26.5D | 480 ~ 730 | 2236～7633 | 132000～483000 | 220 ~ 1120 |
| 28D | 480 ~ 730 | 2496～8522 | 156000～569000 | 315 ~ 1400 |
| 29.5D | 480 ~ 730 | 2771 ~ 9460 | 183000～667000 | 400 ~ 200 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
Application
Centrifugal fan is applied in industrial boiler, (centrifugal fan
can be applied in industrial boiler,) it also can be applied in
industrial kilns, blast furnace, Industrial waste heat recovery
device, Electrolytic aluminium production line air purification
system and other industrial work environment.
