    Transmission Line Stringing Equipment 60kN Hydraulic Puller Machine With Cummins Engine

    Ask Lasest Price
    Brand Name : Boyu
    Model Number : TY60
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

    Transmission Line Stringing Equipment 60kN Hydraulic Puller Machine With Cummins Engine

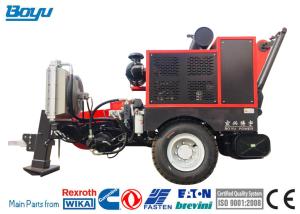

    TY60 60kN Hydraulic Puller Machine For Overhead Line With Cummins Engine


    TY60 Hydraulic Puller

    • Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.

    Characteristics

    1. Bull-wheel diameter: 450mm
    2. Groove number: 7
    3. Max rope diameter: 18mm
    4. Max diameter of rope reel: 1400
    5. Total weight: 3500kg
    6. Overall dimension (length*width*height): 3800*2100*2300mm

    Engine

    1. Diesel: 77kw(103hp)
    2. Cooling system: water
    3. Electrical system: 24V

    Main configuration

    1. Engine: Cummins
    2. hydraulic pump: German Rexroth
    3. Main motor: German Rexroth
    4. speed reducer: German Rexroth
    5. Tail bracket hoisting motor: American Eton
    6. Hydraulic meter: German
    7. Operating handle: German Rexroth

    Performance

    1. Max intermittent pull: 60kN
    2. Max continuous pull: 50kN
    3. Speed at max pull: 2.5km/h
    4. Max speed: 5km/h
    5. Pull at max speed: 25kN

    Hydraulic Transmission

    • Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

    Additional Devices

    1. Lighting system for the trailer
    2. Hydraulic rope clamp for reel change
    3. Swivel guide rope roller
    4. Trailer for towing at max speed of 30 km/h
    5. Extra shaft
    6. Digital speed and meter counter (extra charge)

    Configuration

    1. Hydraulic dynamometer with set-point and automatic control of maximum pull
    2. Hydraulic oil cooling system
    3. Control instruments for hydraulic system and diesel engine
    4. On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
    5. Hydraulic front stabilizer
    6. Grounding connection point


    Workshop


    At present, our annual output value is more than 30 million US dollars. We provide more than 1000 sets of equipment for power system customers. Our products are very popular in China, and our main customers include state grid, China power, EETC, etc. We have also been in the international market for more than 10 years, operating in more than 50 countries.


    Since 2019, we have participated in the international bidding of Bolivian and Pakistani government companies, won the bid from "Ende transition" in Bolivia and entered into "NTDC" in Pakistan


    We have been operating in the Philippines since 2014. Our customers include meralco, ferrowells, MB versoza, hansei, Jay engineering, Wyn power, multi discovery and sta. Clara et al.
