    Cold Mix Asphalt Semi Automatic Bagging Machine 3-6KW

    Ask Lasest Price
    Brand Name : BLU-RAY
    Certification : CE,ISO,CMC
    Supply Ability : 100 Set/Sets per Month
    Price : $5,000.00 - $10,000.00 / Set
    Model Number : DCS-50SD
    • Product Details
    • Company Profile

    Cold Mix Asphalt Semi Automatic Bagging Machine 3-6KW

    Product Description

    Product Name

    Gravity feeding mechanism packing/packaging/bagging/filling machine

    Item

    DCS-50WL

    DCS-50L

    DCS-50SK

    Application Materials

    Granular materials such as plastic particles,feed, fertilizer( urea etc),

    grain,sugar, bean, rice

    Display Resolution

    5g, 10g

    Weighing Range

    10-50kg/bag or customized needs

    Precision

    +/-(0.1-0.2)% FS

    Packing Capacity

    240-360bags/hour

    or more fast

    360-480 bags/hour

    or more fast

    500-600 bags/hour

    or more fast

    Dimension(L*W*Hmm)

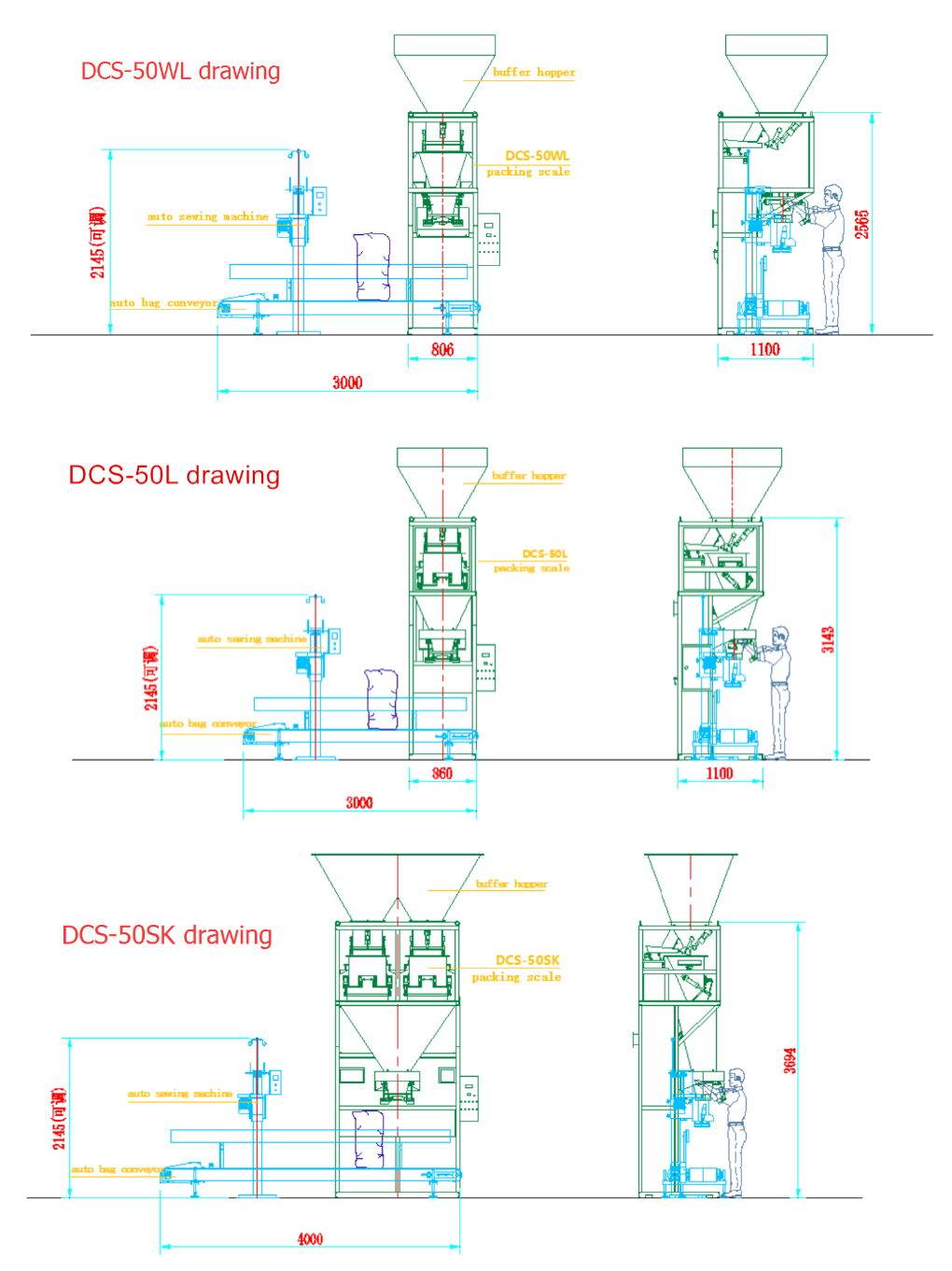

    See detailed drawing, the size can be customized according to your site

    Power Supply

    AC220V/380V, 50HZ, 1P/3P

    Air Source

    0.5-0.7 Mpa

    Power

    3KW-4KW

    Working Temperature

    -10~40 ℃

    Relative Humidity

    ≤90% RH(Non-condensing)

    Machine Accessories

    Description

    Remarks

    Packing scale framework

    Floor structure, high quality carbon steel

    Feeding mechanism

    Gravity feeding type, three grade feeding speed with fast-medium-slow

    Weighing sensor

    Installation 3pcs(DCS-50WL,DCS-50L)/6pcs(DCS-50SK) load cell, famous brand

    Control system

    PLC system, full automatic, data record & print function

    Control box

    Color touch screen, English/Chinese interface

    Cylinder

    AirTAC brand, big force, high quality, more stable, long service life

    Solenoid valve

    AirTAC brand, with indicator

    Electric component

    Schneider brand, short circuit protection function

    Pneumatic component

    AirTAC brand, stable and reliable

    Motor

    Frequency conversion motor with smooth working

    Automatic sewing machine

    Photoelectric induction control, automatic thread knife cut, date record & print

    Belt type bag conveyor

    Speed governing design

    Application

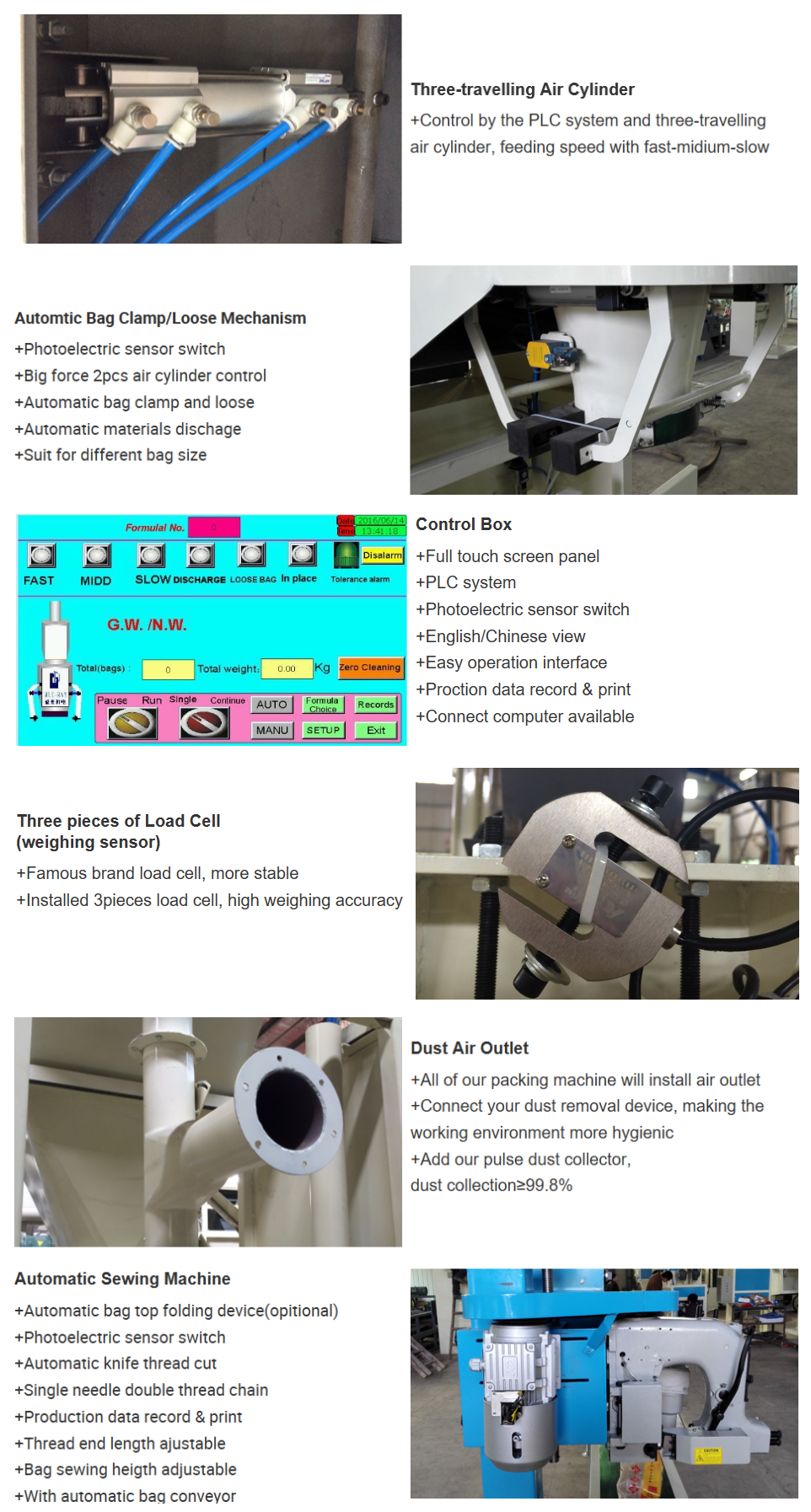

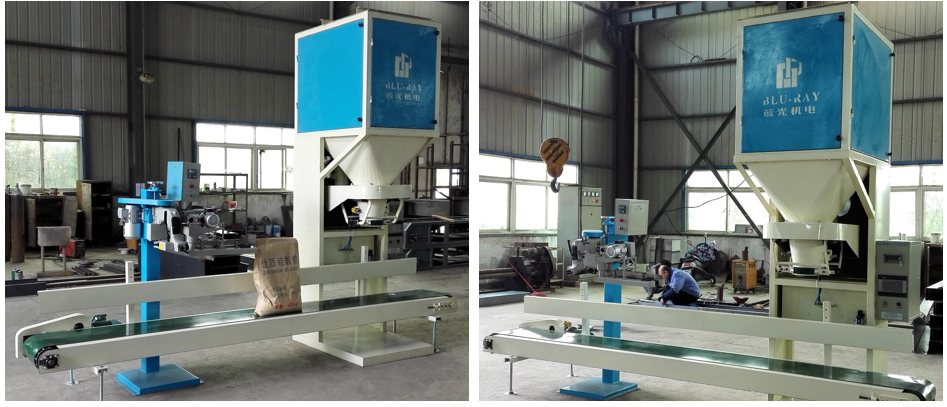

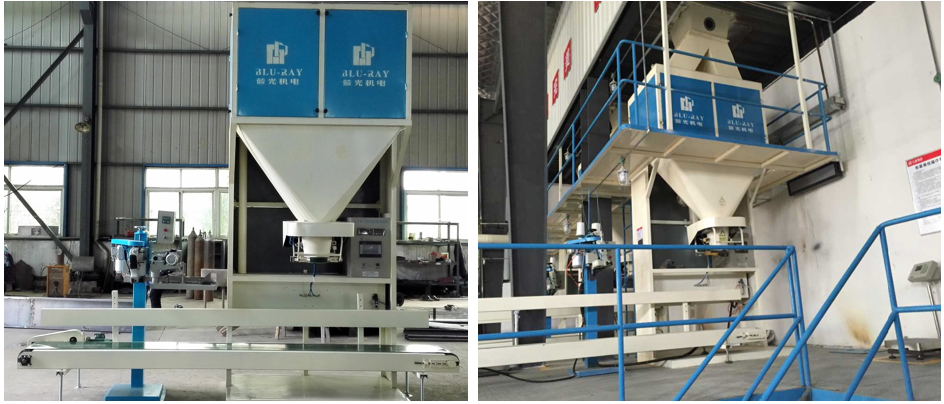

    Detailed Images

    DCS-50WL 240-360bag/hour GRAVITY FEEDING packing/packaging/bagging/filling machine picture

    DCS-50L 360-480bags/hour GRAVITY FEEDING packing/packaging/bagging/filling machine picture

    DCS-50SK 500-600bag/hour GRAVITY FEEDING packing/packaging/bagging/filling machine picture

    Working Process

    Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing

    Advantage

    Packing & Delivery

    Our Company

    Flowing chart:

    Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-

    testing-packaging and transport-after service
