3.2m Skycolor SC-320TS Digital Inkjet Printing Machine For
Advertising
| SC-320TS Digital Inkjet Printing Machine For Advertising |
| Printhead | Type: Epson Dx5 Micropiezo Printhead
Number of Nozzles: 1440(1PC)
Resolution: 1440DPI
Head Clean: Auto cleaning, flash and Moisturizing | Type: Epson 4720 Micropiezo Printhead
Number of Nozzles: 3200(1PC)
Resolution: 3200DPI
Head Clean: Auto cleaning, flash and Moisturizing |
| Quantity | 2 | 3 | 2 | 3 |
Print Speed
*Tested on linear printing without feather function | 4pass | 32㎡/h | 45㎡/h | 2pass | 80㎡/h | 124㎡/h |
| 6pass | 26㎡/h | 31㎡/h | 3pass | 55㎡/h | 85㎡/h |
| 8pass | 18㎡/h | 24㎡/h | 4pass | 42㎡/h | 63㎡/h |
| | | 6pass | 30㎡/h | 44㎡/h |
| Print Width | 3200mm |
| Ink Type | Type: Water-based ink(Dye or Pigment), Eco Solvent Ink, Sublimation
Ink
Color:CMYK |
| Print Media | PP, PVC, Vinyl, Flex Banner, Backlit, Mesh, etc. |
| Rip Software | Maintop6.0, Photoprint19, Onyx 19 |
| Image Format | JPG, TIFF, BMP, PDF, etc. |
| Computer System | Win7,Win8,Win10 |
| Transmit Port | USB 2.0 / USB 3.0 |
| Computer Cofigiration | Hard Disk: 500G or more, GPU: ATI Mobility
Radeon, Memory: 4G or above
CPU: Intel 4 I5 processor or above |
|
| Optional Device | Heat System: Extra Dryer Device
Take up System: Auto |
| Working Environment | Temp.:15℃-30℃, Humidity: 35℃-65℃ |
| Power Supply | 50/60HZ, 220V, 5A |
| Machine Size | Machine Size: 4680*1130*1490mm
Printer Packing Size: 4815*1100*1650mm |
| Machine Weight | 750kg |
FEATURE
- Imported dual direction motor from Japen, high-resolution driver
linear encoder, higher resolution, fewer erros in length, more
stable running.
- USB port more convenient, highest speed 480M/s, and it offers
network interface for printing in different places.
- VSDT variable dot technology, smallest droplet is 3.5 pl, largest
droplet is 27pl, achieve the perfect printing.
- Rip while printing.
- Printing area selectable.
DETAIL
Electronic Board : Motor :
Hoson electronic boards giving stability of dual direction motor
from Japen, high-resolution
printing. driver linear encoder, higher resolution, fewer
erros in length, more stable running.
Ink Tank: Platform:
Four large ink tanks provide ink durably, Finish machining
insdustrial-grade aluminum
keeping wide format high-speed printing alloy platform guarantees
long life and efficient
wonderfully. pringting.

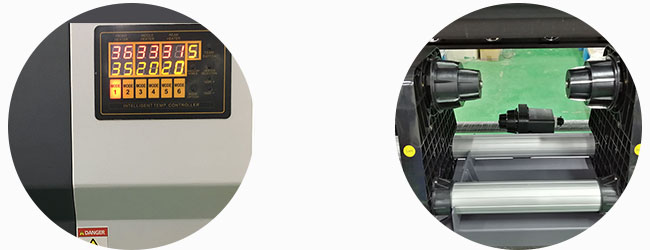

Drying System : Feed & Take-up System:
Three section body heater,temp is adjustable to Double-motor
take-up unit is standard equipped.
accelebrate media drying speed after printing.
APPLICATION
OUR SERVICE
One year warranty,lifetime maintenance beyond the warranty.
Teachnical training and guidance will be provided by ten
technicians who can fly to various countries at any time .
More than 2 million yuan were invested on after-sales every year.
Providing remote after-sales service support by online teachnical
guidance.
Two more QC is added on export machines to guarantee the
quality.Strict controlling on leadtime.
FAQ
Q1.Why this model price is higher?
All spare parts quality and design we use best, every customer
receive it, all said it is perfect machine.
Q2.How about the service?
24 hours online service or send engineer to your company training.
Q3.How many machines can be produced in a month?
500 sets per month.
Q4.Is product quality guaranteed?
We have professional technicians and after-sales service.Once there
is any problem,we will solve it patiently for you.
Q5.How long is the machine's warranty?
12 months.
