CE / EAC Horizontal Decanter Centrifuge Separator / Tricanter For
Crude Oil
LW Sedimentation Centrifuge is a horizontal, continuously working
and continuously spiral discharging sedimentation centrifuge. It is
used in avariety or industries for separating all kinds of solid
liquid suspension, defecating liquid phase with graded grains, and
dehydrating sludge.
Decanter design:
1 , Type: 3- phase separation
2 , Materials: use high-quality stainless steel for all product
wetted areas.
3 , Bearings: FAG brand. A special selection and arrangement of
bearings provides for long life and exceptional reliability.
4 , Wear protection: welded hard facing or spray coating, ceramic
technology.
3 phase Decanter Centrifuge:
Parameters of decanter centrifuge
| Type | Bowl diameter(mm) | Bowl length/ Bowl diameter | Bowl speed (r/min) | Main Power(Kw) |
| LWS355 | 355 | 3.3-4.5 | 4000 | 15-18.5 |
| LWS420 | 420 | 4.1 | 3600 | 22 |
| LWS500 | 500 | 4.2 | 3000 | 30 |
| LWS530 | 500 | 4.2 | 3000 | 30 |
| LWS580 | 580 | 4.1 | 2800 | 45 |
| LWS620 | 620 | 4 | 2800 | 45 |
| Note: In case of differences between the table and the user manual,
the latter shall prevail. |
Feature of decanter centrifuge:
The decanter centrifuge can be adjusted to suit individual
requirements by varying:
1.Differential with high precision, compact structure, smooth
operation.
2.Main bearing of imported bearings, to ensure the accuracy of the
operation.
3.The part contacting with material is made of stainless steel.
4.The machine is equipped with a variety of safety overload
protection devices, to make sure safety in production.
5.The machine system has two types, regular and explosion proof, to
meet the different requirement.
6.Large length to diameter ratio, high speed, many angels of drum
cone structure
7.Spiral pusher surface adopts hard alloy materials, against
abrasion powerfully
8.According to the customer's desire, the frame can develop to low
center of gravity, high bracket and move.
9.Spiral structure with BD board is used for the concentration
dehydration of activated sludge and difficult separate materials
10.PLC control box
Application of decanter centrifuge:
1.Environmental protection city life of dirt, power plants,
petrochemical refinery sludge sludge, coking, industrial sludge
concentration, sludge dewatering.
2.Food and drink fruit juice slag, slag of animal oil, plant oil,
soy protein isolates of dehydration, surimi, concentration of fish
protein, wheat starch B dehydration.
3.Chemical * barium dehydration, kaolin industry classification and
grade of graphite and PPT, classification of drilling mud.
4.Coal tar, coal tar dehydration and slag, adapted to the different
viscosity and water (emulsion) of coal tar separation, after the
separation of reach national standard tar.
5, oil separation, vegetable oil, like avocado oil, olive oil,
sesame oil, soy oil and so on.
animal oil, pork oil, fish oil, chiecken oil, beef oil ect.
waste oil like the waste heavy oil, fuel oil, other waste
oil,petroleum,Bottom crude oil
Certification of decanter centrifuge
Main Parts

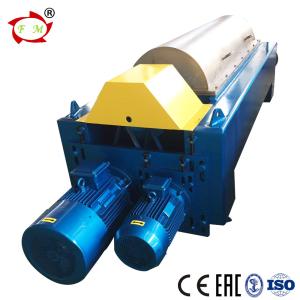

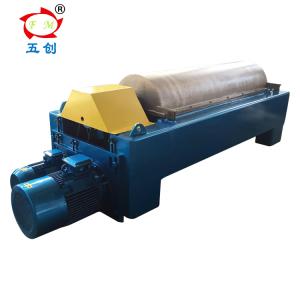

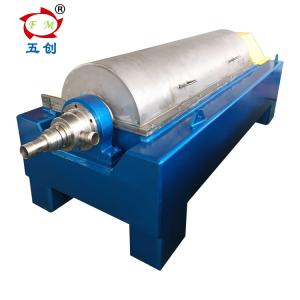

Photos of decanter centrifuge
Applications of decanter centrifuge in crude oil separation
Packages of decanter centrifuge
Our service of decanter centrifuge:
Pre-Service
1. 24 hours onlinne consult and service
2. Introduce the details of products to the customers, answer the
question raised by customer at firstly;
3. Providing the operation , installation and working video for
customers.
4. Providing the different solutions for choice according to the
needs and requirements of customers;
Sale Service
1. Ensure new product with high quality before delivery;
2. Packing according to the export requirements and shiping
carefully;
3. Provide full set of documents as customer's requirements.
4. Providing one year sparing parts for you for free.
5. Delivery on time
After-sale Service
1. Help to install and debug the equipment, Our technicians could
be dispatched for
overseas service.
2. Provide 24 hours techincal support by e-mail or phone;
3. Abundant spare parts in stock are available to provide.
4. Help customers slove any other questions about products or other
aspect;
5. Your workers could get trained both in our factory and yours.
Service Commitment
1. We will provide one-year warrantee to make sure your machine
runs consistently. We always keep certain inventory level of spare
parts, which means the replacements can be shipped to you right
away.
2. Consultant services for whole machine life, 24 hours technical
support by email and telephone.
3. Send technicians to the jobsite for guiding the installation and
adjustment, training operators and finishing the check and accept
together with you.
