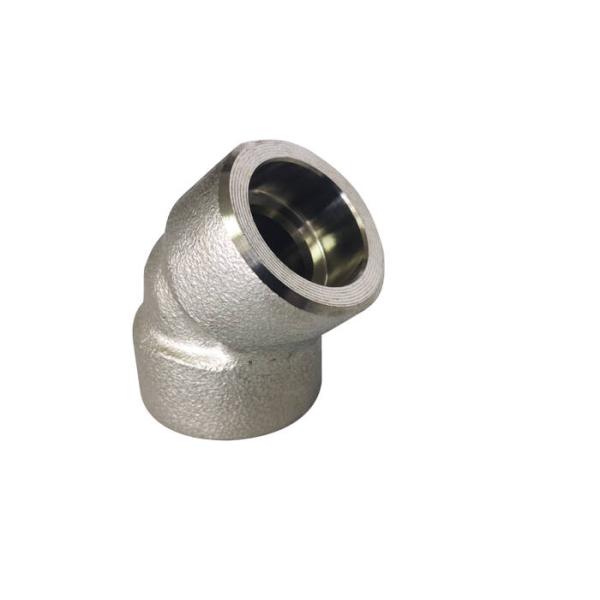

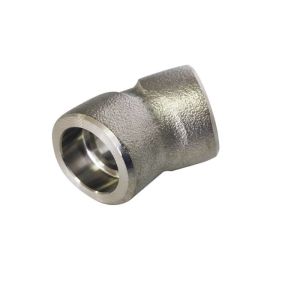

F304 45 Degree Elbow DN8 SCH160 Socket Pipe Fitting

F304 F316L F321 high pressure socket 45 degree elbow pipe fittings class 3000 A182

45 degree socket elbow is a kind of high-pressure elbow pipe connection fitting which is mainly formed by round forging or forging blanks, and then formed by lathe machining. It is a kind of forged socket series pipe fittings.
Specification form of socket elbow
According to the form, it is divided into 45 ° socket elbow and 90 ° socket elbow
According to common standards, the specifications of socket elbows are DN6, DN8, DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100. The commonly used order specifications are DN15 ---- DN50. If it exceeds the scope of this specification, it can communicate with customers to design and process drawings.
Socket elbow pressure level:
According to the pressure level: 3000LB, 6000LB, 9000LB or SCH80, SCH160, XXS
Common manufacturing materials of socket elbow
Commonly used raw materials for socket pipe fittings are carbon steel, stainless steel, alloy steel, etc.
Common grades of stainless steel are 304, 304L, 316, 316L, 321, 00Cr17Ni14Mo2, etc .;
Other materials: copper alloy, nickel alloy, etc.
Application field of socket elbow
It is mainly applicable to departments and fields that require high pressure and precise dimensions, such as petrochemical, medical and health, electric power, aerospace, military, firefighting, metallurgy, shipbuilding, gas, nuclear power, and environmental protection.
Precautions for use of socket elbow
The socket sizes of socket fittings are divided into two types, namely, A series (Ⅰ series) and B series (Ⅱ series), or imperial (ie A series) and metric (ie B series) . In addition, some standards directly specify the takeover size as A series. These standards include ASME B16.11 and SH3410 standards.

Production range:

American standards for pipe fittings implementation standards:
ASME / ANSI B16.9 factory-made forged steel butt welded pipe fittings
ASME / ANSI B16.11 socket welding and thread forging pipe fittings
ASME / ANSI B16.28 steel butt-welding small radius elbow and back bend
ASME B16.5 pipe flanges and flange fittings
MSS SP-43 forged stainless steel butt welded pipe fittings
MSS SP-79 socket welding reducer insert
MSS SP-83 socket welding and threaded union
MSS SP-97 overall reinforced socket for socket welding, thread and butt welding end

"Zheheng Steel" is a young diversified import and export enterprise in China, dedicated to providing high-end pipe fittings and solutions to the world, our factory (Zhejiang Kindly Pipe Fittings Company) is an old brand with more than 30 years of production experience , we have been able to independently provide reliable and e stainless steel and nickel alloy products to customers around the world. To achieve one-stop service from procurement-production-sales-after-sales. it is also positioned in the mid-to-high-end market. With strict quality requirements and perfect customer customization, more than 60% of the company's products have been sold to Northern Europe, North and South America, Taiwan, and about 40% since its establishment. Some products have been served by PetroChina, Sinopec, China National Nuclear Corporation.

The company has passed the ISO9001 certification of comprehensive quality management system, ISO14000 certification of environmental management system, OHSAS18000 certification of occupational ety and health management system; obtained special equipment manufacturing license [A1, A2 (1), B (2) level] , AD2000-W0 pressure equipment material certification of German TUV, PED 97/23 / EC EU pressure equipment material certification, Russian RTN and GOST certification; successively passed China (CCS), United States (ABS),

Germany (GL), Approved by the National Bureau of Shipping (LR), Norway (DNV), South Korea (KR) and other national classification societies.

"zheheng steel" produces and supply stainless steel 45 ° / 90 ° / 180 ° elbows, equal tees, reducer tees, crosses, concentric reducers, eccentric reducers, caps, flanges, flanges, etc., Non-standard pipe fittings are also produced according to customer requirements. The company strictly implements ASTM B16.9 / B16.5,ASTM A403 SH3408, SH3409, DIN2605, EN10253, BS1965, JISB2312 and other standards for production. The materials used are special steel materials such as 304H, 304L, 321H, 316L, 317L, 310S and duplex steel 2205/31803, 904L, WP347H, WP316Ti.

Available size range:

Outer diameter seamless (SMLS): 1/2 "-20", DN15-DN500, butt welding elbow (seam): 1/2 "-48", DN15-DN1200
Wall thickness: 1mm--60mm .SCH5S -SCHXXS

Material:
Stainless steel national grades: ASTM A403 WP304, 304L, 316, 316L, 321, etc.
European stainless steel grades: 1.4301, 1.4306, 1.4401, 1.4404, 1.4571

Duplex Steel:F51/S31803,F53/S32750,F55/S32760,F59/S32520,F60/S32205,254SMO/1.4547
Nickel Alloy: ASTM / ASME S / B366 UNS N08020 | N04400 | N06600 | N06625 | N08800 | N08810 | N08825 | N10276 | N10665 | N10675 | , Inconel 600 | Inconel 601 | Inconel 625 | Inconel 706 | Inconel 718 | Inconel X-750, Monel 400 | Monel 401 | Monel R 405 | Monel K 500

Production standard:
ASME / AISI B16.9, B16.28, ASTM A403, MSS SP-43: SA182, ASME.B16.11, EN / 1092
DIN 2605, DIN2609, DIN2615, DIN2616, JIS B2311, JISB2312, JISB2313, BS4504, BS4504, BS1560, BS10

Surface treatment: rolling sand, sand blasting, pickling,
Packing: wooden box, according to customer requirements
Minimum order: 1 piece
Delivery time: 1-45 days after receiving the deposit, depending on the quantity required.
Third party inspection: BV, SGS, etc. accepted
Test: direct reading spectrometer, hydraulic tester, X-ray detector, ultrasonic flaw detector, magnetic particle detector, etc.
Certificate: ISO9001. Pressure pipeline certificate, production license, PED, etc.
Productivity: 1800 tons per year
Products are widely used in papermaking, shipbuilding, petroleum, chemical, power, bioengineering, natural gas, sewage, construction, medicine, food (dairy) and other industries.
