    Speed 25-35pcs/min Multi-functional Stable Visual Positioning Machine For Positioning Rigid box, Bookcase.

    Ask Lasest Price
    Brand Name : Lishunyuan
    Model Number : LY-485C
    Payment Terms : L/C, T/T
    Certification : CE
    Price : USD 60,000.00- USD 70,000.00per/set
    Supply Ability : 10 sets/month
    Delivery Time : 15days
    MOQ : 1 set
    • Product Details
    • Company Profile

    Speed 25-35pcs/min Multi-functional Stable Visual Positioning Machine For Positioning Rigid box, Bookcase.


    Multi-functional Stable Visual Positioning Machine For Positioning Rigid box, Bookcase.

    02 product LY-485C.pdf


    Product Description

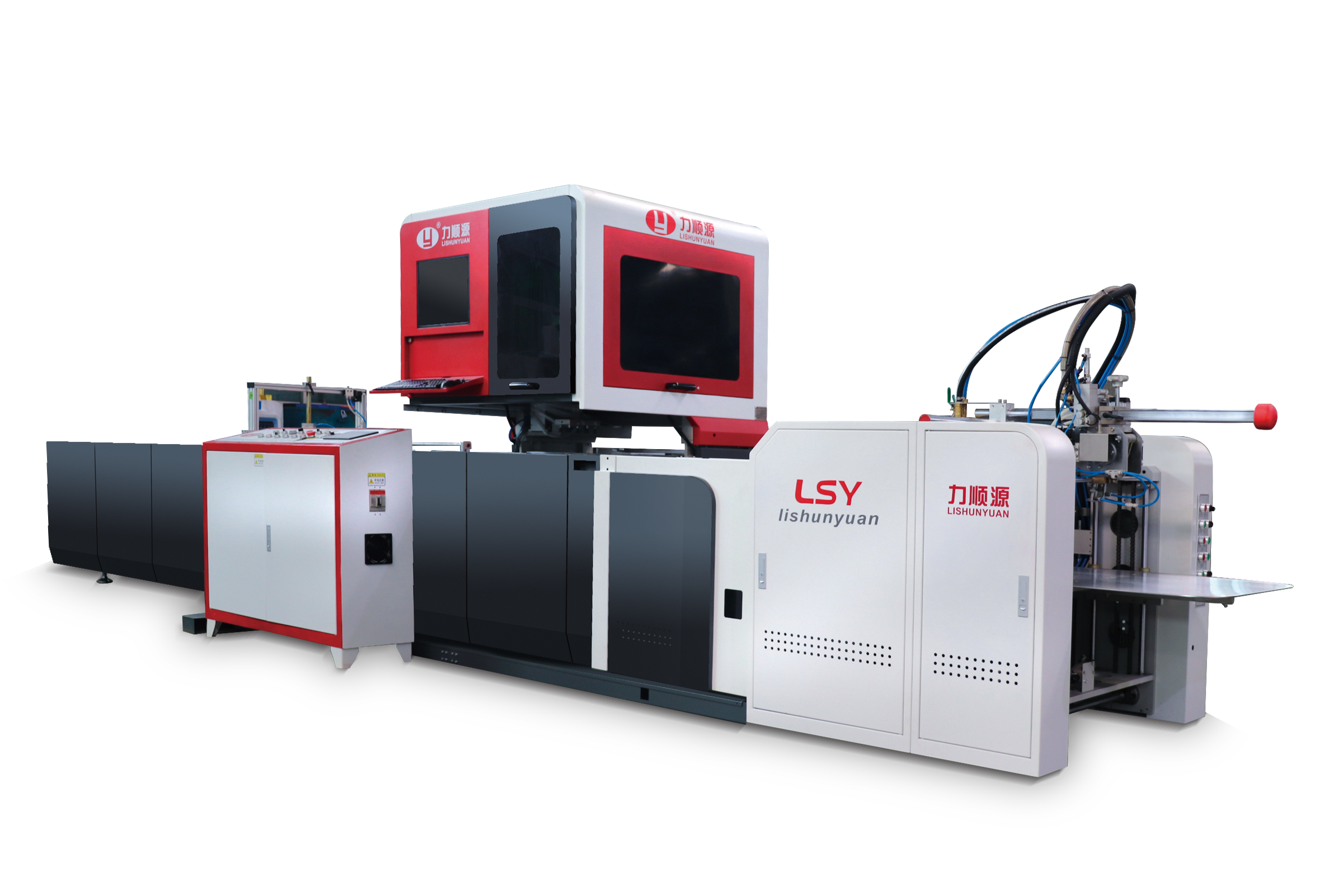

    A series of LY-485 products, the feeder feeding, gluing and conveyor belt use independent servo drive. The positioning part adopts YAMAHA robot arm, and camera imaging to position, that can realize high-accuracy in the rigid box, case maker, drawer box, irregular shape box, etc. It is suitable for a variety of high-quality gift box which need gluing, like Phone box, Cosmetic box, Jewelry box, Watch box, Wine box, Cigarette box, etc.



    Product Features
    Production speed fast & Multi-functional

    1, Using two industrial cameras with 5 million pixels,and YAMAHA robot arm to position,high positioning accuracy(±0.1mm)
    2, high- speed production , rigid box speed up to 25-35pcs / min; case maker and mounted speed up to 20-30pcs / min.
    3, Using an independent man-machine control system, transfer machine time is short, fast transfer version.

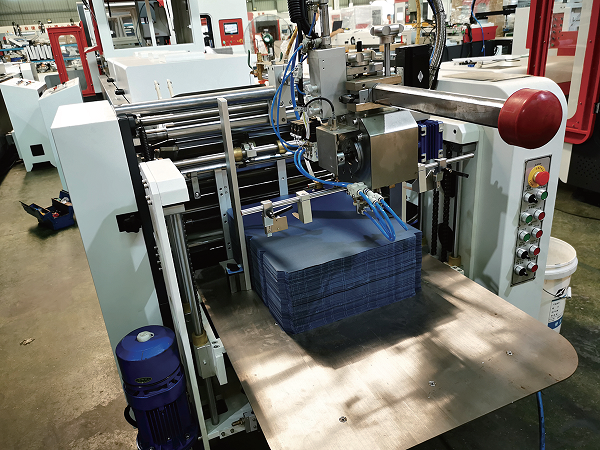

    4, Feeding stably, not easy to feed double sheets, reduce product rejection rate.
    5, Independent gluing & positioning module, can be optionally match with edge mounting machine, splicing board box making machine, pneumatic machine and case maker machine etc to product the production of case maker ,mounted ,rigid box and opening window. It is strong extensible in future products.


    Specification
    Paper size
    L 180-850mm
    W 95-600mm
    Finished box size
    L 45-600mm
    W 45-400mm
    H 10-120mm

    Case maker finished box size

    L 100-800mm
    W 80-400mm
    Paper thickness
    80-300g/m2
    Max.paper stacking height
    400mm
    Cardboard thickness
    1-3mm
    Production speed
    25-35pcs/min
    Positioning accuracy
    ±0.1
    Air pressure
    0.6-0.8MPa
    Glue tank capability
    50KG
    Power supply
    380V/50Hz/3phases
    Machine weight
    1500KG

    Machine dimension

    Case maker L7500*W2400*H2000mm
    Rigid box L7500*W1500*H2000m
