    Flat Panel Front Open Frame LCD Monitor For Self Service Vending Machine

    Ask Lasest Price
    Brand Name : Shinho
    Model Number : SL17
    Certification : CE, FCC, RoHS
    Price : Negotiation
    Payment Terms : T/T,Paypal,L/C, D/A, D/P, Western Union, MoneyGram,
    Supply Ability :
    Delivery Time :
    • Product Details
    • Company Profile

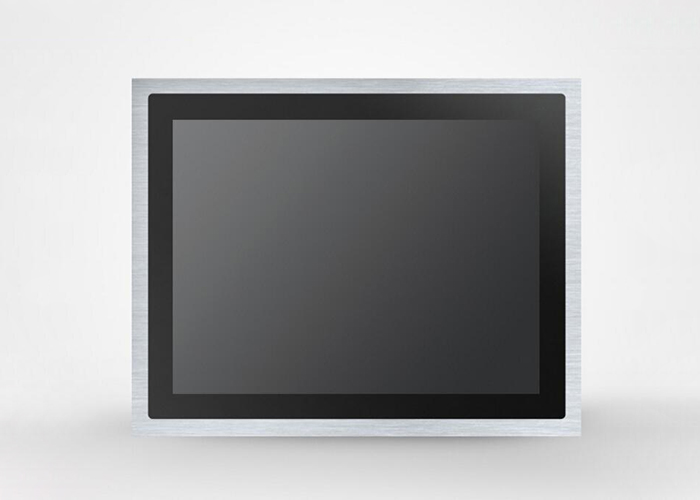

    Flat Panel Front Open Frame LCD Monitor For Self Service Vending Machine

    Flat panel front IP65 17 Inch Capacitive Touch Open Frame LCD Monitor


    Features


    1. 10MM aluminium alloy bezel, open frame kits for mounting in machine.


    2. 17 inch LCD industrial panel.


    3. 1000 nits,sunlight readable.


    4. front panel IP65 waterproof.


    5. Adopt multi-points PCAP touch panel , high sensitive and fast-response.


    6. High performance mainboard, 7x24 continuous operation.


    7. suitable for semi outdoor application or outdoor application.

    17 Inch Capacitive Touch Monitor Applications


    Outdoor kiosk


    laboratory


    Self service vending machine


    sports lotteries


    Customer Feedback Kiosk


    Automatic pay station


    Customization Service


    1. resistive touch,infrared touch


    2. can be produced with widescreen, 17.3'' ,1920*1080 resolution.


    2. Anti-glare.


    3. Auto dimming.


    4. 24V power with Phoenix terminal.


    5. Color: Silver ,Black ,White.


    6. Size also can be customized according to your machine.


    7.Can add your logo


    8.COM RS232 for touch.


    9. 400 nits for indoor use.


    10. Suitable with Wide temperature working environment.


    Specification


    Model:SL17
    LCD panel
    Panel size17"
    Resolution1280*1024
    Aspect ratio4:3
    Support Color16.7M colors
    Brightness (cd/m²)1000 nits,sunlight readable
    Contrast ratio1000:1
    View angle80°/80°/80°/80° (R/L/U/D)
    Touch panel
    Touchscreen TypeProject Capacitive Touch (10 points )
    Surface Hardness7H
    Luminousness90%
    Touch InterfaceUSB (RS232 optional)
    Touch response time2ms
    Working Life>50 million times
    Touch options(4 or 5 wires restive touch, IR touch optional)
    Signal Ports
    VGA1×VGA
    DVI1×DVI
    HDMIoptional
    Audio in/outoptional
    OSD
    OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select etc.
    Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
    Support OSWindows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
    Power Supply
    External Power SupplyAC 100 - 240V , 50-60Hz
    Working voltageDC 12V
    Power consumption≤35W
    Enclosure
    MaterialAluminum Alloy
    ColorBlack, white, Silver , color can be customized
    VESA mounting75×75mm/100×100mm
    IP gradeFront panel IP65 waterproof
    Operating Environment
    Temperature Rangeoperating: -10 to 60°C, storage :-20 to 80°C
    Relative humidityoperating: 10% to 80% , storage :5% to 90%
    Packing Details
    Net weight3.7kg
    Gross weight4.2kg
    Product Dimension42.74×35.6×5.15cm
    Packing size53*47*18cm
    AccessoriesPower adapter, VGA cable, USB touch cable,embedded screws,user manual,
    warranty card
    Other
    Mountingopen frame
    embedded mounting screws
    wall mounting brackets (optional)
    desk stand holder (optional)
    Warranty1 year warranty
    CertificatesCE, FCC, RoHS

    Pictures



    Drawing
