10.1'' Widescreen Fanless Embedded Touch Panel PC With 2 RS232 4
USB
Features
1. 10.1" LCD, 1366 x 768 Resolution, Widescreen.
2. Flat screen,front panel IP65 waterproof.
3. Industrial LCD panel, wide viewing angle, 80°/80°/80°/80°
(R/L/U/D),high nits, true color.
4. Adopt multi-points PCAP touch panel , high sensitive and
fast-response.
5. High performance motherboard, 7x24 continuous operation. with 2
x COM RS232,1x RJ45,4 USB.
10.1'' Embedded Touch Panel PC
fitness machines
Self-service inquiry machine
Self-booking machine
Automatic pay station
Parking payment machine
Electrical fire monitoring system
fitness training systems
Advantages
1. 10.1'' widescreen industrial LCD panel,1366*768 resolution.
2. Intel celeron J1900 CPU,fanless design,noiseless.
3. The PC is with aluminium alloy material, light weight, heat
dissipation.
4. Flat screen,front panel IP65 waterproof.
5. Fast shipment for sample,accept customization,No MOQ required.
CPU,RAM,Harddisk,Interfaces,resolution,size all can be customized.
Specification
| Model:SC101 |
| PC |
| CPU | Intel® Celeron J1900 , quad core , 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G,8G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo
quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2×USB 2.0,2×USB 3.0, 2 x COM RS232 |
| 1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel |
| Panel size | 10.1" |
| Resolution | 1366*768 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | ( 5 wire resistive touch, IR touch optional) |
| Power Supply |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure |
| Material | Aluminum Alloy |
| Color | Silver , Black, white, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | front panel IP65 waterproof |
| Operating Environment |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details |
| Net weight | 3.5kg |
| Gross weight | 4kg |
| Product Dimension | 28×17.8×6cm |
| Packing size | 44×37×17cm |
| Accessories | Power adapter,embedded screws,user manual,warranty card |
| Other |
| Mounting (options) | open frame |
| embedded mounting screws |
| wall mounting brackets (optional) |
| desk stand holder (optional) |
| Warranty | 1 year warranty |
Pictures

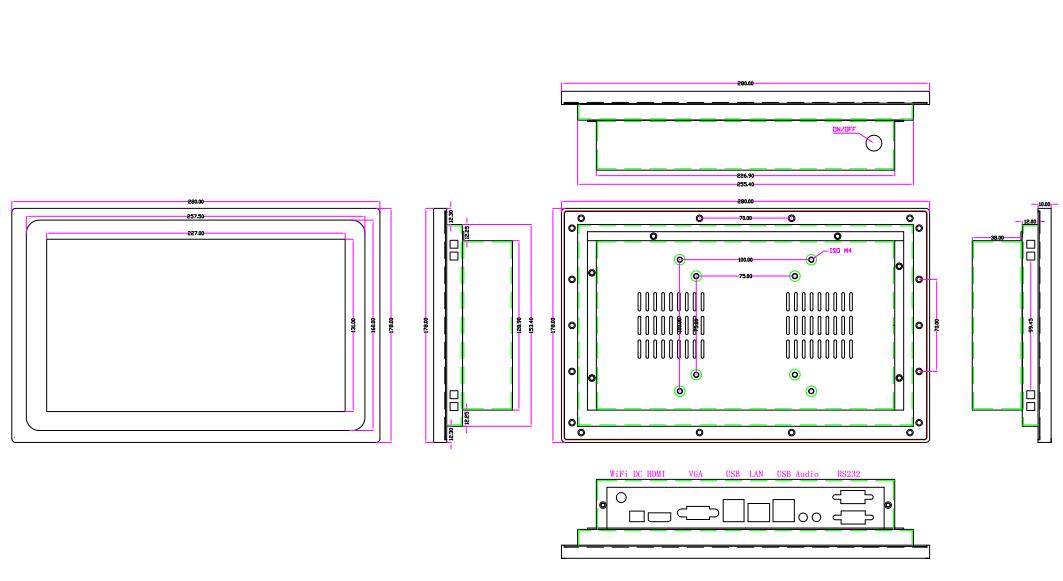

Drawing
