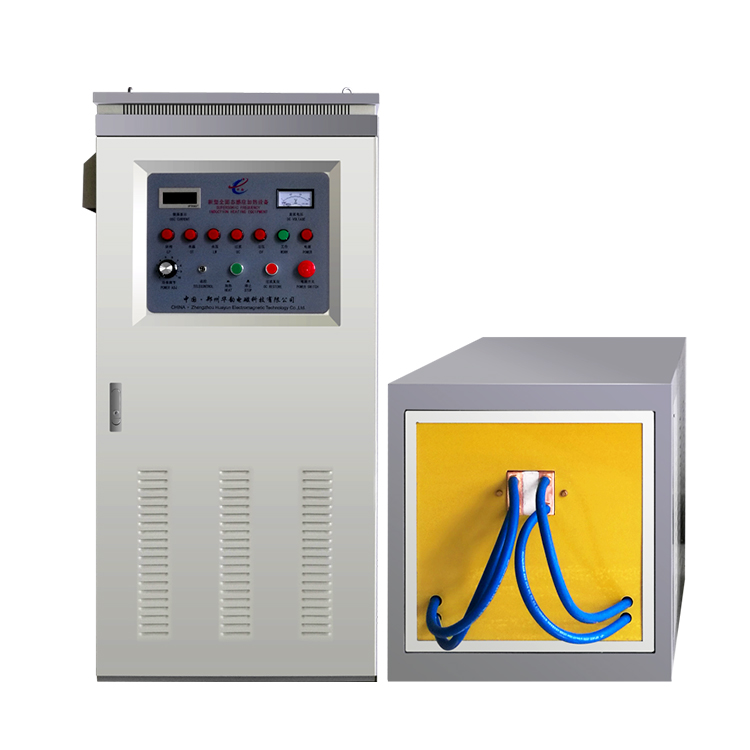

IRIS 50C Metal Forging Induction Heating Furnace High Frequency Induction Heater Furnace

High Frequency Induction Heating Furnace Metal Forging

1. Produce process is easy to operate, charge in and discharge flexibly, high degree of automation, realize produce on line.

2. Fast speed of workpiece heating, less oxidization or decarburization, high efficiency, and quality forging piece.

3. High control accuracy of workpiece length, speed, and temperature.

4. Good heat uniformity of workpiece, small temperature difference on core surface, high control accuracy.

5. Integration design of inductor and furnace body, quick-change connector for different inductors, easy to change and replace.

6. Omni energy conservation optimal design, low energy consumption, high efficiency, lower cost than coal furnace.

7. Fit environmental protection requirement standard, little pollution, and reduce labour intensity of workers.

Technical Parameter:

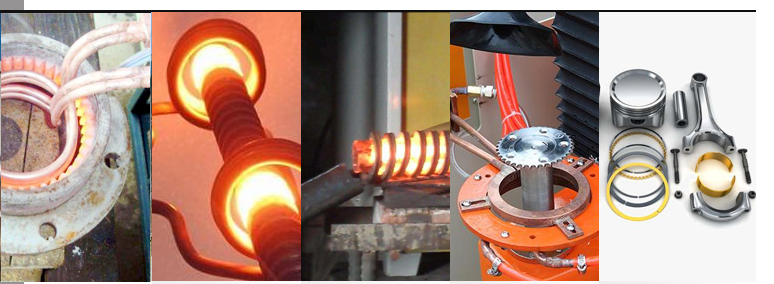

The scope of use of the High Frequency Induction Heating Furnace:

Diathermy :

• Reinforcing steel * steel plate * steel wire * steel belt and other online heat transfer operations.
• Round steel, hexagonal steel, drill rod, steel pipe, etc.
• Bolt * nut * flat steel and other heating red.

Quenching :

• Gear*axis and other surface scanning quenching.
• Line wheel* sprocket* and other disc surface quenching.
• Machine tool guide * Dovetail groove and other surface heat treatment.
• Steel pipe * concrete pump tube inner wall surface quenching, etc.

​

Equipment composition:

• There are three main components: 1. Heating power supply host 2. Water-cooled dry-type transformer 3. Customized contour sensor
• Note: The model of the heating power supply host is divided into: 50KW*80KW*120KW*160KW*200KW*300KW*500KW, etc.
• The composition of the transformer: consists of a high-temperature sintered magnetic core or a silicon steel sheet, and the number of turns is adjustable.
• Custom profiling sensor: Customized processing using round copper tube or square copper tube. The specific size is customized by the user to provide the workpiece size or reserved clearance.

​

Our service

Pre-sale service:

1. recommend the most suitable machine for customers, according to their requirements.

2. Inquiry and consulting support.

3. Sample testing support.

4. View our Factory.

In-sale service:

1. Strictly manufacture the machine, according to relevant technical standards.

2. Take run test, according to relevant equipment test run regulations.

3. Strictly check up the machine, before delivery

4. Delivery on time.

After-sale service:

1. 12 months warranty period

2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we provide replacement parts after detecting the faults.

3. We will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.

Please note:The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.

Zhengzhou Iris Electromechanical Equipment Co., Ltd. is an excellent supplier established in the Central Plains region, adhering to the enterprise spirit of "professional foreign trade, professional heating" and contributing to the overseas export of China's industrial heating equipment. Our business scope includes: KGPS series thyristor intermediate frequency heating equipment (steel shell melting furnace, aluminum shell melting furnace, heating furnace), two SCR series, parallel power supply, IGBT MF, HF super audio heating equipment (melting furnace, forging furnace, Quenching furnace, welding machine, heating furnace), resistance furnace, CNC quenching machine tool, cooling system and auxiliary transformer and other equipment.

Zhengzhou Iris Electromechanical Equipment Company was established in 1989 and is located in Zhengzhou City, Henan Province, China. It has two standardized modern workshops and an experimental building with a construction area of ​​8,000 square meters. There are a large number of professional technical research engineers, including 12 technical engineers and 5 senior engineers.

Certificate

Work site example

The products of Zhengzhou IRIS Electromechanical Equipment Company have been exported all over the world, such as Australia, Russia, Italy, Vietnam, Singapore, Indonesia, the United States, South Korea, Chile, Romania, Saudi Arabia, Nigeria, Kenya, and more than 10 countries and area.
