    1mA 1000A Ammeter Recorder Wireless Current Clamp Meter

    Ask Lasest Price
    Brand Name : GFUVE
    Model Number : GF2011 1000A
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 2000Set/Month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    1mA 1000A Ammeter Recorder Wireless Current Clamp Meter

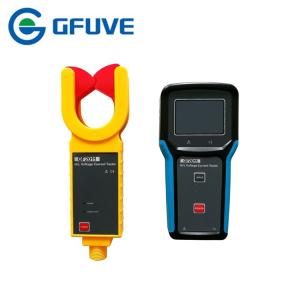

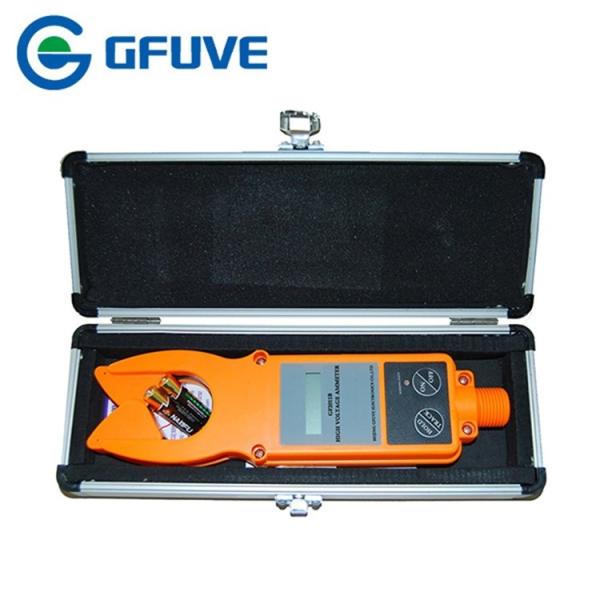

    GF2011 1000A High Voltage wireless Current Clamp Meter for Ammeter Recorder


    High Voltage Meters measure AC and DC voltages of up to 30kV with high accuracy. The meter input impedance is as high as 1000 M ohm, making the meter suitable for measurement of voltages of high source impedance circuits.
    Current transformer clamp meters only measure AC current. This is the original type of clamp meter. Hall Effect clamp meters can measure both AC and DC currents. Most modern clamp meters are Hall Effect clamp meters.A clamp meter is an electrical tester that combines a basic digital multimeter with a current sensor. Clamps measure current. Probes measure voltage.

    FEATURES

    • Adopt latest CT technology and integrated mask digital technology
    • Have peak value maintaining, data maintaining, data memory function
    • Easy to install and remove with power on
    • Insulation rod has the characteristics of moisture resistance, high temperature resistance, impact resistance, bending resistance, high insulation and scalability.
    • Can accurately measure 0.00mA-1200A current or leakage current
    • Can test high and low voltage changing ratio, respectively test the first loop and secondary loop high and low voltage current, and then obtain the voltage change through manually calculation.
    • Wireless transmission distance 30m, can transmit through building barriers
    • Integrated design ensures uninterrupted year-round high precision, high reliability and high stability test.

    PARAMETERS

    Electrical parameters
    Power supplyAmmeter: DC6V Alkaline Dry Battery (1.5V AAA X 4),
    Receiver: DC7.5V Alkaline Dry Battery (1.5V AA X 5),
    working 10 hours
    Test modeClamp CT, integral approach
    Transmission modeWireless transmission, the maximum distance of straight line transmission is about 30m
    Display mode4 bit LCD display, with backlight function
    Sampling rate2 times/second
    Measurement scope0.00mA-1200A (50/60Hz automatic)
    Resolution0.01mA
    Shift0.00mA-1200A automatic shift
    Accuracy (23°C±5°C, below 70%RH)0.000mA-120.00A: ±1%±3dgt
    120.00A-1200.0A: ±1%±5dgt
    Line voltageBelow 69KV line test (with 5 insulation rods operation)
    Data memory99 sets
    Automatic shutdown15 minutes after boot
    Battery voltage<4.8V alarm active
    Insulation strengthAC 100kV/rms (between the 5th insulation rod and high voltage Ammeter core)
    StructureAnti-drip type II
    Safety provisionsIEC1010-1, IEC1010-2-032, Pollution Class 2, CAT III (600V), IEC61326(EMC standard)
    Mechanical parameters
    LCD dimensions (mm)47×28.5
    Meter dimension (LxWxH) (mm)87×262×37
    Meter weight2.5kg (including insulation rod and battery, tester 335g)
    Clamp dimension (mm)Ф50
    Insulation rod dimensionφ50mm, 1m/piece (5m)
    Environmental conditions
    Working temperature-25°C to 40°C
    Working humidityBelow 80%Rh
    Storage temperature-10°C to 60°C
    Storage humidityBelow 70%Rh
    Accessories
    Ammeter1 pc
    Receiver1 pc
    Ammeter box1 pc
    Telescopic insulation rod (5m)1 pc
    BatteryRechargeable Alkaline Dry Battery(AA X 5+AAA X 4)
    ModelDescription
    GF2011Wireless
    GF2011BBase Display
