    Horizontal 0.75KW 3150mm Wear Plate Cladding Welding Machine

    Ask Lasest Price
    Brand Name : JINHUA
    Model Number : JH-M800
    Price : USD+2000-50000+Unit
    Payment Terms : T/T
    Supply Ability : 30+Unit+per month
    Delivery Time : 15-60 working days
    • Product Details
    • Company Profile

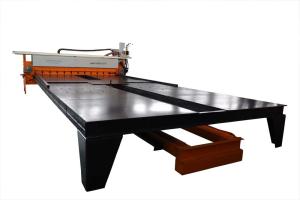

    Horizontal 0.75KW 3150mm Wear Plate Cladding Welding Machine

    4 Torch Wear Plate Welding Machine, Multi-Torch Wear Resistance Plate Overylay Welding Machine


    1. Product Introduction

    Wear resistant steel plate is using special high hardness open arc wire to overlay uniformly resistant alloy cladding layer processing, to protect the surface from ordinary carbon steel plate. Its working principle is the work piece is placed on the work piece carrier; welding arm with open arc welding torches on gantry frame move horizontally, up and down; so that the welding nozzle head aligning on the welding seam, and then by the gantry shelf moving on the rail as straight line, weld automatically. This machine can weld four welding seam at the same time.


    2. Basic Configuration

    Frame TypeHorizontal
    Guide Space591mm
    Guide Length3150mm
    Guide ModelLDG122 Pcs
    Drive ModeServo Drive
    Machine SystemTaiwan Taian 1 set
    Electric Control Unit1 set
    Double Drive Pallet Pushing Machine Platform1 Unit
    Pallet Pushing Machine0.75KW
    Pallet Pushing Reduction GearHorizontal Reduction Gear
    Hydraulic Power Unit1 Unit
    Hydraulic Cylinder12 Unit
    Hydraulic Pipeline12 Set
    Wire Feeder8 Set
    Double Wire Torch Head (Double Wire Welding for Single Welding Thickness Greater Than 6mm)4 Set
    Lateral Drive SystemTECO 1 Set
    Longitudinal Deceleration SystemTECO 1 Set
    Transverse Mechanical DrivePrecise Guide & Pinion and Linear Guide 1 Set
    Longitudinal Mechanical DriveHorizontal Double Drive (Guide & Pinion + Code) 1 Set
    Horizontal Cable DriveEngineering Drag Chain 1 Set (Metal)
    Longitudinal Cable DriveDrag Chain 1 Set
    Main Frame ColorSea Blue
    Pallet Pushing Machine ColorSea Blue
    Automatic Deeding Device (Double Feeding Pallet)1 Set
    Wire Alignment System2 Sets
    Machine Dust Control Unit (Connecting to the Reserved Port and Hose of the Centralized Dust Removal Pipeline of the Client)1 Set

    3. Technical Performance

    Welding Width≤1550mm
    Welding Length≤3200mm
    Idle Travel Speed0-9800mm/min
    Allowable Material for Overlay WeldingQ235 Q345 Mild Steel
    Wear Layer Overlay Welding Thickness2-20mm
    Wear Layer Overlay Welding Speed100-300 mm/min
    Elevation of Overlay Welding Torch0-100mm
    Lift Mode of Overlay Welding TorchManual Mechanical Adjustment
    Precision Standard of Whole Machine/Conforming to JB/T5102-1999
    Linear Positioning Accuracy±1mm/5m
    Velocity Error±2%

    4. Pictures




    Quality Horizontal 0.75KW 3150mm Wear Plate Cladding Welding Machine for sale
