High Precision Automatic Voltage Regulator AVR Series Measuring and
Test Equipment

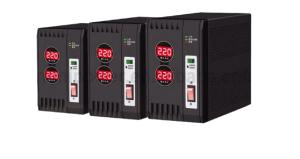

LED/LCD Display 1000VA to 5000VA Single Phase Voltage Regulator
Single Phase High Precision AVR Series with advantages of high
precision of voltage regulator
This series is single phase high precision automatic voltage
regulator(AVR)with advantages of high precision of voltage
regulator, no waveform distortion and convenient operation and
maintenance, reliable performance, etc. It has delay function and
protections of over&low voltage, overload, high temperature,
short circuit.
Feature:
*Advanced microcomputer digital control which can guarantee stable
AC output in an instant of high or low voltage.
*Effectively suppress and purify short high-voltage spike and high
frequency noise.
*With reliable protections of over&low voltage, overload, high
temperature and short circuit.
*According to user’s requirement and situation of the electric
equipment, long or short delay function is selectable while AVR is
turning on.
| Model | AVR-600VA | AVR-1000VA | AVR-1500VA |
| Rated Power | 600VA | 1000VA | 1500VA |
| INPUT |
| Input Voltage Range | 140-280Vac |
| Frequnecy | 45-65Hz |
| OUTPUT | |
| Output Voltage Range | 220Vac±10% |
| DISPLAY |
| LED Digital Display Status | Input voltage ,output voltage |
| LED display Status | Normal,delay,Fault |
| PROTECTION |
| ProtectionsOvert& low voltage,over load ,high temperature,short
circult protection |
| PHYSICAL |
| Unit Dimensions(mm) | 205*108*157.5 |
| Net Weight(kg) | 2.3 | 2.9 | 3.6 |
| ENVIRONMENT |
| Enviroment of performance | Temperature 0℃-40℃,Humidity 20%-90% |
| Noise | Less than 40dB |
Production Instruction
This Series is single phase high precision automatic voltage
regulator (AVR) with advantages of high precision of
voltage regulator,no waveform distortion and convenient operation
and maitenance,reliable performance,etc. It
has Delay function and protections of over& low
voltage,overload,high temperature,short circuit.
Field of application
Applicable for equipment of computer network,household electrical
appliances,measuring and test equipment,calibration stand in
factory,etc.
