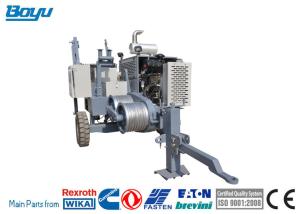

Transmission Line Stringing Equipment TY60 Hydraulic Puller Cummins
Engine
TY60 Hydraulic Puller Together with tension machine, this model allows for the tension
stringing of 220kV lines in mountainous and hilly areas and can be
used for the traction stringing of OPGW or ADSS cable in various
terrains. |
Characteristics Bull-wheel diameter: 450mm Groove number: 7 Max rope diameter : 18mm Max diameter of rope reel: 1400 Total weight: 3500kg Overall dimension (length*width*height): 3800×2100×2300mm | Performance Max intermittent pull: 60kN Max continuous pull: 50kN Speed at max pull: 2.5km/h Max speed: 5km/h Pull at max speed: 25kN |
Engine Diesel 77kw(103hp) Cooling system water Electrical system 24V |
Main configuration Engine: Cummins hydraulic pump: German Rexroth Main motor: German Rexroth speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth | Hydraulic Transmission Closed hydraulic circuit for step less speed variation in both
rotating directions. This machine is provided with a pull
pro-setting system that maintains the pre-set pulling value (also
when the speed is reduced to "0") by automatically adjusting the
operation speed according to the friction and unexpected loads
which may occur. |
Configuration Hydraulic dynamometer with set-point and automatic control of
maximum pull Hydraulic oil cooling system Control instruments for hydraulic system and diesel engine On board reel winder with automatic level wind, suitable for
standard reel mod. 1100 and 1400 Hydraulic front stabilizer Grounding connection point | Additional Devices Lighting system for the trailer Hydraulic rope clamp for reel change Swivel guide rope roller Trailer for towing at max speed of 30 km/h Extra shaft Digital speed and meter counter (extra charge) |
Company Profile
Boyu Electric Power Machinery was established in 1993, a high-tech
enterprise in China, We are specializing in R & D, manufacturing
and sales of kinds of transmission line construction machines and
tools such as hydraulic puller, tensioner, conductor pulleys,
anti-twisting galvanized steel rope as well as providing
accessories and technical service for customer. After years
efforts, Boyu Electric Power Machinery has developed as one of the largest stringing equipment and tools
manufacturer in China which has more than 200 varieties kinds of
goods now.
Boyu Electric Power Machinery have more than 15 years rich experience in this field and provided
more than 1000sets equipment for the customer in Power System, Our
products are very popular in China, and main customers from STATE
GRID, CHINA POWER etc. Besides, we expanded our business to
International market, Australia, UK, Turkey, Mexico, Peru, Brazil,
Egypt, Sudan, Kenya, Angola, India, Pakistan, Burma, Philippines
etc.
Our products have been used in 500KV/330KV/220KV/110KV and below
voltages transmission line stringing project, providing perfect
products and after sales services for safe operation of electrical
network. This year, our R&D team is preparing for ultra-high
voltage project 2015 in China.
There are 158 employees in Boyu, including 16 engineers. There are
also more than 40 sets of processing equipment, consist of 35 sets
mechanical processing equipment (including lathe, filing machine,
planer, grinder, ect), 2 sets vertical test equipment.
Boyu Electric Power Machinery used about 10% of term of accounting’s value of sale in every year
for R&D. Our company developed many types of product to content
requirement of customers, and Product won the customers high
praise.
Boyu Electric Power Machinery insist cooperation culture of Quality as life, reputation as
fundamental, and engage in providing reliable and safe operation of
power network for the customers. Our company works for the
development of electric power industry and strives for the
transmission line construction machinery to catch up with the
international level. Yixing Boyu Electric Power Machinery Co., Ltd
is willing to create a friendly cooperation relationship with
customers to seek development and create prosperity.
