    LC PC Pigtailed 8CH 1611nm CWDM Mux Demux Splitter Module

    Ask Lasest Price
    Brand Name : GEZHI or OEM
    Model Number : 8CH-1471
    Certification : CE RoHS,ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000Channel per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    LC PC Pigtailed 8CH 1611nm CWDM Mux Demux Splitter Module


    1471~1611nm 1x8 CWDM Mux Demux splitter module LC/PC pigtailed


    GEZHI 1x8 CWDM Mux Demux splitter module is ABS box package with LC/PC pigtailed type. The wavelenght of 1x8 CWDM Mux Demux Splitter Module is 1471~1611nm also with a Upgrade port for for Future Bandwidth Increasing. The CWDM Mux Demux Express port makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.


    Features

    high channel isolation

    Low insertion loss

    Completely passive, no power& no cooling required

    Protocal and rate transparent for applications up to 10Gbps


    Applications

    WDM network
    Fiber optical amplifier

    Access Network

    Line monitoring

    Telecommunication


    Specification

    Parameter8+1CH Mux or Demux
    Center Wavelength (nm)ITU, ITU+1
    Passband (nm)ITU±7.5
    Operating Wavelength (nm)1471~1611nm
    Channel Space (nm)20
    Fiber TypeSMF-28e or customer specified
    IL (dB)<2.5dB
    Isolation(dB)Adjacent Channel30
    Non-Adjacent Channel45
    PDL (dB)0.2
    PMD (ps)0.1
    Return Loss (dB)45
    Directivity (dB)50
    Maximum Optical Power (mw)500
    Operating Temperature (℃)-10~+70
    Storage Temperature (℃)-40~85
    ConnectorLC/UPC connetor
    BOX Package (mm)ABS Box

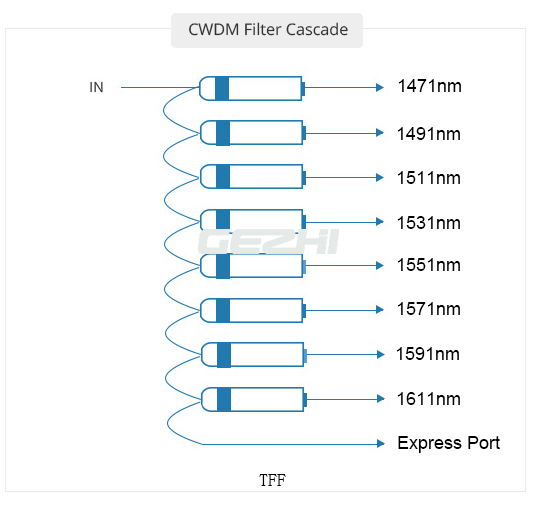

    1x8 CWDM Filter cascading

    1x8 CWDM, 1471~1611nm, ABS box:100x80x10mm, 2mm cable, 1meter, LC/UPC



    8+1CH CWDM Mux Demux splitter in ABS box
