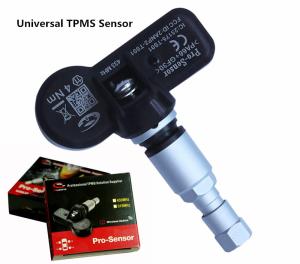

Universal TPMS sensor Programmable Sensor with 315MHZ and 433MHZ
Pro-Sensor
Pro-Sensor is a universal TPMS Sensor that is developed by our
company, to match and replace the original Sensor. Using Freescale chip and automotive components, the introduction of
advanced production technology, follow the strict quality control
system, with high precision, high stability, high reliability and
so on. Configuration and activation by wireless, and can replace
the original plant sensor perfectly.
Specifications
Battery life: ≥ 5 years
Operating temperature: -40℃~105℃
Storage temperature: -40℃~125℃
Operating humidity: <90%
Frequency: 315MHz
Pressure range: 0-800kpa
Pressure accuracy: ±10kps
Temperature accuracy: ±3℃
Power level: 8dBm
Battery voltage: 3.0V
Waterproof rating: IP67
Dimensions: approx 71.3mm*57mm*21.3mm
Weight(without valve stem): 16.5g
Feature
1.The original sensor can be replaced directly by copying the ID,
and the vehicle does not need to learn the new ID again.
2.The installation angle is adjustable to ensure that more wheels
are available.
3.Adapt to a variety of complex environments, such as:high-speed,
high and low temperature, moisture, acid, salt spray and so on.
4.Compatible with most of the models on the market, save inventory
costs,
5. Wireless fast modifies the ID to avoid repeatedly dismantling
the tire.
