    Multi Piece Butterfly Hermetically Sealed Electronic Packages

    Ask Lasest Price
    Brand Name : JOPTEC
    Payment Terms : T/T
    Supply Ability : 5000000 PCS/Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

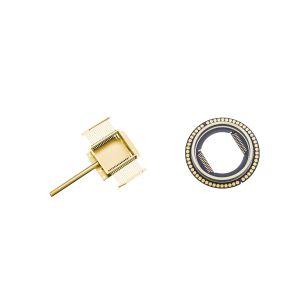

    Multi Piece Butterfly Hermetically Sealed Electronic Packages

    Product NameMulti-piece flatpack butterfly metal package for HIC custom hermetic package
    Product ModelJOPTEC

    Finish: Shell and pins are plated Ni 1-11.43um and plated Au≥1.0um
    Insulation Resistance:500V DC resistance between single glass sealed pin and shell≥1*1010Ω
    Hermeticity: Leak rate≤1*10-3Pa.cm3/s

    Material:

    1FrameKovar(ASTM-F15)
    2Glass insulatorBH-A/K
    3Lead FrameKovar(4J29)
    4The brazing frameHLAgCu28
    5BaseKovar(FeNiCo)
    6Cover42alloy

    Product Features
    1. Flat metal package use shell meterials such as Kovar FeNi42 CRS Kovar+Wcu.The separate structure adopts base material such as Wcu,OFC,OFHC or CRS1010;
    2. Customer can choose the height of shell.
    3. According to shape of cross-section we distinguish leads as rectangular section chemical corrosion lead and cyclinder lead which are choosen by customers.
    4. The method of sealing cap use reliable parallel sealing welding.
    5. Lead cross the sidewall and customers choose the shape and height of leads.
    6. The position of groud lead is decided by customer.
    7. Lid is designed to fit the dimension of shell.
    8. The performance of shell would be provided after electroplating.Customers also choose finish to be fully plating Au or selective plating Au.
    9. All index of parameter conform to GJB548
