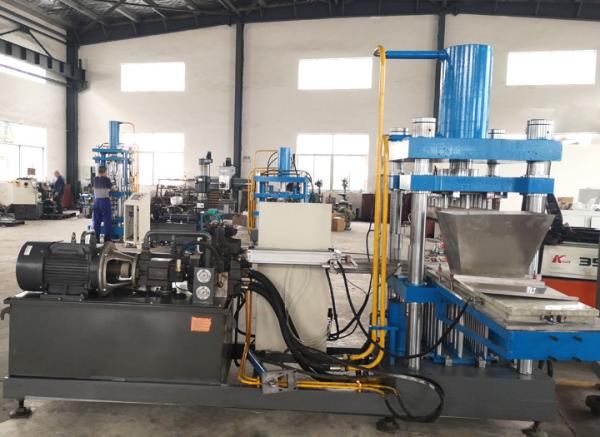

100tons Hydraulic Press For Animal Licking Block / Animal Mineral
Salt Lick Block Press Machine For Animal Feeding
Features of Salt Block Press Machine:
1. This machine is designed for pressing round tablets from various
kinds of granular materials. It is primary machine to fit batch
production of tablets.
2. During operation, the speed of the turret rotation, the depth of
the filling material and the thickness of the tablets can be
adjusted.
3. The mechanical buffer unit will prevent punches and apparatus
from overload damage.
4. A powder suction unit is attached to take in the residual powder
can be eliminated and the collected powder material can be reused.
5. With oil seal ring on punches, prevent oil from pollution tablet
and powder leakage.
6. With dust seal ring on punches, avoid powder leakage from turret
table.
7. It is equipped with variable frequency speed control device for
electrical control, convenient operation, steady running, it is
safe and accurate.
8. It is equipped with overload protection device, when pressure
overload, it can stop automatically.
Technical Parameters of Salt Block Press Machine:
| Production Capacity | 4-6molds/min(the actual speed according to product process
requirement) |
| Working Pressure | ≤100T(can be bidirectional compress) |
| Working Stroke | Up stroke≤250mm,Down strokes≤150mm(1. step-less adjustment 2.
Customized based on customer’s request. ) |
| Filling Depth | 150mm(1. step-less adjustment 2. Customized based on customer’s
request. ) |
| Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
| Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
| Motor Power | 11kw 15kw(Servo) |
| Weight&Size | Approximately:3200kg 2500mm*1100mm*2300mm(L*W*H) |
More Choices of Salt Block Press Machine:
| Model | LS-25 | LS-45 | LS-60 | LS-100 |
| Working pressure | 25T | 45T | 60T | 100T |
| Ascending stroke | Up:250mm | Up:150mm | Up:250mm | Up:250mm |
| Down:150mm | Down:150mm | Down:150mm | Down:150mm |
| Feeding height | 150mm | 150mm | 100mm | 150mm |
| Mould | Customized | Customized | Customized | Customized |
| Max tablet diameter | 200mm | 200mm | 200mm | 200mm |
| Output | 3-4 cycle per minute | 3-4 cycle per minute | 3-4 cycle per minute | 3-4 cycle per minute |
| Motor power | 5.5kw/7.5kw | 7.5kw/9kw | 7.5kw/11kw | 11kw/15kw |
| Machine size | 1.8*0.85*1.8M | 2.2*0.95*2.05M | 2.4*0.85*2.1M | 2.5*1.1*2.3M |
| Machine Weight | 1600kgs | 2000kg | 2800kg | 3200kg |
Using Guides of Salt Block Press Machine:
1. Frequently check the quality of the tablet during use. If there
is the raw edge, wale and uneven thickness, check the die in time.
Do not use the nonconforming products lest the machine is damaged.
2. Do not use the wet materials in order to avoid destroying
machine.
3. In case of tablet skipping, stagnation and other failures, do
not touch with hand to avoid injury.
4. When refilling the oil, do not make the oil overflow or even
drop on the surface of the working bench or around the die lest the
quality of tablets is affected.
5. When switching on power supply, make sure the flay wheel
rotation direction is the same as the indicated. Do not run in
reverse direction to prevent damage to the parts.We provide integrated engineering solution for worldwide
pharmaceutical and medical factory include the clean room,
auto-control and monitoring system, pharmaceutical water treatment
system, solution preparing and conveying system, filling and
packing system, automatic logistics system, quality control system
and central laboratory and etc.
Jiangsu Jintan Lishen Machinery Co., Ltd, is a comprehensive private technology enterprise that integrates
the functions of tablet press machine research, design, develop,
manufacturing and sales. We always uphold the business philosophy
of "quality first, promise to service,honest management, satisfy
customers' needs" and "Pursue perfection, keep improving, and
constantly innovating. High-quality after-sales service and
technical follow up works remove concerns of most customers.
We has been engaged in the research,development and manufacture of
non-standard tablet press machine for years. Our tablet press
machine have broad scope of application. At the same time, offer
molding manufacturing service. We have accumulated a lot of
material tablet compressing experience. Besides offering tablet
press machine and mould, we also can give some technical support on
tablet press machine & mould for customers.
Application of Salt Block Press Machine:
| Agriculture: | Feed block, fertilizer tablets, animal food, animal salt lick |
| Electronics Batteries: | Thermistor, integrated circuit components, carboniferous brush
films... |
| Health Products: | calcium, propolis tablets, effervescent tablets, bath salts
tablets... |
| Chemical: | disinfection tablets, insect repellent films, camphor ball,
detergents, fragrances, catalysts, metallurgy powder, glass powder,
ceramic powder products, art powder, sand round block, magnetic
materials... |
Services of Salt Block Press Machine:
After customer received tablet press machine, we will arrange our
technician go to your factory to help you debug the machine and
also train your workers how to use it, if need. The warranty for
this machine will be one year, we will provide vulnerable parts and
door-to-door service by free within one year.
The entire hydraulic system is with higher stability, so it avoid
oil leaking and polluting, It also can ensure the pressure is
enough, and action is synchronized for continuous. Working part and
the separation of part of the hydraulic system is independent,
non-polluting, automatic heated, so it can make the machine more
durable.
We provide integrated engineering solution for worldwide
pharmaceutical and medical factory include the clean room,
auto-control and monitoring system, pharmaceutical water treatment
system, solution preparing and conveying system, filling and
packing system, automatic logistics system, quality control system
and central laboratory and etc.
FAQ of Salt Block Press Machine:
1. What about your tablet press machine quality?
Our factory has more than 10 years experience in mechanical
processing; all our machines already get ISO9001 certificate;
already exported into many countries and areas; already got
customer’s good reputation.
2. How can you ensure the machine’s quality after we ordered?
Before the delivery, we will send you machine’s pictures and
videos, or you can come to factory and check the tablet press
machine by yourself, or by the third party inspection organization,
contacted by your side.
3. What about your installation service and sales service for your
tablet press machine?
1> Guarantee is one year, we will supply spare parts or send
engineers to your side if you need, we will give you service
anytime, 24 hours, 7days.
2> We already prepare technical manual and operation video to
show our customers, then it will be easy to install and use the
machine.
3> It is free to train your worker in our factory or in your
side or by video.
