    ERW 3.0mm Tube Mill Machine For High Frequency Welded Tube

    Ask Lasest Price
    Brand Name : DINGBO
    Model Number : DBTM
    Certification : CE, SGS, ISO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets per month
    Delivery Time : within 90 days after receiving the deposit
    • Product Details
    • Company Profile

    ERW 3.0mm Tube Mill Machine For High Frequency Welded Tube

    ERW Welded Tube Mill Straight Seam Welded Pipe High Frequency Welded Tube


    DB219 ERW Welded Tube Mill


    Product Descriptions

    Welding pipe machine line is complete equipment for welding steel pipes. It rolls the strip or plate then welds the tube to steel pipes by welding or submerged arc welding. Welded pipe making machine is composed of uncoiler, leveling machine, butt welder, loop, straightening machine and high frequency equipment.


    Working Flow

    {steel strip} — un-coiler — (opener & straightener & pincer & leveler) — strip-head shearer & butt welder station — vertical cage accumulator or horizontal spiral accumulator loop — forming M/C (main driving unit + flattening unit + breakdown section + fin pass section +seam guiding stand + high frequency induction welding system + squeeze welding roller stand + outside scarfing unit + horizontal ironing stand) — emulsion cooling section — sizing M/C (main driving unit + sizing section + speed testing unit + straightener + pull-out stand) — CNC flying saw under computer control — conveyor table.


    Product Parameters

    No.ItemData
    1Pipe O.D(round)76mm~165mm
    Pipe O.D(square)60*60-130*130-100*160mm
    2Thicknessround 2.0-5.5mm (square tube 2.0-4.5mm)
    3speed10M/min~40M/min
    4length6M~12M
    5Maximum coil weight≤8T

    Machine Components

    No.Commodity & DescriptionQuantity
    1Double Head Decoiler1 set
    2Cutting and Welding machine1 set
    3Vertical Accumulator1 set
    4Forming, welding and sizing unit1 set
    5Main drive gear box1 set
    6Cutting saw1 set
    7Run-out table1 set
    8150kw tubes high frequency and DC dragger1 set
    9Control System1 set

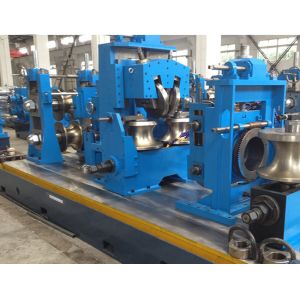

    Machine Picture


    Application

    Carbon Steel Erw Tube Mill,Tube Mill Line ,Erw Pipe Mill mainly produces stainless steel pipes used for decoration such as furniture, hand railing, household electric applicance, curtain rail, etc. The machine not only can make round pipe, but also square pipe, rectangle pipe, oval pipe and other irregular pipe as well.
