Zinc Plated Single Sphere EPDM NBR Rubber Expansion Joint

    Buy cheap Zinc Plated Single Sphere EPDM NBR Rubber Expansion Joint from wholesalers

    Buy cheap Zinc Plated Single Sphere EPDM NBR Rubber Expansion Joint from wholesalers
    • Buy cheap Zinc Plated Single Sphere EPDM NBR Rubber Expansion Joint from wholesalers
    • Buy cheap Zinc Plated Single Sphere EPDM NBR Rubber Expansion Joint from wholesalers

    Zinc Plated Single Sphere EPDM NBR Rubber Expansion Joint

    Ask Lasest Price
    Brand Name : Sunval
    Price :
    Payment Terms : L/C, T/T
    Supply Ability : 20000pcs/month
    Delivery Time : 20days
    • Product Details
    • Company Profile

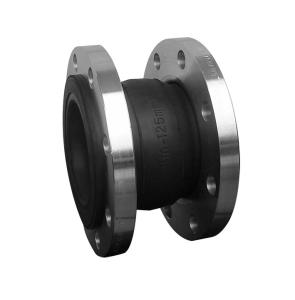

    Zinc Plated Single Sphere EPDM NBR Rubber Expansion Joint

    carbon steel Zinc plated DIN EPDM/NBR rubber expansion joint


    1. high quality Single Sphere Carbon Steel Zinc Plated Rubber Expansion Joint, rubber expansion joint

    Zinc plated rubber expansion joint, rubber expansion joint with EPDM bellow,factory supplied good price rubber expansion joint, galvanised rubber expansion joint, Single sphere rubber expansion joint,Kxt type single sphere rubber expansion joint, KXT type rubber expansion joint


    Single Sphere Rubber Expansion Joint
    Rubber Expansion Joints are widely used in industry such as Chemical, Fertilizer, Cement, Power, Steel Plants and so on. As they are effective in construction and excellent in movement, anti-vibration.

    Features
    1) Designed according to ANSI, DIN and BS
    2) Type: Single sphere joint flange type
    3) Main body: EPDM, NBR, neoprene
    4) Lining: Chinlon cord fabrics
    5) Frame: Hard steel wires
    6) Flange: Carbon steel, stainless steel
    7) Union: Malleable iron
    9) Size: 1/2" to 24"


    • Standard single sphere rubber expansion joint 1.pn6/10/16/25. 2.dn25~1600. 3.lenght:95-300. 4.carbon/stainless steel. Kxt type single sphere rubber expansion joint. Advantage. 1)this product is made from rubber sphere and free-cober metallic flange those are composed of lining gumwater, nylon cord fabric or fortified polyester cord fabric and outer gumwater. 2)it has many characteristics:. *withstand high pressure. *good elasticity. *big displacement. *good effect of absorbing shock and reducing noise. *easy for installation. 3)it can be widely used in pipe systems of supplying and draining water,heating,ventilation,air-conditioning,fire-control,compressor,papermaking,medical preparation,ship,water pump,blower,etc.

    3.Notes


    Notes:1. For OEM orders with special requirement, rubber joints can be made according to customers' drawings. Generally, flange standard is GB/T9115.1-2000, other GB, JB, HG, CB, ANSI, DIN, BSEN, NF, EN, JIS, ISO flanges are also available upon request. Material of rubber body can be NR natural rubber, EPDM, Neoprene, IIR butyl rubber, NBR Buna-N, FKM, etc.
    2.When rubber joints size above DN200 are used for overhead water supply system, the pipes must be equipped with fixed supports or fixed brackets, otherwise control units shall be installed on rubber joints.
    3.Matching flanges of rubber joints shall be valve flanges or GB/T9115.1(RF) flanges.


    Quality Zinc Plated Single Sphere EPDM NBR Rubber Expansion Joint for sale
