PLC Computer Programming 250m / Min Toilet Paper Machine

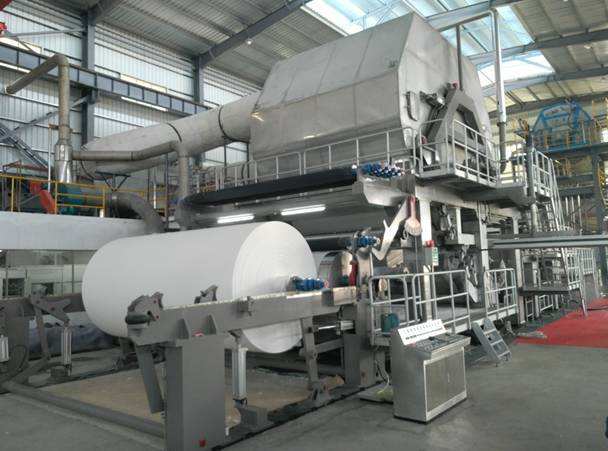

High Speed 250m/min Tissue Paper Production Line


1. Tissue Paper Production Line Crafts Parameters

Pulp: wood pulp plate, waste paper etc as raw material

• Feeding pulp concentration : 0.3-0.9‰
• Beating degrees : 30-38°SR
• Paper sheet dryness

come out from wire case : 18-20％
Before go through MG cylinder : 36-40％
Come out from MG cylinder : 90-94％
Finish tissue : 90-94％

• Lateral shrinkage : 8-10％
• Day running hours: 22 hours/d
• Papermaking rate : 94％
• Yield : 95％
• Touch roll line pressure: 60 KN/m

2. Tissue Paper Production Line Supporting parameter

AC voltage : 380V；50Hz

• Control voltage : 220/24V
• Water pressure: 0.3Mpa;

Working pressure: 0.2Mpa

• Compressed air pressure: 0.8Mpa;

Working pressure: 0.5Mpa

• Steam pressure: 0.6Mpa;

Working pressure:0.3Mpa

• Vacuum suction tank: 20-40Kpa
• Water requirement: pure color, remove impurities, PH value 6.8

• Arrangement: single-layer, the left and right hand arrangement

3. Tissue Paper Production Line Main Technical Parameters

Paper weight: 18-30g/m2

• Net width of paper :3900mm
• Designed speed : 230m/min
• Working speed: 150-200m/min
• Nominal capacity : 10T/D
• Track gauge : 4600mm
• Wrinkling rate : 15-30℅
• Drive way: Y-type AC motor drive division, section drive
• Control way:frequency conversion
• Power:

MG cylinder motor: 95kw
Roll-cylinder motor: 7.5kw
Total:102.5Kw

4. Tissue Paper Production Line Application

Mainly for the production of manufacture paper with pulp 14-35 g / ㎡, toilet paper. Paper napkin base paper

5. Tissue Paper Production Line Main Features
1) This toilet paper machine adopts PLC computer programming technology, stepless variable speed pneumatic hydraulic brake, man- machine interface operation.
2) Easy operation, superior performance, can work continuously with high efficiency.
3) Spiral floating punch, low noise, the use of harmless broken paper, is a production and processing all kinds of cheap health ,Rewinding paper ideal equipment.
4) This paper simple operation on board.Paper automatic positioning, the paper transport mechanism are equipped with elastic adjusting Device.
5) Rewinding process evenly.Through compaction and adjusting device effectively solves the tightness of rewinding uneven phenomenon.
