2 in 1 liquid Filling and capping machine 2500mm×1000mm×1800mm
Major characteristics:
Application: pour spout of laundry detergents or other special
bottles
It is our new developed machine for perfectly solving the
difficulties of pour spout caps capping in the current market. It
has following features:
1. Automatic cap placing, capping.
2. The reliable mechanical stem guide system ensures that caps are
oriented gently and accurately to ensure proper placement.
3. Special lead rail device ensures containers go to the right
direction smoothly.
4. Containers will not be scuffed and deformed.
5. Easy, quick changeovers.
Main technical parameter:
No. | Item | Description |
01 | Overal dimension | 2000mm(L)×1600mm(W)×2600mm(H) |
02 | Suitable bottle size | 1 .Laundry detergent bottle (1Kg): Height×Thickness×Width=206.5mm×74.1mm×158.2mm 2. Laundry detergent bottle (2Kg): Height×Thickness×Width=254.6mm×88.4mm×200.4mm 3.Laundry detergent bottle (3Kg): Height×Thickness×Width=270mm×110mm×210mm |
03 | Suitable inner-plug size | Customized |
04 | No. of capping heads | 4 |
05 | Production capacity | ≤2500 bottles/hours |
06 | Power supply | AC 380V,50Hz |
07 | Allowing Pour spout mouth deviation range | ≤±5° |
08 | Machine power | 4kw |
09 | Air operated resource | 0.6Mpa clean and stable compressed air |
10 | Air consuming | 24 m3/h |
11 | Weight | About 3800Kg |
12 | Working noise | ≤80db(test place should 1 meter away from machine) |
– Full automatic pump capping machine
– Max speed is 100BPH
- Replacing manual work and belt-rubbing machine
- Free debugging & High-effcient changeover
| Overal dimension(L×W×H): | 2000mm×1600mm×2600mm |
| Machine weight: | 4500Kg |
| Suitable pump caps(can be customized) |
| Diameter of pump cap | 30mm |
| Length of pump cap: | ≤250mm |
| Number of capping heads: | 8(can be customized) |
| Capacity:: | ≤5000containers/hour |
| Torque control | ±0.3Nm |
| Qualified rate of capping: | ≥98%(Container mouth center deviation less than 1mm, Container
mouth face height deviation less than 1mm) |
| Power supply: | AC 380V,50Hz |
| Machine power: | 4Kw |
| Air operated source: | 0.6Mpa clean and stable compressed air |
Packaging & Shipping:
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will
be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and
debugging machines. Engineer's round-trip tickets,accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD50.00/day/person.
We can also supply training process for your engineers who come to
china, so you can fit and debug machines by yourself.

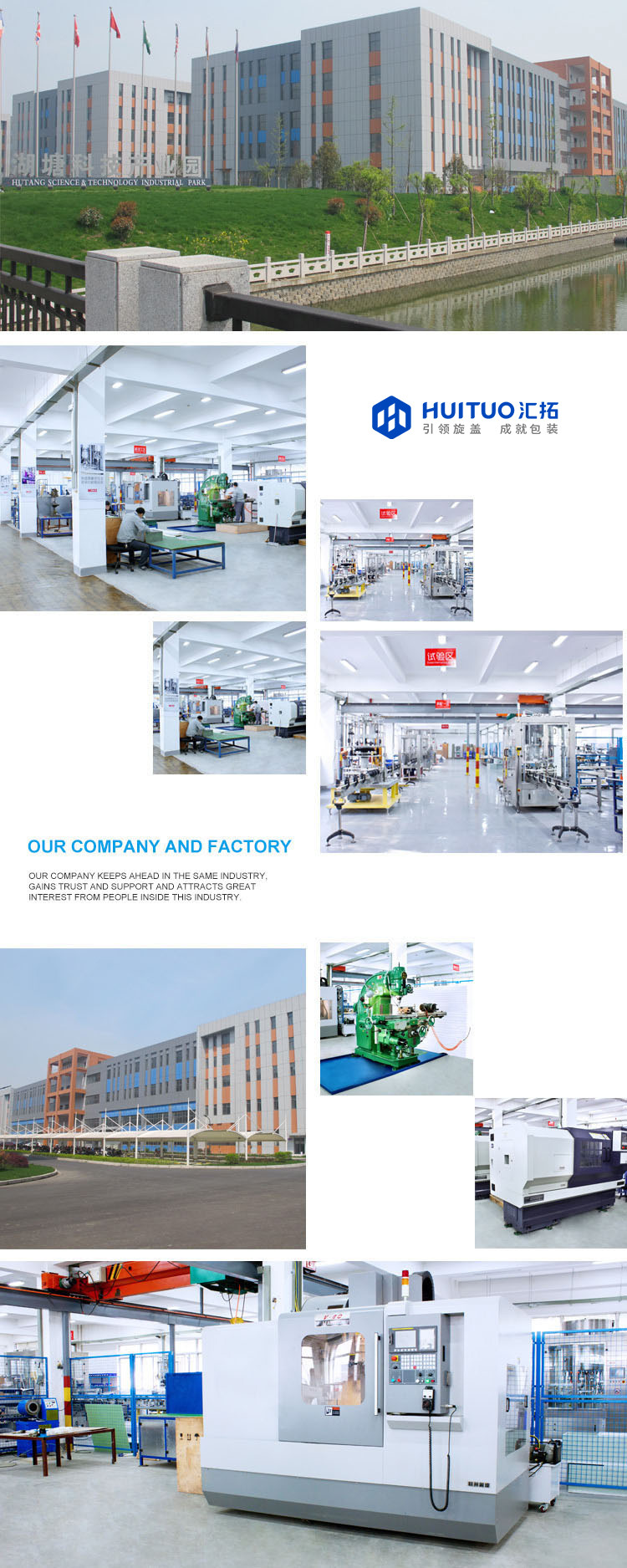

About Us
-- Focusing on Development, Packaging Industry Leader
-- Keeping on Recruiting Talents and Innovation
-- Advanced equipment, Guaranteed quality
FAQs
1. What types of packaging machines does Huituo offer?
We offer complete packaging systems that include one or more of the
following machines: bottle unscrambler, filling machine, capping
machine, cap unscrambler, bottle rinsers and washers, sleeve
labelers, inkjet printers for labelers, conveyors, turntables, and
monoblock.
2. What are the basic types of capping machines?
We have three series of capping machine:
1. SPU
Permanent magnet clutch
Suitable for the bottles with similar heights
Can be customized based on requirements
Max. Speed: 100bpm
2. SPI:
Permanent magnet clutch
Suitable for more bottles and caps
Can be customized based on requirements
Max. Speed: 200bpm
3. SPM:
Servo control
Suitable for more bottles and caps
Higher torque accuracy
Easier operation
Can be customized based on requirements
Max. Speed: 200bpm
3. What's the difference between semi-automatic and automatic
capping machine?
Semi-automatic capping machines require one or more operators to
place caps onto the cap-sending channels. The automatic capping
machine will be equipped with cap elevator and unscrambler,
achieving the highest production rates. It is suitable for round
cap and pump.
4. What are the basic types of filling machines?
Usually we have three types of filling machines
1. self-flow filling machine
2. Piston filling machine (Option 1: one servo motor to control all
filling nozzles; Option 2: each filling head is controlled by each
motor)
3. Flowmeter filling machine (Option 1: electromagnetic flowmeter;
Option 2: mass flow meter)
4. Pneumatic filling machine
Now, we have the forth filling machine for the hand sanitizer with
70%-80% alcohol, as it is much safer than the above three.
5. Should I choose linear filling machine or rotary filling
machine?
Usually, if the speed is over 6,000bph(based on 500ml), we will
suggest customer choose the rotary filling machine. The linear one
is more suitable for lower speed.
6. Do installation and training included in the machinery cost?
Training is included with most Huituo machinery but installation
and commissioning at site requires an additional fee.
7. What warranties does Huituo offer?
One year on non-wear parts and labor. Huituo warranties can also be
extended, ask a salesperson for information.
8. Can I rent equipment from Huituo?
Yes. Ask a salesperson for more information.
9. How long will the machine be delivered?
It depends on the degree of customization. The higher degree, the
longer delivery time.
