    IP67 Compact Ball Valve 10W Quick Open Electric Actuator

    Ask Lasest Price
    Brand Name : DCL
    Model Number : DCL-K05
    Certification : CE/ROHS/CSA/IP67
    Delivery Time : 7 working days
    Payment Terms : D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000PCS/month
    • Product Details
    • Company Profile

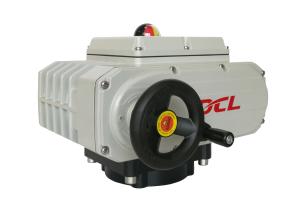

    IP67 Compact Ball Valve 10W Quick Open Electric Actuator

    Quarter turn compact quick open electric actuator for ball valve / sealing well


    Description

    DCL quick open electric actuators are widely used for fast open and close applications. By using a multi-head worm gear instead of a single head worm gear, the transmission efficiency of whole gear train will improve and the output drive speed will be higher than standard model. Different reduction ratios of gear train can output different torque and speed. So, DCL provides kinds of speed/torque combinations in very compact size.


    Specification:


    TypeDCL-K05DCL-K10
    Power SupplyDC24VAC24V AC110V AC220VAC380VDC24VAC24V AC110V AC220VAC380V
    Motor Power13W10W10W25W25W15W
    Max Current3.0A1.50A 0.24A 0.16A0.07A6.0A2.12A 0.57A 0.35A0.10A
    Torque/Time15Nm/2S 30Nm/5S15Nm/3S 30Nm/6S25Nm/2S 50Nm/4S 80Nm/8S
    Avaliable control circuitType GTypes of A/BType HType GTypes of A/BType H
    Turning Angle0270° Adjustable0~90° Adjustable
    Total Weight2.5kg4.5kg
    Insulating ResistanceDC24V:100MΩ/250VDC AC24V~380V: 100MΩ/500VDC
    Withstand Voltage ClassDC/AC24V:500VAC 1minute AC110/220V:1500V 1minute AC380V:1800V 1minute
    Protection ClassIP67
    Installation Angle3600 at any angle

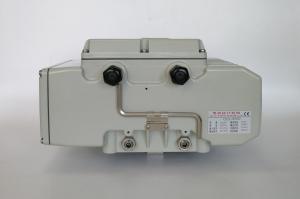

    Electric InterfaceTwo G1/2 Wate-proof Cable Connectors
    Ambient Temperature-25+55
    Optional FunctionHeater/Dome indicatorHeater/Dome indicator/Handle
    Name:Quick Open Electric Actuator
    Installation Angle:360°
    Standard Time/Torque:15Nm/2S 30Nm/5S 15Nm/3S 30Nm/6S
    Ambient Temperature:-25℃~+55℃ / -13°F~+131°F
    Power Supply:24VAC/110VAV/220VAC/380VAC/24VDC
    Type:Quarter Turn Electric Actuator
    Total Weight:2.5KG
    Protection Grade:

    IP67


    Features

    • On-off type quarter turn operation with adjustable mechanical stops
    • Heavy duty motor with thermal overload protection
    • Integral design of control pack/motor/housing
    • All metal gear train with all bronze alloy worm gear
    • Rugged IP67 aluminum alloy enclosure with C3 corrosion resistance, 100% underwater sealing test
    • Visual position indicator, flat or dome view available
    • Manual override with Allen wrench or Handwheel
