TZ / LL / ML Solid Liquid Separation Vertical Centrifugal Machine For Mining

TZ LL ML vertical centrifugal machine

Product Description

TZ Vertical Vibrating Centrifuge

The series product is efficient solid-liquid separation equipment produced by introducing VC series vertical vibrating centrifuge technology from American CMI Company, includes TZ-12 and TZ-14, and is suitable for dehydration of clean coal, middlings and other solid-liquid mixed slurry with granularity of 0.5~75mm. The series product has advantages of low dynamic load, long sieve basket life, stable operation, convenient operation and maintenance and low noise, etc.

ML Series Vertical Coal Slime Centrifuge

The series product has sieve basket diameter of 900mm~1,200mm, and is effective and widely used dehydration equipment for 0~3mm coal slime. It has advantages of large treatment capacity, convenient operation and maintenance and long service life, and sieve interval of 0.25, 0.3, 0.35, etc

LL Series Vertical Fine Coal Centrifuge

The series product has sieve basket diameter of 700mm~1,200mm and designed maximum feeding granule of 25mm, and is mainly used for middlings and fine coal dehydration. It has advantages of good dehydration effect, long sieve basket life, stable operation, convenient operation and maintenance and low noise and cost, sieve interval of 0.25, 0.3, 0.35, 0.5, etc.

Working Principle

The sieve is rotated at a high speed. After the material enters the centrifuge through the inlet, the external water is removed under the action of the centrifuge and discharged through the sieve seam. Two sets of gears are used to make the difference between screen blue and scraper, and the material attached to the screen blue is scraped off.

Technical Parameters

Technical spec.		Unit	MODEL
Technical spec.		Unit	TCL-0918	TCL-0924	TCL-1134		TCL-1418B	TCL-0924	TCL-1134
Bowl Diameter		mm	900	900	1104		1358	900	1100
Bowl Length		mm	1722	2320	3212		1868	2440	3350
Bowl Speed		r/min	800;1000	800	900;1100;1300		480;550;650	1000	850
Main motor		Kw	100	115	300		190	110	300
feed consistence		%	25~35	25~35	≥30	50	25~35
Capacity		t/h	10~20	15~25	40~50		50~60	10~25	15~30
product moisture		%	15~20	15~20	15~20		13~20	30~35	30~35
Dimension	L	mm	4.04	4.64	9.22		470	4.82
	W	mm	3.5	3.28	2.96		3.996	2.9
	H	mm	1.47	1.47	2.47		2.05	1.46
Weight		t	11.34	11.9	24		18	13

Technical Parameters

Technical spec.		Unit	MODEL
Technical spec.		Unit	TCL-0918	TCL-0924	TCL-1134		TCL-1418B	TCL-0924	TCL-1134
Bowl Diameter		mm	900	900	1104		1358	900	1100
Bowl Length		mm	1722	2320	3212		1868	2440	3350
Bowl Speed		r/min	800;1000	800	900;1100;1300		480;550;650	1000	850
Main motor		Kw	100	115	300		190	110	300
feed consistence		%	25~35	25~35	≥30	50	25~35
Capacity		t/h	10~20	15~25	40~50		50~60	10~25	15~30
product moisture		%	15~20	15~20	15~20		13~20	30~35	30~35
Dimension	L	mm	4.04	4.64	9.22		470	4.82
	W	mm	3.5	3.28	2.96		3.996	2.9
	H	mm	1.47	1.47	2.47		2.05	1.46
Weight		t	11.34	11.9	24		18	13

Technical Parameters

Technical spec.		Unit	MODEL
Technical spec.		Unit	TCL-0918	TCL-0924	TCL-1134		TCL-1418B	TCL-0924	TCL-1134
Bowl Diameter		mm	900	900	1104		1358	900	1100
Bowl Length		mm	1722	2320	3212		1868	2440	3350
Bowl Speed		r/min	800;1000	800	900;1100;1300		480;550;650	1000	850
Main motor		Kw	100	115	300		190	110	300
feed consistence		%	25~35	25~35	≥30	50	25~35
Capacity		t/h	10~20	15~25	40~50		50~60	10~25	15~30
product moisture		%	15~20	15~20	15~20		13~20	30~35	30~35
Dimension	L	mm	4.04	4.64	9.22		470	4.82
	W	mm	3.5	3.28	2.96		3.996	2.9
	H	mm	1.47	1.47	2.47		2.05	1.46
Weight		t	11.34	11.9	24		18	13

FQA

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time :

A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms :

A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?

A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Luoyang Zhongtai Industries CO.,LTD
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

TZ / LL / ML Solid Liquid Separation Vertical Centrifugal Machine For Mining

TZ / LL / ML Solid Liquid Separation Vertical Centrifugal Machine For Mining

TZ / LL / ML Solid Liquid Separation Vertical Centrifugal Machine For Mining

Solid Liquid Separation Vertical Centrifugal Machine

vertical centrifugal machine

TZ / LL / ML Solid Liquid Separation Vertical Centrifugal Machine For Mining

You May Like

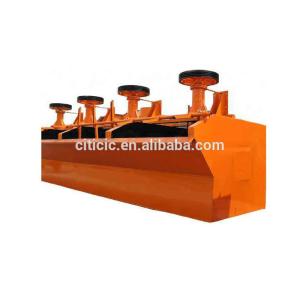

Convenient Gold Ore Flotation Machine For Ore Dressing Equipment

New High quality Coal decanter centrifuge Ore Dressing Equipment

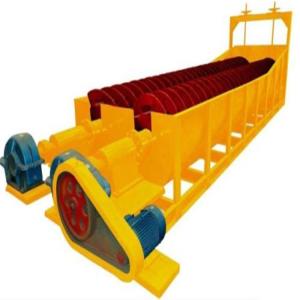

High Quality Professional Screw Sand Washing Machine Factory Price

CTB6012 Wet 20t/H Drum Magnetic Separator Machine and iron ore magnetic separator factory price

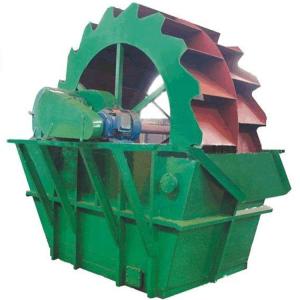

XS Series Sand Stone Washer copper ore processing plant For construction
