    IBC Tubular Frame Mesh Six Head Spot Welding Machine

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-SQ-MF90Kx6
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

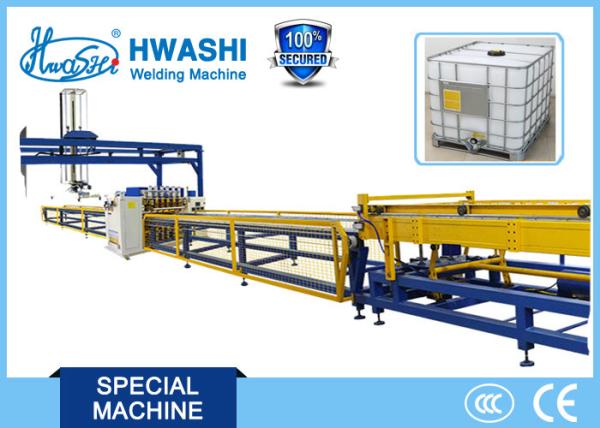

    IBC Tubular Frame Mesh Six Head Spot Welding Machine


    Hwashi Automatic IBC Tubular Frame Mesh Six-Head Spot Welding Machine ,Container Tank Tote Frame Welding Machine


    DESCRIPTION


    This machine is special automatic welding for IBC tank wire frame tubular mesh within 4000x1150mm


    6-Head Gantry Type Welding Machine is our latest special machine for welding IBC tank tubular frame. The IBC tank is composed of inner container and metal frame. The metal frame is made of bended tubular mesh.IBC intermediate bulk container is an essential tool in modern storage, liquid transportation.


    SPECIFICATION


    No.ModelWL-SQ-MF90Kx6
    1Input PowerThree-phase
    2Rated Capacity90KVAx6
    3Rated Input Current300A
    4Rated Duty Cycle Rate25%
    5Secondary Voltage Adjusting Grade2
    6Max Secondary Floating Voltage12.5V
    7Secondary Max Short Circuit Current26KA
    8Continuous Working Current20KA
    9Welding Transformer Insulation GradeF
    10Welding Machine Pressuring Curves2 types
    11Welding Programs Number101 types
    12Welding Head6 sets
    14Effective Welding Width1000mm
    15Effective Welding Length4000mm
    16Stepping Welding Moving Speed500mm-1000mm/sec
    17Upper Electrode Stroke80mm
    18Lower Electrode Stroke50mm
    19Unloading Feeder Moving Distance500mm
    20Unloading Feeder Lifting Distance1200mm
    21Unloading Feeder Moving Speed500mm-1000mm/sec
    22Unloading Feeder Rotating Angle900

    APPLICATION


    Design for batch production of IBC stainless steel tubular mesh within 4000x1000mm , etc.

    IBC Container Tank Tote Welding Machine, Wire Automatic Welding Machine

    MATERIAL CONFIGURATION

    1.Adopt silicon controlled from SEMIKRON of West Germany or IXYS of United Stated with high precision and long service life.

    2.Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.

    3.Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system.

    4.Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within±15%.

    5.Adopt South Korea SANWO pneumatic components with stable performance.

    6.All the electronic components are from Japan Mitsubishi and Omron with ideal service life and performance.

    7.The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity.

    8.High precision all digital control system effectively resolve the problems of cold joint or loose welding due to the current shunt in projection welding.

    9.Strictly comply with CE security standard to design the machine. Lower the accident rate.


    Quality Standard

    The machine is manufactured according to the following standard.

    • Rated Value and Operation Condition of Electric Resistance Welding Equipment GB/T8366-2008
    • Safety Requirement of Electric Resistance Welding Equipment GB/15578-2008
    • Controller General Technical Specification of Electric Resistance Welding Equipment JB/T10110-2008
    • Fixed Spot or Projection Welding Machine JB/T10101-2000
    • Transformer General Technical Specification of Electric Resistance Welding Equipment JB/T9529-2008
    • QA Inspection Standard of Our Factory HS/040120006

    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO 9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
