    Single wiegand access controller with 180 kg EM lock, infrared exit button, switch power supply zk access control

    Ask Lasest Price
    Brand Name : XIMI
    Model Number : F004 Kit
    Price : Deliberation
    Delivery Time : 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated
    Payment Terms : L/C D/A D/P T/T Western Union MoneyGram
    Supply Ability : 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated
    • Product Details
    • Company Profile

    Single wiegand access controller with 180 kg EM lock, infrared exit button, switch power supply zk access control

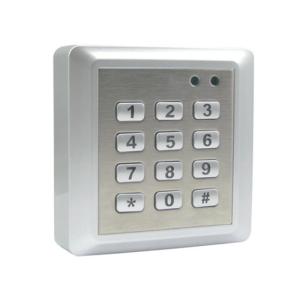

    1pc access control (Standalone Card Access Control Without software)
    1pc magnetic lock
    1pc power supply
    1pc exit button

    Specifications:
    1. Capacity :500
    2. Card Type:RFID and mifare card
    3. Work distance:RF:1-15CM MF:1-7CM
    4. Identify speed:<=1s
    5. Work voltage:12VDC±10%
    6. Work currency:<100mA
    7. Work temperatrue:0-70
    8. Relative humidity:20%RH-80%RH
    9. Unlocking ciper:1 Group
    10. Unlocking ways:Card ,pin ,card +pin
    11. Weigand: NO
    12. Size:117x117x21mm
    13.weight:100




    Power Supply:
    Specifications:
    100% Brand New.
    Size: Approx. 120 x 95 x 38mm(L x W x H)
    Input voltage: 110~240v
    Input Frequency: 50~60Hz
    Output voltage: DC 12V
    Output Current: 3A
    Output voltage trim range: ±10%~ ±15%
    Insulation voltage: Junior/sub-polar inter-1500v ac, primary/shell between 1500V AC, subpolar/shell between 500V AC
    Hold time: full load typically 20ms
    Operating temperature: -20~ ±35 degree
    Overload protection: All output in a short circuit, overload are protected; Power output of 0-15 seconds delay locks



    Electromagneic Lock
    Specifications:
    Holding force: 180kgs
    Voltage: DC 12V
    Current: 380-430mA
    Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
    Humidity: 0 to 95%
    Working mode: power-on to lock
    Lock size: 17 * 3.8 * 2cm

    Plate size: 13 * 3.3 * 1cm
    Package weight: 1.3kg

    Exit button:

    Card access controlconnect


    Shipping and payment detail.jpg

    About XIMI.jpg

    excellent feedback.jpg
