First sealing of insulating glass Automatic Butyl Extruder Machine
used in Double Glazing Processing machinery

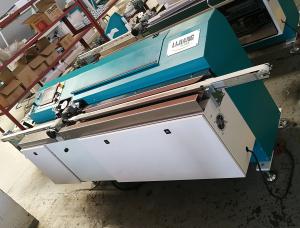

Product overview of Small extruder machine
Butyl extruder machine LJTB 01 is used for spreading aluminum
spacer frames evenly with hot melt butyl.
The butyl extruder uses large electrical control panel which makes
the operation more easier than before. The conveyor of aluminum is
controlled by frequency converter. The speed can be adjusted from
0m/min to 47m/min.
Butyl extruder squeezing system adopts pneumatic and hydraulic
supercharging system, which makes the squeezing pressure more
stable. The dispensing cylinder adopts vertical rotary support
system, making the refill of butyl more easier. The height of
squeezing head can be adjusted automatically according to different
kinds of aluminum spacers.
The butyl extruder has reached the worldwide technology with the
characteristic of complete functions and stable working mode.
Technical Data of butyl extruder machine
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 20mm |
| Aluminum spacer width | 6A-27A |
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Air pressure | >0.6MPa |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Dimension | 2800*700*900mm |
| Total power | 380V, 5KW, 50HZ |
Feature of Automatic butyl extruder machine
1.The Butyl Extruder adopt PLC control system ,touch screen
interface
2.Glue cylinder of Butyl coating equipment adopt the upright
structure, easy to change butyl.
3.Butyl extruder machine adopt Siemens brand,stable performance.
4.Butyl Extruder machine can automatically adjust the amount of
glue according to different speeds.
5.The Butyl coating machine can be Quickly speed of warming,Up to
47m / min,improve work effect.
6.Butyl extruder machine is suitable for square, rectangular,
shaped, arc and kinds of aluminum frames.
7.Alarm system
Automatically alarm system, reminding adding butyl
8.Automatic filter function
Automatically filter debris, keep spreading evently.
Leading Technology
- Stable temperature device makes it convenient to adjust the sealing
material automatically according to the changed coating speed.
- The coating speed is up to 47m/min, save more than 40% butyl than
others, only need 7g/m.
- Quickly heating function, preheat the machines with only 20 minutes
per day, improve work efficiency.
