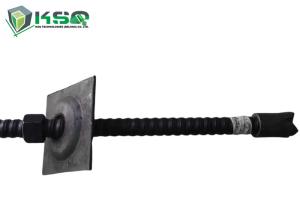

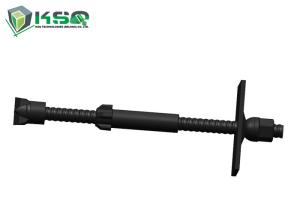

Hollow Grouted Self Drilling Tunnel Rock Bolt Mining Anchor Bolt
Introduction Of Hollow Drilling Mining Rock Grouting Anchor Bolt
1, Hollow Drilling Mining Rock Grouting Anchor Bolt consists of
hollow core with continuous hot-rolled outside thread
2, Hollow Drilling Mining Rock Grouting Anchor Bolt can application
as injection anchor without casing, especially for non-stable
boreholes
3, self-drilling installation, utilization of the anchor bar as
drill rod with a single-use drill bit
4, easy extension of the anchor bars by anchor coupler
5, grouting or development of the grout body either simultaneously
with drilling using a rotary injection adapter or afterwards
6, assembly of the anchor head with the anchor plate and the nut,
stressing and locking
Advantages:
• A high rate of installation since drilling, placing and grouting
can be performed in one single operation.
• Self drilling system eliminates the requirement for a cased
borehole.
• Suitable for working in limited space, height and in areas of
difficult access.
• Simple post grouting system.
Hollow Drilling Mining Rock Grouting Anchor Bolt Specification
| Self-Drilling Anchor Bolt Specification |
| Specification | R25N | R32N | R32S | R38N | R51L | R51N | T76N | T76S |
| Outside Diameter (mm) | 25 | 32 | 32 | 38 | 51 | 51 | 76 | 76 |
| Internal Diameter (mm) | 14 | 19 | 16 | 19 | 36 | 33 | 52 | 45 |
| Ultimate Load Capacity | 200 | 280 | 360 | 500 | 550 | 800 | 1600 | 1900 |
| Yield Load Capacity (kN) | 150 | 230 | 280 | 400 | 450 | 630 | 1200 | 1500 |
| Tensile Strength, Rm | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Yield Strength, Rp0.2 | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 |
| Weight (Kg/m) | 2.3 | 3.2 | 3.6 | 5.5 | 6.5 | 8 | 16 | 19.7 |
| Thread Type (left-hand) | ISO10208 | ISO1720 | MAI T76 Standard |
| Steel Grade | EN10083-1 (Alloy Structure Steel) |
| Compared to carbon steel, alloy structure steel has high
anti-corrosion capacity and high |
