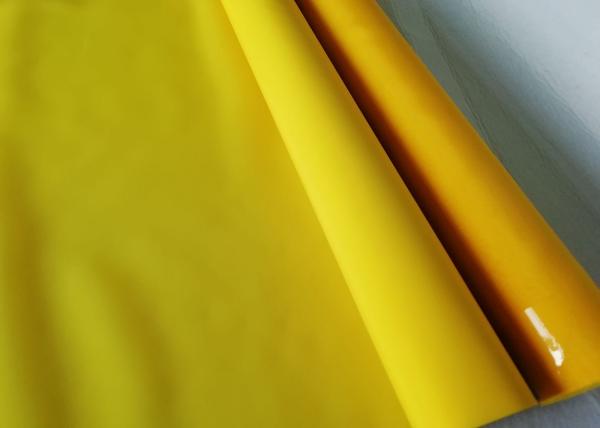

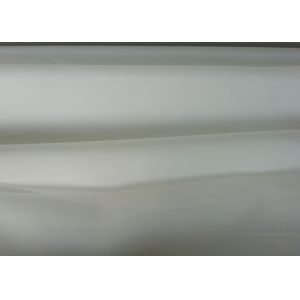

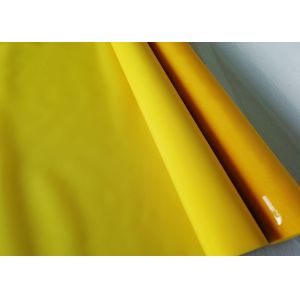

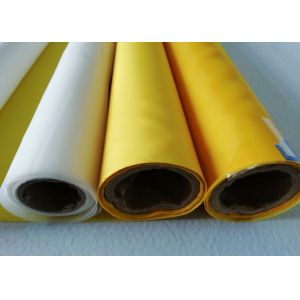

Chemical Resistant 110 Mesh Polyester Screen Printing Mesh For T
Shirt Printing
Product Introduction
The polyester screen is made of chemical synthetic fibers,It
belongs to polyester series.Polyester Screen Printing Mesh It is a type of woven polyester
which is extracted from yarn by using a particular mechanism of
heating of the polyester. Thus, the heater form is made in a single
filament threaded form. The extruded form of thread filament is the
manufactured and is spun according to the required diameter.
| Material | 100% polyester |
| Thickness | 55-365 Micron |
| opening size | 100micron |
| width | 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can
be 3.65cm |
| Thread diameter | 31-200 Micron |
Product Features
1 . Screen printing is highly adaptable and has a wide range of
applications
2 . Screen printing can not only print in monochrome, but also
register and screen color printing.
3 . The light resistance of screen printing products is stronger
than that of other types of printed products, and it is more
suitable for outdoor advertising and signage.
4 . Screen printing can be used for large-area printing. Today's
screen printing products can reach a maximum size of 3 meters × 4
meters, or even larger
Product Application
1 . Polyester printing mesh can be applied to T-shirt, clothing
printing
2 . Polyester printing mesh can be applied to Flatbed Textile
3 . Polyester printing mesh can be applied to home appliance printing
4 . Polyester printing mesh can be applied to glass containers printing
Product Specification
| Mesh Count Diameter (Mesh/cm μm) | Mesh Count(Mesh/inch) | Aperture(μm) | Thread Diameter(μm) |
| 13-150PW(SL) | 33 | 619 | 150 |
| 21-80PW(S) | 55 | 296 | 80 |
| 21-150PW(SL) | 55 | 326 | 150 |
| 24-100PW(T) | 60 | 316 | 100 |
| 28-140PW(SL) | 70 | 217 | 140 |
| 32-55PW(S) | 81 | 257 | 55 |
| 32-64PW(S) | 81 | 248 | 64 |
| 32-100PW(T) | 81 | 212 | 100 |
| 36-90PW(T) | 92 | 183 | 90 |
| 39-55PW(S) | 100 | 177 | 55 |
| 40-80PW(T) | 103 | 166 | 80 |
| 43-80PW(T) | 110 | 149 | 80 |
| 47-45PW(S) | 120 | 166 | 80 |
| 47-55PW(S) | 120 | 152 | 55 |
| 48-70PW(T) | 122 | 133 | 70 |
| 53-45PW(S) | 135 | 143 | 45*2 |
| 53-55PW(S) | 135 | 133 | 70 |
| 54-64PW(T) | 137 | 115 | 64 |
| 54-70PW(HD) | 137 | 109 | 70 |
| 61-64PW(T) | 155 | 90 | 64 |
Product Weave
The most common weaving pattern in Plain screen printing mesh is
called "plain weave" and will be designated on labels as "PW." It
is a simple over-and-under weaving pattern. "Twill weave (TW)" is
used to create thicker, sturdier screens and relies on complex
patterns of weaving, which vary depending on the manufacturer.
Twill weave mesh will be thicker than plain weave even if the mesh
count is identical. The Screen Printing Technical Foundation
compared the different weave's performance and found that twill
weave transferred somewhat less ink than plain weave.
