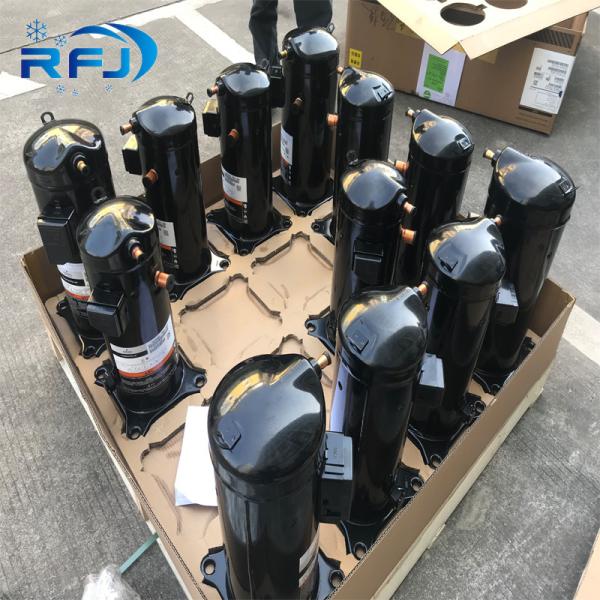

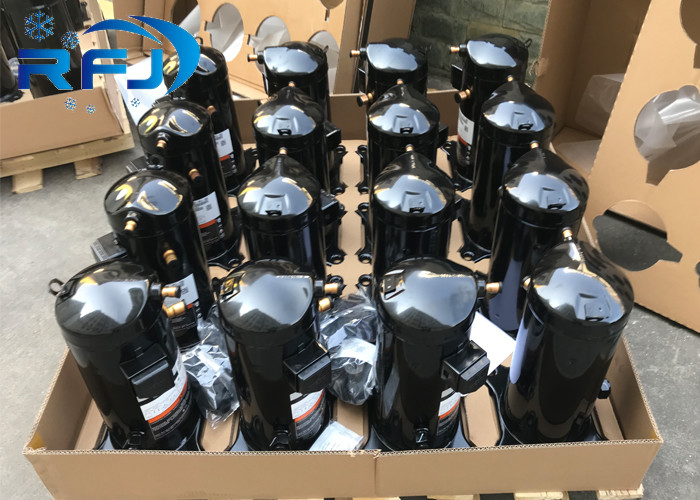

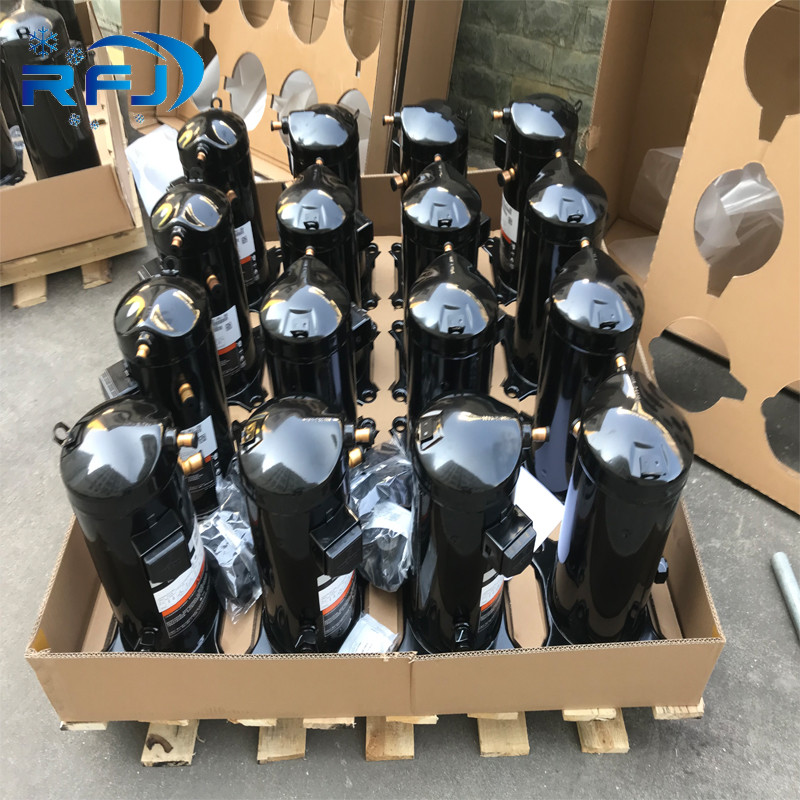

    New Condition ZP24KSE-TFM R410a Copeland Scroll Compressor

    Ask Lasest Price
    Brand Name : copeland
    Model Number : ZP24KSE-TFM
    Certification : CE
    Price : discussed
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000piece/month
    Delivery Time : 3 days
    • Product Details
    • Company Profile

    New Condition ZP24KSE-TFM R410a Copeland Scroll Compressor

    Hermetic Scroll Copeland Compressor ZP Series
    1,ZP16KSE,ZP24KSE,ZP29KSE,ZP31KSE,ZP36KSE,
    2,Use R410A
    3,Low price & Original
    Type: Hermetic scroll compressors
    Producer: Copeland
    Series: ZP

    Model: ZP24KSE-PFZ

    Technical data
    Displacement [m³/h]:4,0
    Sound power [dBA]:66
    Sound pressure level [dB]:55
    Net Weight [kg]:21,9
    Oil charge [dm³]:0,7
    Maximum high pressure [bar]:43
    Maximum standstill pressure [bar]:28,0
    Maximum lowside temperature [°C]:50
    PED category:1

    Electrical data

    Power supply [V/~/Hz]:220-240V/1/50Hz
    Locked rotor current [A]:60,0
    Max. operating current [A]:12,8
    Winding resistance ]:1,3
    Start winding resistance ]:2,6

    Series features
    • 25 models in series
    • displacement from 2,6 m³/h to 60,8 m³/h
    • cooling capacity:
      1) from 3,2 kW to 82,4 kW (for te=5ºC, tc=50ºC, R410A)
    • available with motors on 50 Hz and 60 Hz
    • lubrication with ester oil

    Standard equipment
    • screwed sight glass
    • Rotalock connections
    • Schraeder connection
    • assembly washer
    • discharge temperature control

    Optional equipment
    • external crankcase heater (70W)

    Application
    • medium temperatures (from 7 ºC to -30 ºC)
    • refrigerant R410A
