Cast Steel Apron Feeder System For Blocky Material Customized Size

    Buy cheap Cast Steel Apron Feeder System For Blocky Material Customized Size from wholesalers

    Buy cheap Cast Steel Apron Feeder System For Blocky Material Customized Size from wholesalers
    • Buy cheap Cast Steel Apron Feeder System For Blocky Material Customized Size from wholesalers

    Cast Steel Apron Feeder System For Blocky Material Customized Size

    Ask Lasest Price
    Brand Name : Green Eco-Equipment
    Certification : ISO9001:2008/CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10 sets per month
    Delivery Time : 10~15 work days after receiving fullpayment.
    • Product Details
    • Company Profile

    Cast Steel Apron Feeder System For Blocky Material Customized Size

    Chain Feeder System Chain Plate Feeder Apron Feeder For Blocky Material


    Product Description


    Chain Feeder System Chain Plate Feeder Apron Feeder For Blocky Material is a large machine that carries materials through the parts of a manufacturing or industrial process. These machines resemble short conveyor belts, and may also be known as plate feeders or apron conveyors. Apron feeder machines allow engineers and process managers to automatically control the volume of materials that are added to a process, and regulate the rate at which these materials are added. To withstand the heavy weight of these types of materials, the belt portion of the apron feeder is made from thick steel trays, pans or caterpillar chain plate. Chains along either end of the feeder help move the trays along the conveyor area, and are powered by an industrial motor or engine. In mining, the apron feeder carries rocks and minerals for crushing, or further processing.



    Main Parameters


    Heavy Duty Apron Feeder Technical Technical Parameters
    ModelPlate widthHead to tail shaft center distanceSpeedFeed sizeCapacityPowerReference weight
    (mm)(mm)(m/s)(mm)(t/h)(kw)(kg)
    WBZ160-9160090000.01-0.15≤10009003050000
    WBZ180-8180080000.01-0.15≤1000≤10003759000
    WBZ200-102000100000.01-0.15≤1000≤11003782000
    WBZ220-102200100000.01-0.15≤1200≤12004585000
    WBZ230-102300100000.01-0.15≤1200≤13004586000
    WBZ240-102400100000.01-0.15≤1600≤14002x3795000
    WBZ250-11.52500115000.01-0.15≤180015002x45105000

    Medium Duty Apron Feeder Technical Technical Parameters
    ModelPlate widthHead to tail shaft center distanceSpeedFeed sizeCapacityPowerReference weight
    (mm)(mm)(m/s)(mm)(t/h)(kw)(kg)
    WBL100-6100060000.01-0.15≤500≤30018.515000
    WBL120-6120060000.01-0.15≤600≤4002216000
    WBL125-6125060000.01-0.15≤600≤4502218000
    WBL140-8140080000.01-0.15≤700≤5003029000
    WBL150-101500100000.01-0.15≤1200≤8003749000

    Light Duty Apron Feeder Technical Technical Parameters
    Model

    Plate width

    (mm)

    Head to tail shaft center distance(mm)

    Particle size

    (mm


    Speed

    (m/s)

    Capacity

    (t/h)

    Power

    (kw)

    Reference weight

    (kg)

    WBQ500-250020007-880.05-0.4<501.1-32500

    WBQ500-

    6

    50060007-880.05-0.4<501.1-34000
    WBQ500-12500120007-880.05-0.4<501.5-45600

    WBQ630-

    3

    630300011-1750.04-0.4<1001.5-44700
    WBQ630-156301500011-1750.04-0.4<1002.2-5.59000
    WBQ800-6800600019-3080.04-0.4<3502.2-5.55200

    Features


    The traction chain is made of long pitch plate pin shaft roller chain, and the parts of chain and made of alloy steel. After scientific heating treatment, the traction chain is endowed with many advantages: good wear resistance, high tensile strength, long service life, adopting of the stamping groove, and the middle part shows high performance and large carrying capacity through the use of reinforcing bars.


    Advantages


    1. The apron feeder is widely used in conveying metal ,limestone, gold ore and construction waste,gypsum, etc.

    2. It can bear big pressure under small silo or loader.

    3. The speed can be adjusted by frequency conversion control cabinet.

    4. Adopting the feed trough, to prevent the material leakage.

    5. The thickness of plate is from 8mm to 20mm.

    6. It can be matched with ABB, Siemens, Flender and SEW etc if required.

    7.Can be customized.

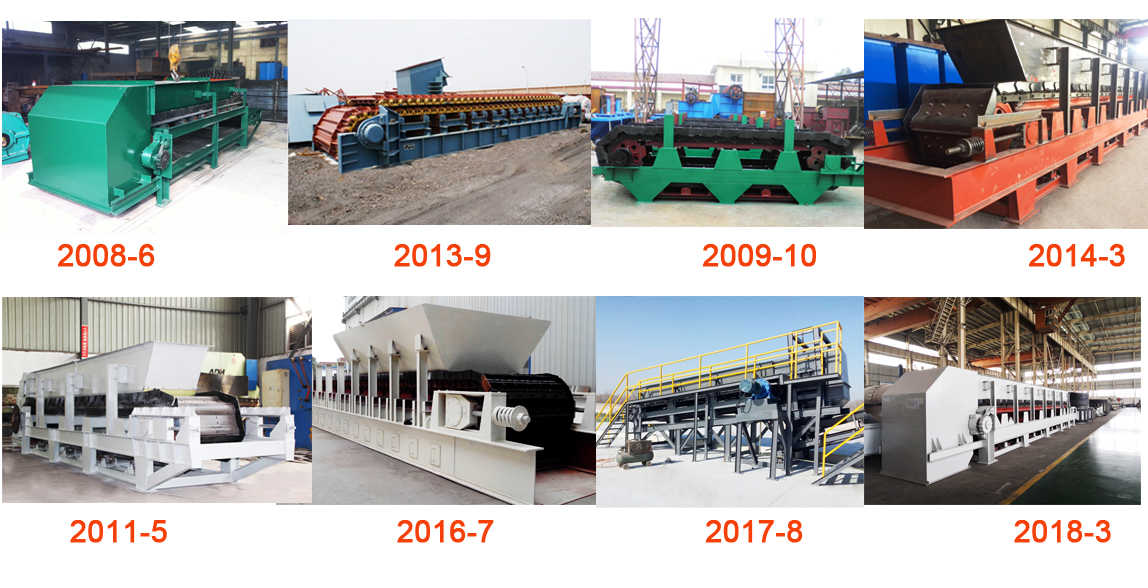

    Details Show

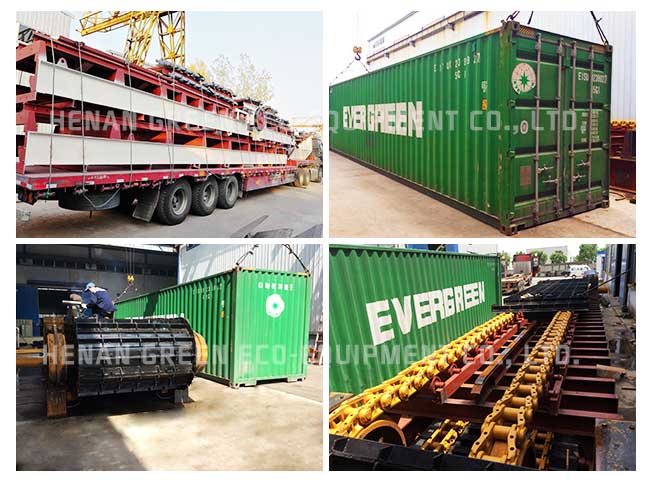

    Packing & Shipping


    Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
