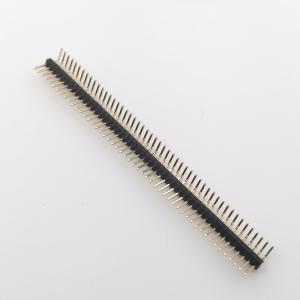

Single Row PIN Header Connector Pitch 1.27mm 40 Pins Header Connector Right Angle DIP

Products Name: Pitch 1.27mm Pin header connector single row 40 Pins Right Angle DIP for PCB Mounting

Products Descrption:

this Pin Header is with pitch 1.27mm, single row with 40 pin numbers. with a specified pin length and 0.4mm square pins that it can afford an 1AMP of current transmission. It usually match with a same pitch and pin number of Female Header so as to form as board to board connection, or match with a wire haress forming as wire to board connection, or it can directly soldered in two PCBs.

Its pitch, pin number, mounting type, length can be customized according to customer application, like:

Pitch can be optional as 0.8mm,1.0mm, 1.27mm, 2.0mm, 2.54mm,3.96mm,etc.

And it can be single row, dual row or triple row.

Mounting type can be customized to be SMT(vertical or side entry), DIP throught PCB(vertial or side entry).

Common Application:

we produce and supply in hugh volumn for consuming electronics of consumer catagory, Telecommunication, industrial control, meters, medical, aviation and millitary.

Function: It provides an electric current connection between board to board or board to wires.

Shenzhen Sinrui Technology CO., Ltd is an integrated high-tech corporation specializing in research, design, manufacture and selling, which was founded in 2005. The factory owns a professional technical team that is focusing on the development and production of hardware mold, plastic mold, High Precision Metal Stamped Parts , electrical connector, wire harness, RF connector, RF cable assembly, RF Antenna for more than ten years. The factory makes every effort to provide high quality products, fast delivery and professional service for customers.

The main products of Shenzhen Sinrui Technology CO., Ltd

Connector: such as pin header, female header, terminal board, wire to wire, wire to board connector, IDC connector, Wafer connector, box header, ejector header, round hole, round needle and so on. Our Products can perfectly replace other brand products.

High frequency coaxial connectors and coaxial cable assemblies: such as SMA, SMB, MCX, MMCX, BNC, BMA, N, L9, L29 (7/16DIN), UHF coaxial connectors. The factory also can assemble coaxial cable assemblies.

Wire Harness and Cable Assembly: such as flexible flat cable, power line, computer peripheral cable, AV video cable, battery cable, security wire harness, industrial cable assembly, automotive wire harness, medical cable and so on. The factory also provides customized services including all kinds of wire harness and cable assembly.

Precision Hardware Stamping: such as shield cover, spring, shrapnel, copper needle, round needle, square table, terminal, fuse insert, fastener, mobile phone and hardware accessories, auto hardware spare parts, industrial hardware accessories, etc.

Sinrui factory has established and strictly enforced the ISO 9001:2015 quality management system. We also have the capable to provide high-quality and reliable products for customers. Besides, we also offer fast and stable delivery time for customers.

Our business philosophy: quality first, customer first, connecting the world.

Our environmental policy: abide by laws and regulations, put resources into rational use, produce green product, enhance awareness of environment and improve the environment constantly.
