ZM9103 Educational Equipment For Schools Hydrodynamics Lab

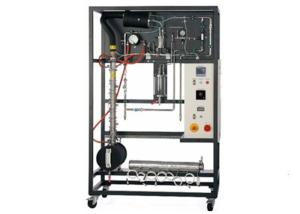

Equipment Batch Distillation Column
Anodized aluminum structure and panel of painted steel.
Main metallic elements in stainless steel.
Diagram in the front panel with similar distribution to the
elements in the real unit.
Sieve Plates Column with 8 plates with one temperature taking and
sample, 50 mm. internal diameter and 1000 mm. length. Vacuumed,
silverplated and double transparent band for vision.
Column head with temperature taking and conical output for
distilled product. Column head with a valve for the steam
distribution.
2 l. Boiler (with sample outputs) with heating mantle.
2 l. Distillation collector of graduated glass.
Refrigerator.
Temperature measurement system.
7 Temperature sensors ”J” type.
Working temperature: ambient temperature up to 125°C.
Flow meter, range: 0.2 - 2 l./min.
Manometer tubes.
Solenoid valve.
Electronic console:
Metallic box.
o Temperature sensors connections.
Digital display for temperature sensors.
Selector for temperature sensors.
Heating element (heating mantle) temperature control.
Solenoid valve switch.
Solenoid valve timer controller. (Solenoid valve reflux time
control). Optional Columns (not included in the standard supply):
- Raschig Rings Column.
- 8 Plates Type Column (8 Temperature points).
- 10 Plates Type Column (10 Temperature points).
- 14 Plates Type Column (14 Temperature points).
- Cables and Accessories, for normal operation.
Product Details and Warranty
We supply suitable spare pats according to experiment requirement,
our products take aluminum structure, A4 paper dimension aluminum
and plastic hanging box structure.
We supply 3 years warranty time.
Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with
pallet, and for equipment dimension less than 1CBM, we supply
plastic film+ plastic foam+ fine carton.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
