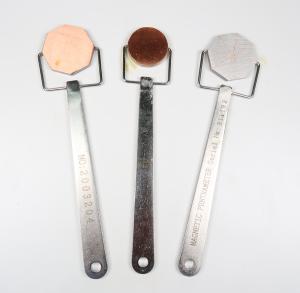

PIE gauge Magnetic Pie gauge,Magnetic Pie indicator
Magnetic Pie gauge include three kinds of standard.:1 #, 2 #, 3 #
1 # indicator is the combination of eight triangular pieces, one
side is brass surface, another side is eight lines saface.Hand the
hands handle when using, keep brass upside, eight line saface
downside, close to the workpiece surface, using the continuous
method for magneticx inspection, it can clearly display the
magnetic image display when spraying magnetic suspension.
2 # indicator is the combination of eight triangular piece,both
side are brass surface.hand the hands handle and keep arbitrary
brass surface upside , close to the workpiece surface, using the
continuous method for magneticx inspection, it can clearly display
the magnetic image display when spraying magnetic suspension.
3 # indicator is the combination of four triangular pieces, one
side isbrass surface, another side is four wire surface,and two
round dots.hand the hands handle and keep arbitrary brass surface
upside , close to the workpiece surface, using the continuous
method for magneticx inspection, it can clearly display the
magnetic image display when spraying magnetic suspension.It can
check whether the flaw detection equipment, comprehensive use
performance and operation method of magnetic suspension is
appropriate.And can also adjust the distance between the cover and
soft iron, found certain values of magnetic field, then observe the
limit value.of near surface defects buried depth ability.
