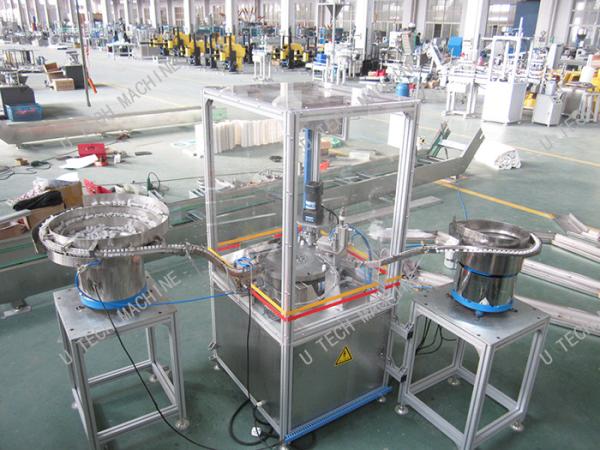

This is a machine designed to assemble the safety medicine cap.
It can work two works at a once because it is equipped with both
two tanks and seal feeder to feed the both plastic cap and seals.
Two plastic caps in the tanks are assembled and the seals are
inserted into the caps.
This machine is equipped with an inspection camera to reduce zero
contamination and apply to high-end products. So it will help to
save labor cost and improve quality.
It is Easy to operate and maintenance, high rated of qualified
products, low power consumption.
Features
1. This machine is used to combine aluminum-part with plastic-part
for making flip-off seals(plastic-aluminum seals).
2. Working procedure:Firstly feed aluminum parts and plastic parts
into the individual electromagnetic hopper,then both caps go
through the chutes to the arrange table,Finally the caps are
assembled by the heated assembling punches.
3. Adopt stainless steel SS201,22304,22316L,materials can be
customized according to your requirements.
4. Working speed can be adjusted by controlling frequency
controller
5. Comparing with the machine manufactured by other factories,our
machine has the features of higher speed,higher qualified rate and
less occupied area;
6. Easy to operate and maintenance,steady production with high
efficiency;
7. Zero pollution,applicable for high-ends products;
8. Our machine can be equipped with auto material loader and
conveyor for check,which will help to reduce labor intensity and
increase qualified rate;
9. customized design and manufacturing is accepted
Technical specification
1 | Machine name: | Automatic plastic bottle cap assembly machine for assembling caps
from top supplier |
2 | Model: | UT |
3 | Lining heads: | 1/2 |
4 | Sealing dia: | Customized |
5 | Speed: | 30-120ppm |
6 | Error Range: | ≤±1% |
7 | Single machine noise: | ≤50dB |
8 | Driven Type: | Electrical and Pneumatic |
9 | Compressed air pressure: | 0.4~0.6Mpa |
10 | Speed control: | Frequency conversion |
11 | Power: | 1.2KW,50-60HZ
220/380V/110V/415V (customized to different country) |
12 | Weight: | 400Kg |
13 | Dimension: | 2400*800*1800mm |
1 | Main electronic parts | SIEMENS /GERMAY |
2 | Electric protection switch | SIEMENS/GERMANY |
3 | Circuit breaker | SIEMENS/GERMANY |
4 | PLC | MITSUBISHI/JAPAN |
5 | Touch screen | WEINVEW/TAIWAN |
6 | Transducer | MITSUBISHI/JAPAN |
7 | Photo electricity switch | AUTONICS/KOREA |
8 | Pneumatic element | AIRTAC/TAIWAN |
9 | Pressure sensor | SMC/JAPAN |
10 | Motor |
SIEMENS/GERMANY
|
