Curve Metal 3D Laser Engraving Machine , 1064nm 3D Laser Glass Etching Machine

    Buy cheap Curve Metal 3D Laser Engraving Machine , 1064nm 3D Laser Glass Etching Machine from wholesalers

    Buy cheap Curve Metal 3D Laser Engraving Machine , 1064nm 3D Laser Glass Etching Machine from wholesalers
    • Buy cheap Curve Metal 3D Laser Engraving Machine , 1064nm 3D Laser Glass Etching Machine from wholesalers

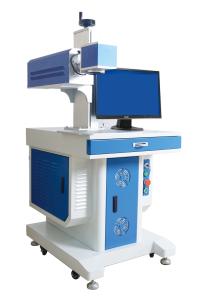

    Curve Metal 3D Laser Engraving Machine , 1064nm 3D Laser Glass Etching Machine

    Ask Lasest Price
    Brand Name : MRJ-Laser
    Model Number : MRJ-FL-3D
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T,paypal
    • Product Details
    • Company Profile

    Curve Metal 3D Laser Engraving Machine , 1064nm 3D Laser Glass Etching Machine

    Curve Metal 3D Laser Engraving Machine , 1064nm 3D Laser Glass Etching Machine


    Product Description

    KR-3D serial fiber laser marking machine adopt imported core components, with high-speed, high precision 3D galvo, and with our 3D specified software and control system, it can engrave on any curved workpieces in a fine process, there is no off-focus problem. It can also adjust focus length any time for deep engraving, which makes process efficiency and marking quality much better than traditional 2D fiber laser marking machine. We make real 3D marking function come true, leading a new era of laser processing.


    Product Performance Parameters


    ModelKR-FL-3D20KR-FL-3D30KR-FL-3D50
    Output power20W30W50W
    Pulse Energy1.2MJ1.3MJ1.5MJ
    Repetition FREQ.20K-80KHz30K-80KHz50k-120khz
    Laser Wavelength1064nm1064nm1064nm
    Marking Field≤300mmx300mm≤400mmx400mm≤700mmx700mm
    Min. Line Width30um30um30um
    Marking Speed≤6000mm/s≤6000mm/s≤6000mm/s
    Support FontTrueType Font, AUTOCAD Single Line Font, Custom Font
    1D BarcodeCODE39/CODE128/ITF/CODEABAR/EAN/UPC, etc.
    2D BarcodeOR/PDF417/DataMatrix(ECC200), etc.
    Input FilePLT/DXF/DWG/BMP/JPG/JPEG/PNG/TLF, etc.
    3D ModelSupport STL Format
    Input PowerSingle Phase 110V/220V/50-60Hz
    Overall Power Consumption≤600w≤800w≤1000w
    Cooling MethodAir CoolingAir CoolingAir Cooling
    Control InterfaceUSB2.0USB2.0USB2.0

    System Characteristic:


    The max marking field is 400x400mm, the max scan height is 130mm;

    The galvanometer scanner focus beam size is 50um, response speed can meet precision filling up to 5000mm/s;

    Support 3D model importing, and 2D graphics can be directly coated or projected on the built-in commonly used curved surface;

    Equipped with shining blue LED and unique streamlined design of marking head, specially applied for high-end laser market;

    Adopted the integrated structure, small size, fine sealing, to ensure the stability of long time working.
