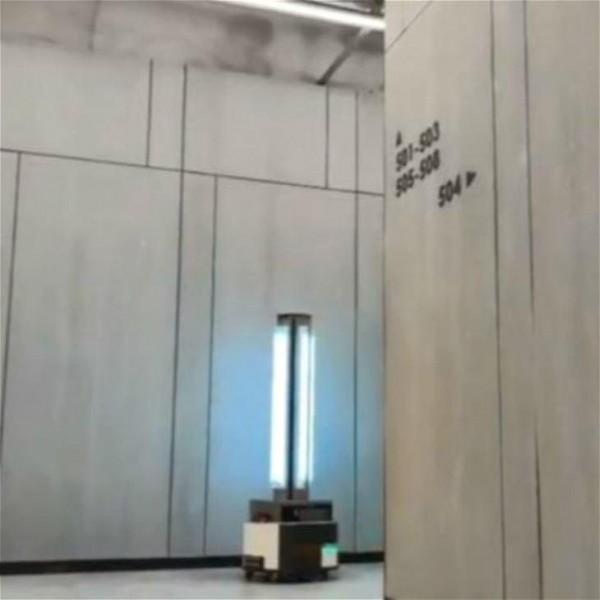

Multi Point UV Disinfection Robot / Mobile Anti Epidemic Uv Robot
Cleaner
Product Description
* Ultraviolet indoor mobile multi-point disinfection;
* Configure infrared body temperature monitoring, body temperature
detection during the day, disinfection at night;
* The industry's largest power efficiency elimination, cumulative
UV light intensity up to 270UV / CM2;
* The laser SLAM algorithm completes the construction and
positioning of the global environment map;
* Complete and mature cognitive and positioning navigation
capabilities;
* Ultraviolet disinfection robot is suitable for mobile regional
disinfection in shopping malls, stations, office spaces, production
sites, etc;
* The UV disinfection anti-epidemic robot complies with [National
Standard] GBT 30030-2013 Automatic Guided Vehicle (AGV);
* UV disinfection conforms to [National Standard] GB 19258-2012 UV
sterilization lamp.
Product Detail
UV disinfection
360 degree radiation
Safe obstacle avoidance
Automatic charging | Wireless transmission
Language warning
Thermography
Autonomous navigation |
Features
* Using a robot as a carrier, it is carrying out autonomous mobile
anti-virus and intelligent disinfection and sterilization system on
the surface and air of environmental objects;
* Optional infrared camera, personnel temperature detection,
automatic alarm for abnormal body temperature;
* For shopping malls, public places, office places, production and
processing, the flow of personnel is large and the number of people
is dense
Area, which fully compensates for the traditional fixed air
disinfection machine, ultraviolet lamp, chemical fumigation
Lack of
* The robot is equipped with 6 ultraviolet lamps, covering and
disinfecting in 360 degrees. Have a good environment
The killing effect of watch and air;
* The robot has autonomous navigation technology and moves
autonomously, with automatic obstacle avoidance;
* Autonomous charging system guarantees 24/7 uninterrupted
operation;
* The ultraviolet disinfection robot uses 6 ultraviolet lamps with
a non-ozone 254nm wavelength. Non-ozone makes the elimination; the
process is safer, non-toxic and no residue. 6 lamps cover all
directions, the cumulative light intensity is 270UV / CM2, the
coverage radius is 6 meters;
* The disinfection robot has autonomous navigation technology and
moves autonomously. It can identify items in the environment and
achieve autonomous obstacle avoidance. It is equipped with
disinfection management software, which automatically calculates
the disinfection time according to the space area and quantitative
management of the disinfection process. Ensure the safety of
personnel;
* Optional infrared body temperature camera can be placed in gates
and other places where people flow heavily to automatically monitor
the body temperature of passing people. If the body temperature
exceeds the set threshold, an alarm sounds. Avoid close-range
temperature measurement, effectively prevent close contact with
infected people.
Technical Features
Category | Item | Parameter |
Material of body | Material of body | Cold rolled steel + plastic |
Size | Size | 580x500x1200mm |
Weight | Weight (including battery) | 50KG |
Ambient temperature | 5 to 40 degrees |
Ambient humidity | Relative humidity 5 to 95% (no condensation) |
Running environment | Indoor use only, no excessive dust, no corrosive gas |
Environmental conditions | Protection level | IP20 |
Cleanliness grade | Class100 |
Antiskid coefficient of ground | >0.5 |
Ground requirement | Horizontal ground for concrete pouring (without water, oil or dust) |
Minimum flatness of ground | Ff25 (* AC1117 standard) |
Vertical obstacle surmounting ability | 10mm |
Ability to cross gullies | ±20mm |
Ground conditions | Climbing ability | 5° |
Path selection | Secure scanning lidar based on envir |
