Heavy Duty Digital Load Cells For Scales ZEMIC Load Cell 30 Ton Easy Installation

    Buy cheap Heavy Duty Digital Load Cells For Scales ZEMIC Load Cell 30 Ton Easy Installation from wholesalers

    Buy cheap Heavy Duty Digital Load Cells For Scales ZEMIC Load Cell 30 Ton Easy Installation from wholesalers
    • Buy cheap Heavy Duty Digital Load Cells For Scales ZEMIC Load Cell 30 Ton Easy Installation from wholesalers
    • Buy cheap Heavy Duty Digital Load Cells For Scales ZEMIC Load Cell 30 Ton Easy Installation from wholesalers

    Heavy Duty Digital Load Cells For Scales ZEMIC Load Cell 30 Ton Easy Installation

    Ask Lasest Price
    Brand Name : ZEMIC
    Model Number : HM9B
    Certification : ISO OIML CE
    Price : Negotiated price
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 5~15days
    • Product Details
    • Company Profile

    Heavy Duty Digital Load Cells For Scales ZEMIC Load Cell 30 Ton Easy Installation

    Heavy duty Digital type ZEMIC load cell 30 Ton for Truck Scale


    Product introduction

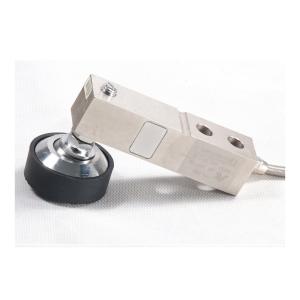

    • Nickel plated alloy steel IP68 dual shear beam load cell
    • High accuracy
    • Suitable for truck, track, hopper and other electronic weighing devices
    • Current calibrated (sc-option)

    Available models

    CapacityAccuracyFull article description
    10 tC3HM9B-C3-10t-16B
    20 tC3HM9B-C3-20t-16B
    25 tC3HM9B-C3-25t-16B(-SC)
    30 tC3HM9B-C3-30t-16B(-SC)
    40t LEC3HM9B-C3-40t LE-16B
    40 tC3HM9B-C3-40t-16B
    50 tC3HM9B-C3-50t-16B

    Specification

    Specification
    Accuracy classOIML R60 C3
    Output sensitivity ( = FS )mV/V2.0 ± 0.002
    Maximum capacity ( Emax )t10/20/2530/40LE/40/50
    Maximum number of load cell intervals ( nLC )3000
    Ratio of minimum LC verification interval Y = Emax / vmin150007500
    Combined error%FS± 0.023
    Minimum dead loadklb0
    Safe overload%FS150
    Ultimate overload%FS300
    Zero balance%FS± 1.5
    Excitation, recommended voltageV5 ~ 12( DC )
    Excitation maximumV18( DC )
    Input resistanceΩ700 ± 7
    Output resistanceΩ700 ± 7
    Insulation resistance≥ 5000 ( 50VDC )
    Compensated temperature-10 ~ +40
    Operating temperature-35 ~ +65
    Storage temperature-40 ~ +70
    Element materialNickel plated alloy steel
    Ingress protection (according to EN 60529)IP68
    ATEX classification (optional)II1G Ex ia IIC T4II1D Ex iaD 20 T73℃II3G Ex nL IIC T4
