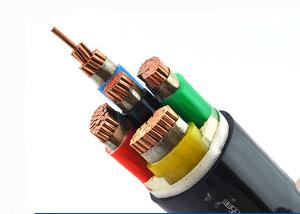

Cu - Conductor 5 Core Heat Resistant Cable , LSZH Power Cables
Unarmoured
Heat Resistant Cable introduction:
Place of Origin: China Mainland
Brand Name: Shenzhen Chentiantai Cable
Certification: CE, CB, CCC
Model Number : YJV
Minimum Order : 500 m
Price : On Request
No. Of Conductor: 5Core
Insulation: XLPE
Sheath: PVC Compound
Conductor Material: Bare Copper Class 2
Heat Resistant Cable Application
It is suitable for subway, high-rise buildings, shopping malls,
theaters, power stations, chemical factories, city squares and
other public utilities with rated AC voltage of 450 / 750V and
below, which have high requirements for flame retardant
characteristics of cables.
No.cores× cross-sec. | Insulation thickness | Nominal Sheath thickness | Outer Ø approx. | Weight approx. | Current Ratings in air 30℃ | Current ratings buried 20℃ | Maximum DC resistance at 20℃ |
| mm² | mm | mm | mm | Kg/km | A | A | Ω/km |
| 5×4 | 0.7 | 1.8 | 14.7 | 320 | 38 | 48 | 4.61 |
| 5×6 | 0.7 | 1.8 | 15.8 | 427 | 48 | 60 | 3.08 |
* The ampacity of cable will be directly affected by the lay-out
methods and the ambient temperature.
Heat Resistant Cable Advantage:
The characteristics of the cable are halogen-free low smoke and low
halogen low smoke. When a fire occurs, the spreading speed is slow,
the smoke concentration is low, the visibility is high, and the
release of harmful gases is small, which is convenient for
evacuation. The combustion gas is less corrosive, which also avoids
the damage to the instrument and equipment. The characteristics of
low halogen and halogen-free make the cable material greatly
improve its aging
resistance, UV resistance and other radiation resistance, thus
prolonging the service life of the cable.
Other Information:
Packaging Details: Coil in foil
Delivery Time: 15 working days
Payment Terms : L/C, T/T
Assembly / Inner Covering
The inner coverings may be extruded or lapped. For cables with
circular cores, except cables with more than five cores, a lapped
inner covering shall be permitted only if the interstices between
the cores are substantially filled. A suitable binder is permitted
before application of an extruded inner covering. The material is
compatible with the insulating material,The materials used for
inner coverings and fillers shall be suitable for the operating
temperature of the cable and compatible with the insulating
material.For halogen free cables, the inner covering and fillers
shall also be halogen free compound.
Armour
Aluminum/galvanized steel/steel wires applied helically over the
Inner Covering as per IEC 60502-1, or double aluminum/steel tapes
and copper/tinned copper wire can also be manufactured upon
request.
Fire Performance of Cable Sheaths
Cables can be supplied with special flame retardant PVC outer
sheath to comply with the flame test requirements of IEC
60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free
material comply to IEC60754-1/2 and IEC 60684-2.
| CUSTOMER SERVICES | Did you know? |
We manufactures a comprehensive array of wires and cables to meet
diverse market needs.
We look forward to assisting you in identifying the best products
for your specific application and to answer any questions you might have.
Head office: Chentiantai Industrial Park, Lisonglang community ,
Gongming office, Guangming district , Shenzhen P.R. China 518106
| . Shenzhen Chengtiantai Cable operates certified management systems
compliant with: ISO 9001:2008/ ISO14001:2004/OHSAS 18001 : 2007 . Cable production started 1983 . 35 years of cable manufacturing experience ·Sales in 2016 about 500 million USD .100,000m² production area .350 will-trained employees .8 workshops .1 R&D Center
|
Because we continuously improve our products, CTT Cable reserves
the right to change specifications and availability without prior
notice.
