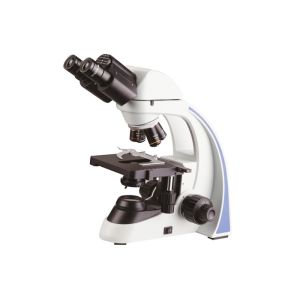

    Integrated Design Science Edu Microscope Achromatic Objective Binocular Compound Microscope

    Ask Lasest Price
    Brand Name : vanco
    Model Number : VB-2018
    Certification : CE
    Price : Negotiable
    Supply Ability : 500PCS/Month
    Delivery Time : According to order quantity
    • Product Details
    • Company Profile

    Integrated Design Science Edu Microscope Achromatic Objective Binocular Compound Microscope

    VB-2018 Series New Developped Biological microscope


    This series microscope is a newly developped fashion designed and high precision instrument designed and produced by our company.It is sepcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.

    Specification:


    VB-2018

    ModelVB2018
    Optical SystemFinite Color Corrected Optical System
    Viewing Head30°inclined binocular viewing head; interpupillary distance: 50mm~75mm; single diopter adjustable
    EyepieceHigh eye point wide filed WF10x/18mm, or plan eyepiece PL10X/18mm(with pointer for option)
    ObjectiveAchromatic objective 4X/10X/40X/100X
    Plan achromatic objective 4X/10X/20X/40X/100X
    NosepieceQuadruple nosepiece
    Quintuple nosepiece
    FrameIntegrated design, coaxial focus system with upper limited and tension adjustment, coarse range: 28mm; fine precision: 0.002mm; provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device
    Stage140mm*132mm double layers stage, moving range: 76mm*50mm, precision: 0.1mm
    CondenserN.A.1.25 ABBE Condenser and Iris Diaphragm
    IlluminationWide voltage 100V~240V, intensity adjustable by power switch, 3W LED, bulb center preset
