Simple Operation High Pressure Slurry Pump Industry Displacement Pump For Tunnel

    Buy cheap Simple Operation High Pressure Slurry Pump Industry Displacement Pump For Tunnel from wholesalers

    Buy cheap Simple Operation High Pressure Slurry Pump Industry Displacement Pump For Tunnel from wholesalers
    • Buy cheap Simple Operation High Pressure Slurry Pump Industry Displacement Pump For Tunnel from wholesalers

    Simple Operation High Pressure Slurry Pump Industry Displacement Pump For Tunnel

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KBW-150
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

    Simple Operation High Pressure Slurry Pump Industry Displacement Pump For Tunnel

    High Pressure Slurry Pump Industry Screw Pump Displacement Pump Used In Tunnel

    Mud Slurry Pump Features:

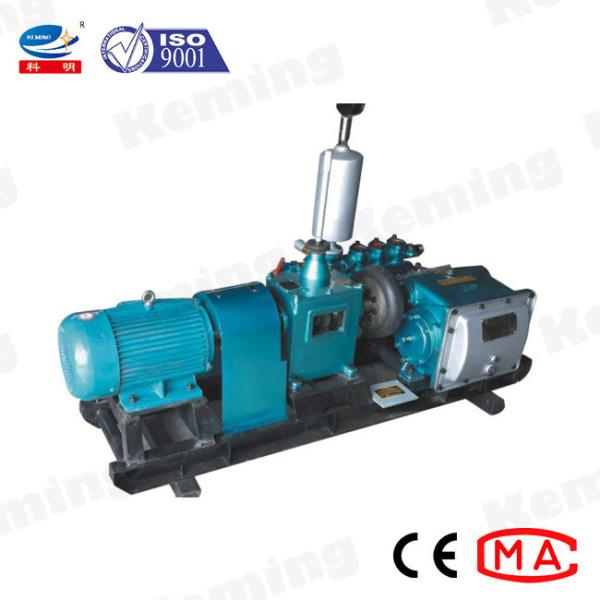

    1. KBW-150 mud slurry pump is horizontal triplex reciprocating single-acting piston pump.

    2. Eight gear shift to adjust the flow, large output capacity, simple operation.

    3. High quality pump parts, less energy consumption, less wearing parts, long service life.

    4. Flexible manipulation, easy dismantlement and move.

    Mud Slurry Pump Application:

    1. KBW mud slurry pump is widely used for grouting and mud jacking in engineering construction.

    2. It can be used to grout borehole flushing fluids (mud, clean water, saponification liquid), equipped with minor-caliber diamond drilling machine for drilling within 1500m, or used for middle-lower pressure cement grout.

    Mud Slurry Pump Parameters:

    Model
    KLW-150 mud slurry pump
    Pump type
    Horizontal type
    Function
    Single acting
    Cylinder number
    3
    Cylinder diameter
    70mm
    Piston stroke
    70mm
    Input speed
    1500 r/min
    Max. suction speed
    2.5m
    Suction pipe ID.
    50mm
    Discharge pipe ID.
    32mm
    Motor
    7.5kw
    Weight
    560kg
    Dimensions (L×W×H)
    19250×795×1150 mm
    Stroke frequency, Output, Pressure
    Handle lever position
    High 4
    High 3
    High 2
    High 1
    Low 4
    Low 3
    Low 2
    Low 1
    Stroke frequency
    (min-1)
    222
    130
    86
    57
    183
    107
    71
    47
    Output
    (L/min)
    150
    90
    58
    38
    125
    72
    47
    32
    Pressure
    (MPa)
    1.8
    3.2
    4.8
    7.0
    2.3
    4.0
    6.0
    7.
