Adjustable Loading Dock Ramp Mobile Loading Ramp With Manual Hydraulic Pump

Hydraulic Mobile Loading Ramp With Manual Hydraulic Pump Usually For Container Loading

Description:

• Hydraulic Mobile Loading Ramp are suitable for goods loading and unloading to container trucks or trailers, particularly in warehouses that do not have ready loading docks.
• KING-LIFT offers Mobile Loading Ramp, which can serve up to 3t forklifts at full load capacity. Standard length is about 11 meter, allowing the forklift to climb up and roll down safely without too much inclination.
• These steel loading ramps are lifted and lowered with a built-in pump and can be operated either by manual pumping or through electrical power. They are designed to be movable and can be transported from one area of the warehouse to another by using a forklift. Their robust and ready-to-use design makes them the perfect solution for warehouses that do not have a raised floor to cater for incoming trucks.

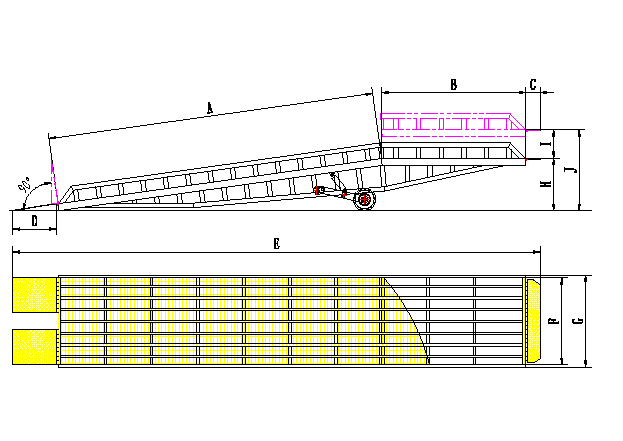

Hydraulic mobile loading ramp size can be customizable

Main Features:

• 1. 300mm/400mm length of reinforced diamond lip
• 2. Heavay duty deck construction with grid plate on top surface.
• 3. Anti-skid high-strength steel grid plate prevent forklift drive skid on it
• 4. Heavy duty solid tyre with brake block or air inflation tyre option
• 5. Dia 80mm heavy duty high pressure hydraulic cylinders
• 6. Steel grid plate , which is hollow, so it can prevent grease, dirt, rain and snow accumulation
• 7. Manual hydraulic operation, which is suitable for explosion proof place and inflammable places.

Optional Configuration:

• Electrical hydraulic or manual hydraulic operation optional
• 300mm or 400mm lip
• With supporting leg or no need.

Applications:

1. Site: Work Shop, logistic center, warehouse, factory, explosion proof &inflammable places, etc.
2. Hydraulic mobile loading ramp use: Loading/unloading Cargo etc.

Hydraulic Mobile Loading Ramp Safety Precaution:

1. Chain of the loading dock ramp lock with lorry tail. let the dock ramp platform tight with the truck tail.

2. Wheel chock let the mobile loading ramp can not movement when it loading and unloading goods from truck.

3. Support leg let the yard loading ramps more stable when loading and unloading goods from lorries.

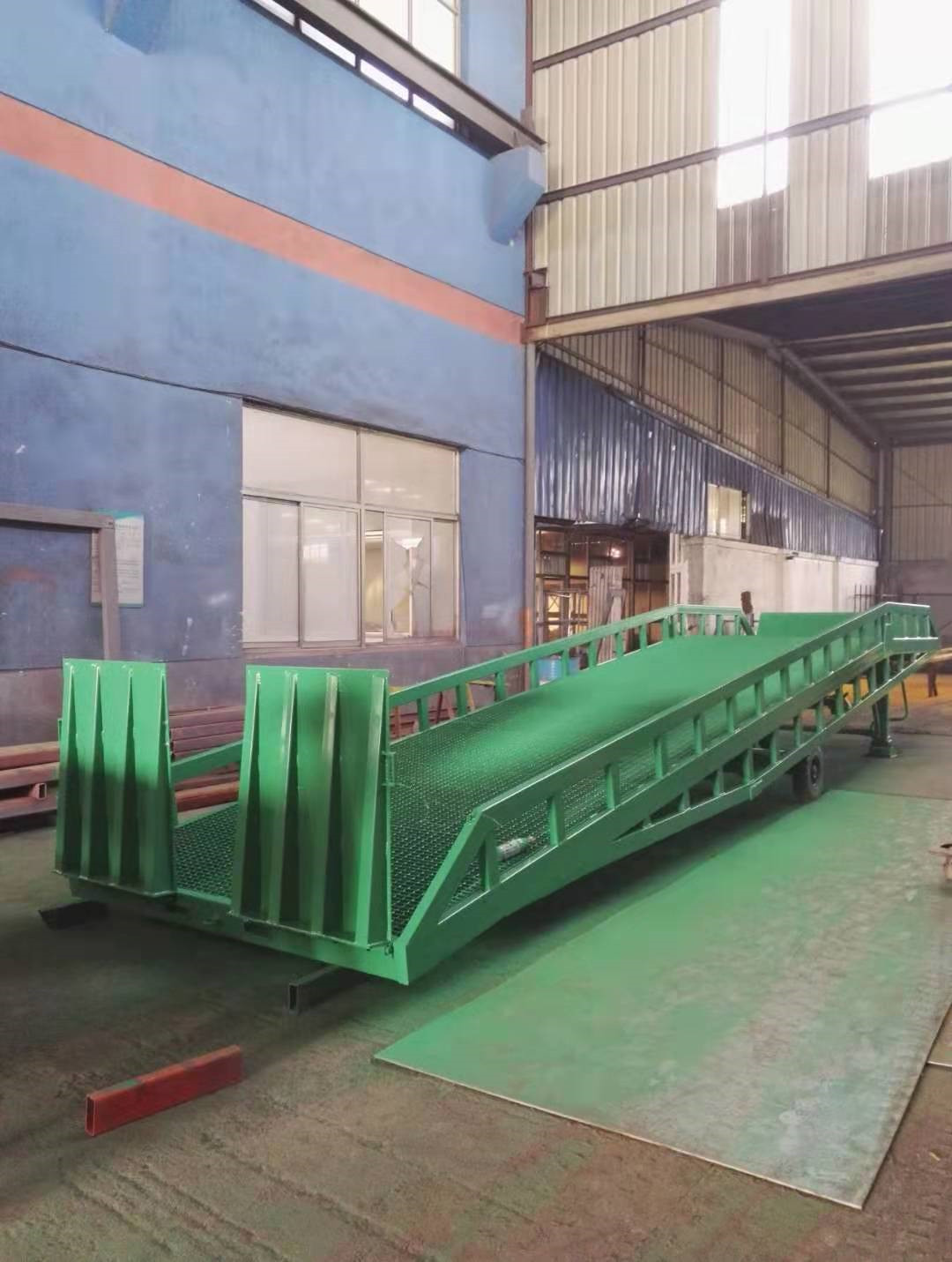

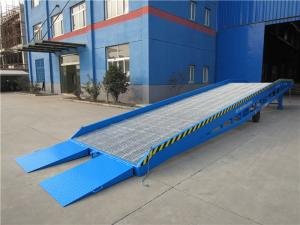

Hydraulic Mobile Loading Ramp pictures:
