    Rugged Waterproof Android 8 Inch Panel No Contact Facial Recognition Terminal with RS232 RS485,USB,Relay

    Ask Lasest Price
    Brand Name : Sibo Or OEM
    Model Number : SV-1081D
    Certification : CE
    Payment Terms : PayPal,Bank Wire,Western Union etc.
    Supply Ability : over 3000 units each month
    Delivery Time : 7 days for sample order,25 days for batch order
    • Product Details
    • Company Profile

    Rugged Waterproof Android 8 Inch Panel No Contact Facial Recognition Terminal with RS232 RS485,USB,Relay


    Rugged Waterproof Android 8 Inch Panel No Contact Facial Recognition Terminal with RS232 RS485,USB,Relay


    No Contact, indoor/outdoor, access management, temperature measurement & face recognition uses Rockchip RK3288 / RK3399 / Qualcomm MSM8953 high-performance hardware platform, equipped with industrial-class binocular camera, live face recognition technology and infrared thermal imaging module to support face-with-mask identify. It also supports expansion of various peripherals such as ID card readers, fingerprint readers, etc., which can be applied to gate passages and attendance system to achieve safe and efficient access control for personnel.
    Building Automation Facial Recognition Body Temperature Sensor 8 Inch Android Wall Screen Terminal
    Building Automation Facial Recognition Body Temperature Sensor 8 Inch Android Wall Screen Terminal
    Building Automation Facial Recognition Body Temperature Sensor 8 Inch Android Wall Screen Terminal
    * Supports accurate face recognition and comparison while wearing a mask.
    * The measurement error is plus or minus 0.5 ℃.
    * It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.
    Building Automation Facial Recognition Body Temperature Sensor 8 Inch Android Wall Screen Terminal

    DIMENSIONS
    ModelSW-1081D
    CameraResolution2 million pixels
    TypeBinocular wide dynamic camera
    ApertureF2.4
    Focusing distance50-150cm
    White balanceauto
    Photo flood lightLED and IR dual photo flood light
    ScreenSize8.0 inch IPS LCD screen
    Resolution800×1280
    TouchNot supported (optional support)
    ProcessorCPURK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core)
    StorageEMMC 8G
    InterfaceNetwork moduleEthernet and wireless (WIFI)
    Audio2.5W / 4R speakers
    USB1 USB OTG, 1 USB HOST standard A port
    Serial communication1 RS232 serial port
    Relay output1 door open signal output
    WiegandOne Wiegand 26/34 output, one Wiegand 26/34 input
    Upgrade buttonSupport Uboot upgrade button
    Wired network1 RJ45 Ethernet socket
    FunctionCredit card readerNone (optional IC card reader, ID card, ID card)
    Face DetectionSupports detection and tracking of multiple people at the same time
    Face libraryUp to 30,000
    1: N face recognitionSupport
    1: 1 face comparisonSupport
    Stranger detectionSupport
    Identify distance configurationSupport
    UI interface configurationSupport
    Upgrade remotelySupport
    InterfaceInterfaces include device management, personnel / photo management, record query, etc.
    Deployment methodSupport public cloud deployment, privatized deployment, LAN use, stand-alone use
    Infrared thermal imaging moduleTemperature detectionSupport
    Temperature detection distance1 meter (optimal distance 0.5 meter)
    Temperature measurement accuracy≤ ±0.5℃
    Temperature measurement range10℃~42℃
    Thermal field of view32 X 32℃
    Visitors' temperature is normal and released directlySupport
    Abnormal temperature alarmSupport (temperature alarm value can be set)
    General parametersPowerDC12V(±10%)
    Operating temperature0℃~60℃
    Storage temperature-20℃~60℃
    Power consumption13.5W(Max)
    Installation methodGate bracket installation
    SizeStandard:274.24*128*21.48(mm)

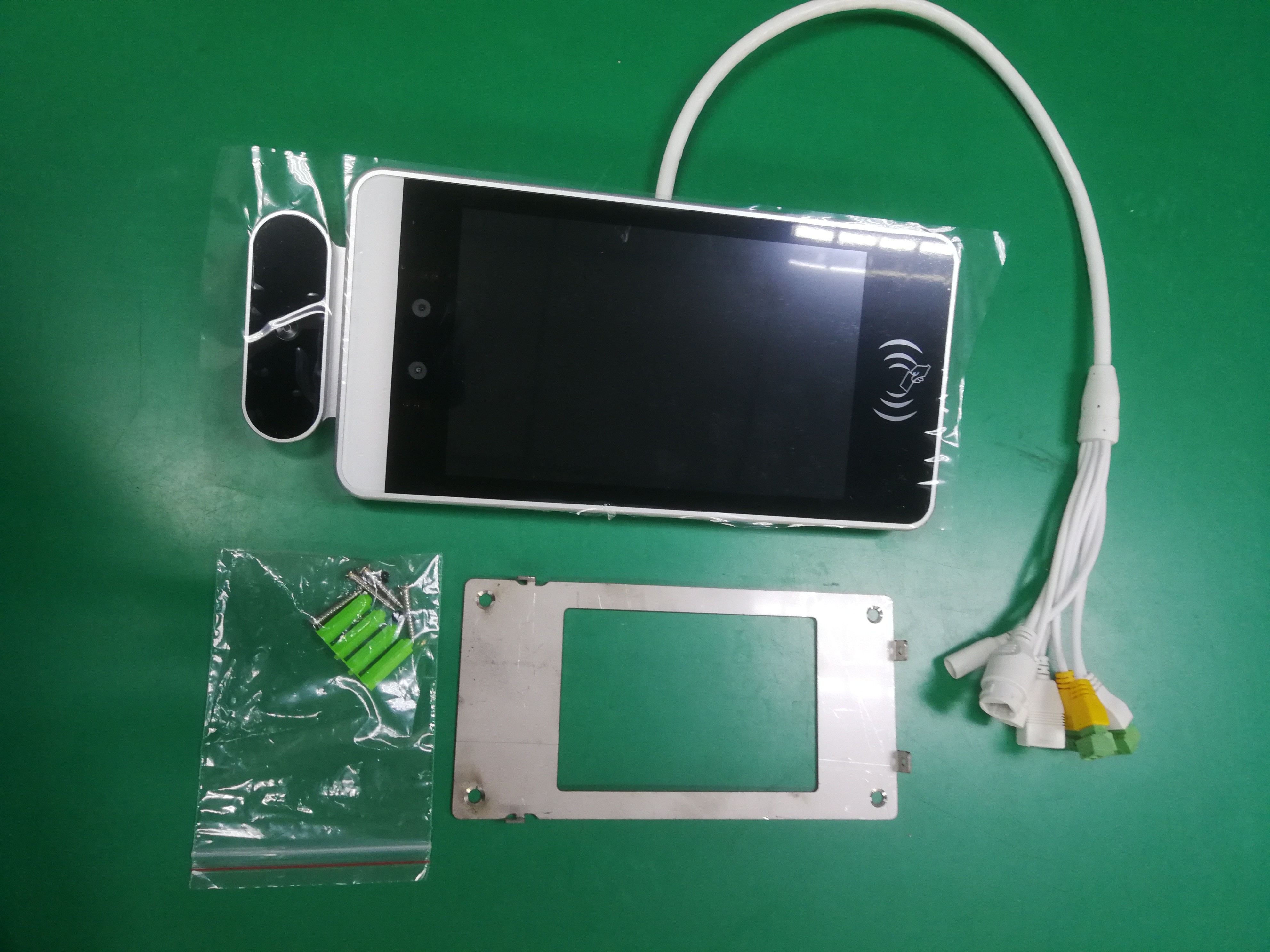

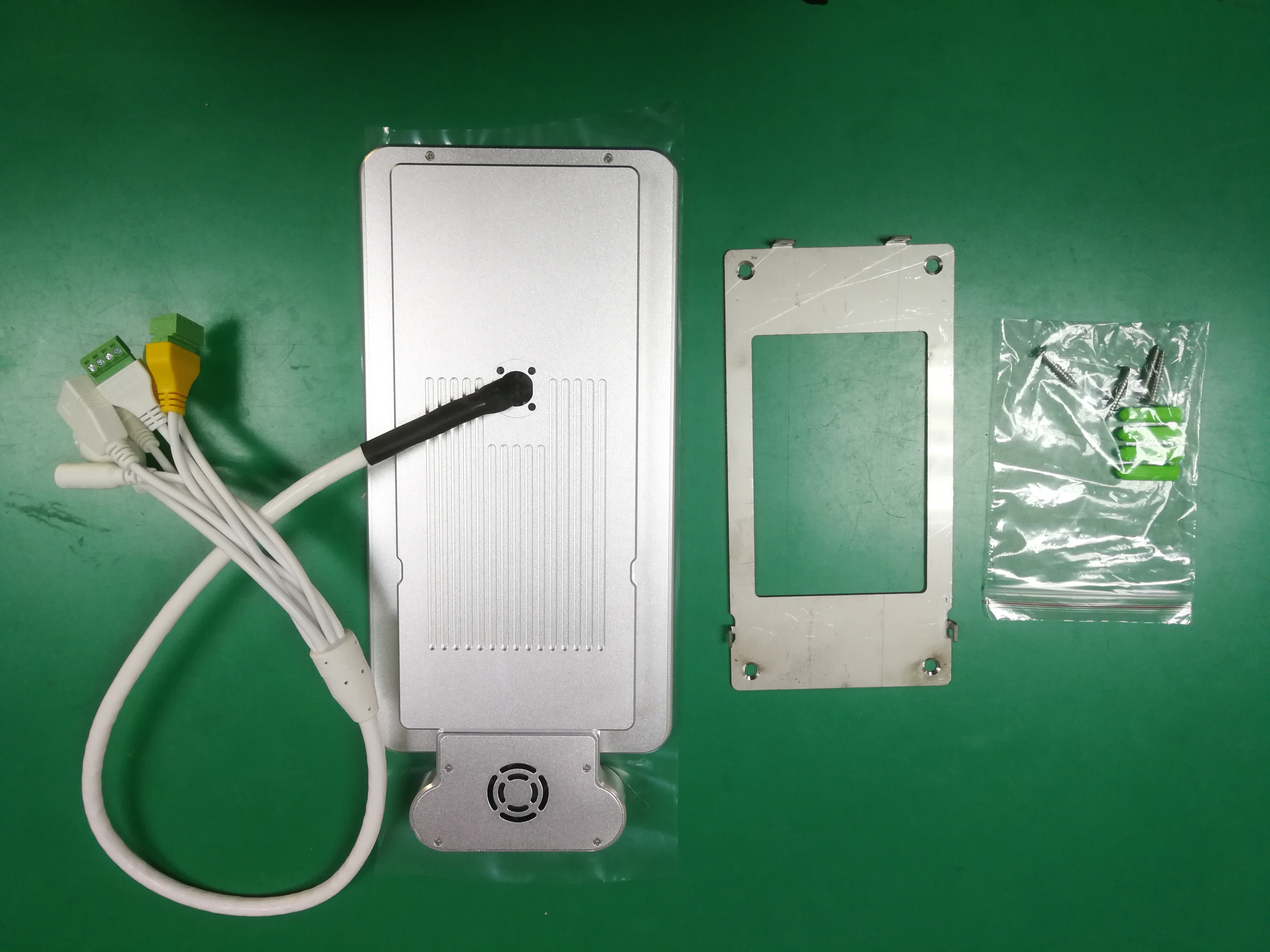

    Packing ListMachine * 1, power adapter * 1, manual * 1, certificate of conformity * 1

    WIRE INTERFACE

    7 Wire Interface:
    Building Automation Facial Recognition Body Temperature Sensor 8 Inch Android Wall Screen Terminal
    9 Wire Interface:
    Building Automation Facial Recognition Body Temperature Sensor 8 Inch Android Wall Screen Terminal
    INSTALLATION
    Wall mount:
    Building Automation Facial Recognition Body Temperature Sensor 8 Inch Android Wall Screen Terminal
    Stand mount:

    Building Automation Facial Recognition Body Temperature Sensor 8 Inch Android Wall Screen Terminal



    Building Automation Facial Recognition Body Temperature Sensor 8 Inch Android Wall Screen TerminalBuilding Automation Facial Recognition Body Temperature Sensor 8 Inch Android Wall Screen Terminal

    Building Automation Facial Recognition Body Temperature Sensor 8 Inch Android Wall Screen Terminal
    Building Automation Facial Recognition Body Temperature Sensor 8 Inch Android Wall Screen Terminal

    Q&A

    Q:Are you manufacturer?
    Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.


    Q: What is the minimum order?
    We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

    Q: Can we get the free sample?
    Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.


    Q: What's Your MOQ?

    To support customer, ERhino Industrial PDAs devices/rugged phones MOQ quantity will be 1 piece,we can even customized with your logo if needed.


    Q: Can i choose multiple function into 1 device?

    A: Yes, you can choose multiple fuction into one rugged tablet, optional functions:NFC,RS232/RS485/GPIO,LED Light etc.


    Q: How to order and pay?

    A: We accept T/T (bank transfer), Western Union,Paypal etc.


    Q: What's Your Products Warranty?

    A: We Offer 12 Months Warranty after shipment sent.


    Q: How long it will take for delivery?

    A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.


    Q:How to repair the device if any problem ?

    A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.


    Q: Can you do customized and preload our software?

    Yes, with many years electronic products manufacturing experience, we can support customized order for you.

    We are a leading company doing honest business in the internat market for years and always get positive feedback from our worldwide customers.
