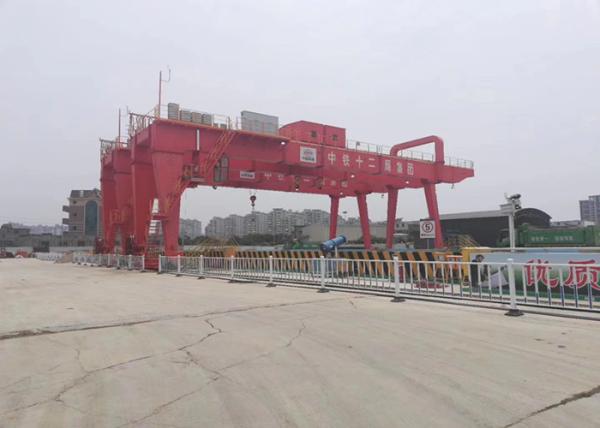

Warehouse Material Lifting Motorized Travelling 5 ton Gantry Crane
Brief introduction:
Double girder gantry crane 25 ton 40-80 ton for outdoor
workshops.At the same time, we can also customize the gantry crane
according to your specific requirements, including lifting weight,
overall size design, etc.
It is of advanced technology, whose design is based on
international standard: FEM (Europe), DIN (Germany),
ISO(International), equipped with many advantages such as: strong
rigidity, light dead weight, low power, outstanding structure
design etc. The configurations are very advanced, such as Schneider
electricals, ABM/Nord / SEW triple gear motor (three in one: motor,
gear box, brake), galvanized high strength wire rope, self-adjusted
disk brake, hard tooth reducer, programmable lifting limit switch,
and so on.
Product Application:
Double girder gantry cranes are suitable for large span, frequently
loading and unloading railroad freight yard, the port, open
storage, container depots etc. applicable to long, large, bulky
cargo and container handling operations.
These are our standard products, we can provide customized products
as your demands.
Capacity (t) | Span (m) | Lifting Height (m) | Work Duty | Main Hoist Speed
(m/min) | Aux.Hoist Speed
(m/min) | Cross Travel Speed
(m/min) | Long Travel Speed
(m/min) | Rail | Total Power (Kw) |
10
| 18~35
| 10
| A5
| 0.78-7.8
|
| 3.3-33
| 3-30
| 43kg/m
| 21.74
|
20/5
| 18~35
| 10
| A5
| 0.6-6
| 0.78-7.8
| 3.5-35
| 3-30
| 43kg/m
| 39.7
|
32/5
| 18~26
| 10
| A5
| 0.5-5.2
| 0.78-7.8
| 3.1-31
| 3-30
| 43kg/m
| 59
|
26~35
| 12
|
50/10
| 18~26
| 10
| A5
| 0.4-3.9
| 0.78-7.8
| 3.6-36
| 3-30
| 43kg/m
| 71.4
|
26~35
| 12
|
75~1000
| Customized |
Notes: If you want to ask any questions about this product directly
with us, pls click here !
Electric system
Module control speed, micro-speed and double speed;
Traveling and lifting smoothly;
The power for trolley moving adopts flat cable, sliding smoothly;
Control box layout is reasonable, easy to repair;
Protection class IP55;
Optional main power source ;
All external cable line number with mark;
Safety smooth touch line, high conductivity, small pressure drop;
Light weight, installation convenience;
Set electric taxi speed is high, ensure continuing power supply;
Optional speed control module, and can realize the micro speed and
double speed.
Protection device
Preventing hook clashing the top, set shields and barriers
Circuit self-test protection device,Running the travel limit
Protecting the current lacking of any phase.
Outdoor cranes are equipped with lifting mechanism, electrical
control box and rainproof devices.
Anti-collision, sound and light alarm devices.
Equipped with rail clamp.
Lifting weight limitation, height limitating, rail clamping device
Speeding protection, zero pressure protection, the lightning
protection
Operation device
Capsule driver room, eye shot is open,Linkage machine control, easy
to operate
Double block button or lever type lever,Smooth operation and
accurate
Remote control, no need of professional driver.
Following type or slide-independent, non-following suspension
Protection class IP65
Life of 500000 times; remote control, very easy;
With strong waterproof, fight broke performance
Features :
1. Weight overload protection device, Top quality long time bearing
polyurethane materials buffer, Crane traveling limit switch,
Voltage lower protection function, Emergency stop system, current
overload protection system and so on!
2.Control method: Pendent line with press button or remote control
or both.
3.Design and construction rules: All the standards which is
required for the crane is the Chinese standard.
Packing & Delivery terms:
1. Hoist and electric parts will be packed by plywood crate, for
avoiding the demage from goods crash and impact during the
delivery.
2. Girders and other main parts will be packed by plastic woven
cloth, for preventing rust from soppy condition during the
transportation.
3. Only the best transport solution will be taken for saving your
cost uttermost on finance, security and time.
Our Services
All the machines will be full tested before shipment
Technical supports and suggestions before you order a machine
according to your work place.
Professional opertion instruction of the machine.
12 months warranty period and we will provide the consumable parts
at cost price after the warranty period.
24-hour technical support by emails, calling or videos.
FAQ
Q. What's the information should I provide when inquiry? More
details or drawings, better.
A: Lift capacity B: span C: lift height D: power source other
specials
you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with
push buttons C: cabin(space capsule seat) control with joystick.
Choose any type as you like.
Q. Can this type of work in a hazardous environment?
A: Sure! We can customize for you, acid proof or explosion-proof,
no problem with that.
Q. Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt,
lift clamp, grab,
magnet or other specials as your requirement!
Q. Safety device
A: Overload limiter, Limit Switch (lifting and traveling),
Interlock protection device.
