Four Way Power Splitter RF Power Divider With 2.92 Female Connector
1 Four way power splitter information:
Power dividers and combiners are often referred to as splitters.
While this is technically correct, engineers typically reserve the
word “splitter” to mean an inexpensive resistive structure that
splits power over very wide bandwidth, but has considerable loss
and limited power handling.
A power divider divides an incoming signal into two (or more)
output signals. In the ideal case, a power divider can be
considered loss-less, but in practice there is always some power
dissipation. Because it is a reciprocal network, a power combiner
can also be used as a power combiner, where two (or more) ports are
used to combine input signals into a single output. Theoretically,
a power divider and a power combiner can be the exact same
component, but in practice there may be different requirements for
combiners and dividers, such as power handling, phase matching,
port match and isolation.
2 Selling points about four way power splitter :
| Low VSWR, |
High power rating |
| Low PIM |
| Multi-Band Frequency Coverage |
| Low Cost Design, Design to Cost |
| High Reliability and Maintenance free |
Multiple IP Degree Conditions |
| RoHS Compliant |
| Custom Designs Available |
| N , DIN 4.3-10 connectors |
3 Quick details:
Frequency range: 800-2700mhz/800-2500mhz/380-2500mhz
Impedance: 50ohm
Max power : 50w
| Frequency range | 800-2700mhz/800-2500mhz/380-2500mhz |
| Impedance | 50ohm |
| Insertion Loss | Less than 3.5db |
| Dimension | 230mm*120mm*30mm |
| Max power | 50w |
| Connector | N |
| VSWR | 1:1.3 |
| Weight | 0.675kg |

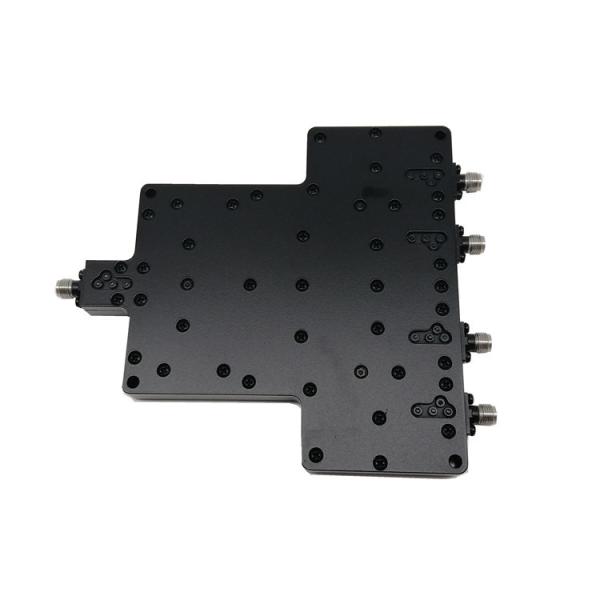

4 Picture about four way power splitter
5 FAQ
Q. What are the advantages of your product?
A. Every part has different advantage, but here are some basic
advantages, such as: low insertion loss, low VSWR,com
Q: Are you a manufacturer?
A: Yes , we are a manufacturer, not agent. We have own factory,
which is located in Sichuan,CHINA.
Q: How does your factory do regarding quality control?
A: Quality is priority, we always attach great importance to
quality controlling
Q. How many years have you engaged in this business?
A:Our company have engaged in this business 13 years, and we are
professional in microwave communication devices and microwave
passive components research, production, sales and services.
Q. What about terms of payment?
A:Payment terms: T/T, west Union PayPal and L/C etc.
Q.How will you send the products to us?
A:We will send the products to you by DHL, FEDEX, UPS, EMS, AIR
etc.
