Square Type Water Downpipe Roll Forming Machine With Elbow Machine PLC Control
1. We do Best, About Machine
1) To produce the best machine, BEST is taking Downpipe Roll Forming Machine quality standard;
2) Choose the best material and components, and adopting our 10+ years experience;
3) BEST achieves that the machine capacity is double of the competitors;
4) The machine working speed can be 10m/min;
5) Only 1 worker to operate for roll forming machine .
2. We do Detail, Machine Parameters
| Product Name | Downpipe Roll Forming Machine |
| Thickness | 0.45-0.55 mm |
| Working Speed | 10m/min |
| Roller driven type | Chain transmission |
| Power Requirement | Main motor power:4kw |
| Controller | PLC |
| Voltage | 380v/3phase/50HZ |
| Roller Material | 45 steel with chrome |
| Hydraulic system pressure | 12 |
| Hydraulic station motor power | 7.5 |
| Total power | 10.5 |
| Total weight | About 8000KG |
3. We do Standard, Machine Components
For this machine, according to our company standard, we will offer you following components
as the standard configuration.
| Passive Uncoiler | 1pc |
| Guiding Equipment | 1pc |
| Roll Forming Equipment | 1pc |
| Post Cut Equipment | 2pc |
| Hydraulic Station | 1pc |
| PLC Control Penal | 1pc |
| Supporter Table | 2pc |
4. Machine Details:
1) Manual Uncoiler
Usage: It is used to support the steel
coil and uncoil it in a turnable way.
The steel coil is uncoiled by hand.
Loading capacity: 3000KG.
Inner diameter: 500-508mm
2) Main Roll Forming Machine
Material of rollers: 45# steel,
roller surfaces polishing, hard plating ,
The polished surface and the heat
treatment towards the molds also can
keep the molding plate surface smooth
and not easy to be marked when
it is being stamped.
3) Hydraulic System AND Computer Control Cabinet
Hydraulic oil: 45#
hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.
The target piece`s length is adjustable and digit of it can be adjusted.
Computed mode has two modes:
automatic and manual one.
The system is easy to operate and use
PLC: EURA
(Can customize as customer require)

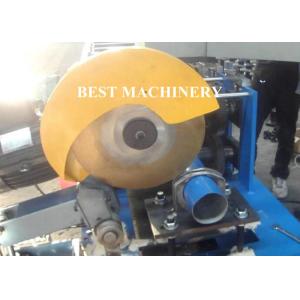

4) Cutting
Hydraulic cutting
5) ELbow Machine
PLC Control type
5. Our Service:
1) Customers` Design ,Size,Color&Logo are accepted.
2) With10years professional manufacture experience
3) Prompt Delivery&Competitive Price
4) Main markets: Middle East, Europe, North America, Africa,Southeast Asia.
After-sales service:
1) We provide the technical support for whole life of our machines.
2) If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should take all the cost,
including visa,roundtrip ticket etc.
Feature of our machine:
1) Our machine can use galvanized steel sheet,colored armor plate or aluminum plate as the material plate.
2) Controlling by computer,PL display,operationis easy,running is steadyand reliable,endurable,maintence-free.
3) We can make and design what kinds of roll forming machine according to the request of customers.
