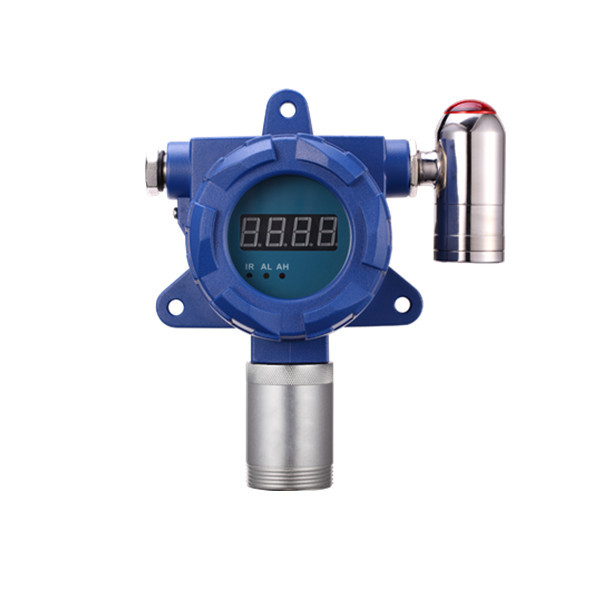

0.01% VOL Resolution Oxygen O2 Gas Detector With Electrochemistry Sensor

    Buy cheap 0.01% VOL Resolution Oxygen O2 Gas Detector With Electrochemistry Sensor from wholesalers

    Buy cheap 0.01% VOL Resolution Oxygen O2 Gas Detector With Electrochemistry Sensor from wholesalers
    • Buy cheap 0.01% VOL Resolution Oxygen O2 Gas Detector With Electrochemistry Sensor from wholesalers
    • Buy cheap 0.01% VOL Resolution Oxygen O2 Gas Detector With Electrochemistry Sensor from wholesalers

    0.01% VOL Resolution Oxygen O2 Gas Detector With Electrochemistry Sensor

    Ask Lasest Price
    Brand Name : Safegas
    Model Number : YT-95H-O2
    Certification : ATEX/CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, Master card, VISA
    Supply Ability : 3000 pieces/month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    0.01% VOL Resolution Oxygen O2 Gas Detector With Electrochemistry Sensor

    0.01% VOL Resolution Oxygen O2 Gas Detector With Electrochemistry Sensor


    Wall-mounted CL2 Gas Detector 0-10PPM Chlorine Leak Detector For Chemical PlantWall-mounted CL2 Gas Detector 0-10PPM Chlorine Leak Detector For Chemical Plant

    With alarm Without alarm


    YT-95H is a fixed continuous detection instrument of the concentration of flammable gas, oxygen concentration or the concentration of toxic gases in the operating environment. Diffusion sample test, use imported electrochemical sensor or catalytic combustion sensor, with excellent sensitivity and repeatability; large-screen LCD real-time display concentration of leakage gas, exceeds a preset alarm point immediately start audible and visual alarm signals; Solid relay output can be connected with drive exhaust system; international standard 4-20mA can directly connect DCS system. There are also 0-5V, RS485, relay for your option.


    Product advantages

    • Employing overseas original sensor.
    • Tandard equipped with three-wire system 4-20mA analog output;
    • relay output; RS485 output (optional)
    • Unique infrared ray control function, which can non-contacted controlthe device.
    • Being compatible with all kinds of controlled alarms, PLC, DCS and
    • other control system, can be remote monitored.
    • Explosion-proof design, fast, reliable and stable.
    • Explosion-proof grade: Ex dⅡCT6
    • With self-calibration function and three standard keys will be used to
    • realize on-site maintenance.

    Specification

    Gas detectedO2
    Detection principleElectrochemistry
    Install methodWall-mounted, piping type, flow-type (according to the detected environment)
    Measure range0-25%VOL, 0-30%VOL, 0-100%VOL
    Resolution0.01%VOL
    Precision± 2-3% FS
    Signal output4-20mA, 0-5V, RS485, relay(optional)
    Response time≤10SRecovery time≤10S
    Repeatability≤±1%Linearity error≤±1%
    Zero shift≤±1%(FS/year)DisplayHigh-light nixie tube display
    Connection modeG1/2 external thread explosion-proof flexible pipeUnitppm, mg/m³, %vol
    Temperature-20 to 50°CHumidity0-95%RH
    Explosion-proofEx dⅡCT6Degree of protectionIP65
    AlarmSound, lightOperating time24H
    Dimensions180*150*90mmWeight≤2kg


    FAQ:

    1. Could you please tell me the Warranty Period of your product?
    Our warranty period is one year free and lifelong maintenance, and if the product we sell is damaged (if not man-made damage), in the first year,we will send free parts for replacement.
    Over the warranty,maintenance is paid service.
    2. What kind of Certificate can you provide?
    We can provide the CE mark,ISO 9001 quality certificate,the third party calibration certificate(CNAS),factory test report.
    3. Do you have Technical Backup to all customers from different countries?
    To be surely,our technical support is always available and quick response.
    We are manufacturer of so much on site testing experience and understand how to deal with your problems. Moreover, our engineers can go to your country to support if need.
