    Digital Weighing Instrument Belt Scale Controller With Profibus - DP / Ethernet

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST100-E01
    Certification : CE
    Price : Negotiation
    Supply Ability : 500pcs per month
    Delivery Time : 3-10 working days
    • Product Details
    • Company Profile

    Digital Weighing Instrument Belt Scale Controller With Profibus - DP / Ethernet


    Belt Scale Digital Weighing Instrument Controller With Profibus-DP/Ethernet


    Main Features:

    • Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
    • EMC design with high anti-jamming capability, suitable for industrial environment.
    • 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
    • 128×64 LCD display screen with 7 background colors for English display.
    • 16-key English keypad.
    • Menu&Shortcut mode operation with key tone.
    • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
    • Broad-range speed pulse input circuit.
    • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
    • Max. Connection Quantity: 8 Loadcells (350Ω).
    • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
    • Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
    • One optional ‘Flow Setpoint’ analog signal input [AI: 4~20mA].
    • Max.3 definable ‘Flow/Control Current /…’ analog signal outputs [AO: 4~20mA].
    • Quick and steady PID ration feeding control.
    • 3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch outputs [DO].
    • The feeder and belt weigher can be started and stopped by DI&DO signal.
    • 1 ‘Totalized Weight High-speed Pulse’ output [PO].
    • 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
    • Weight Records per shift/day/month of a year can be queried and printed.
    • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

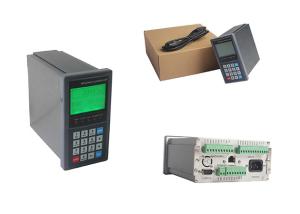

    Model Vertical Panel-mounting Operation Interface

    Keypad Operation

    If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.

    Menu Operation
    Key NameDescription

    【MENU】
    (【ESC】)

    Enter Main Menu.

    Exit.

    【ENT】Enter/Save.
    【▲】

    Cursor shifts up or left.

    Display the previous interface or option.

    【▼】

    Cursor shifts down or right.

    Display the next interface or option.

    【0~9】Digit Input.
    Quick Operation
    【LOCK】
    • Key-locking.
    • Key-unlocking.
    【F1】Return to the initial display interface.
    【SET】Flow Set Value Setting.
    【ADJ-】Control Current -1mA.
    【ADJ+】Control Current +1mA.
    【AUTO】‘Manual/Auto’ Control Mode Selection.
    【EXT】‘Internal/External’ Flow Set Mode Selection.
    【ZERO】Zero Calibration.
    【CAL】Dynamic Span Calibration.
    【CLS】Clear Screen: Clear display value of Totalized Weight.
    【REC】Query and print Weight Record.
    【PRINT】Print.

    State Indication

    LED LampDescription
    [RUN]

    ON: Weighing state.
    OFF: Stopping state.

    [AUTO]

    Feeding control mode:
    ON: Auto [PID].
    OFF: Manual.

    [EXT]

    Flow Set Mode:
    ON: External [AI: 4~20mA].
    OFF: Internal.

    [ALARM]Alarm.
    [LOCK]

    ON: Key-locked.
    OFF: Key-unlocked.


    Ration Flow Auto-Feeding System
