    0.05%FS Digital Pressure Test Gauge Construction Machinery Automation Calibration

    Ask Lasest Price
    Brand Name : ZHYQ
    Model Number : ZH-S210
    Certification : CE, ROHS, SIL, etc
    Price : Negotiate
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 pieces per month
    Delivery Time : within 7 days
    • Product Details
    • Company Profile

    0.05%FS Digital Pressure Test Gauge Construction Machinery Automation Calibration

    Construction Machinery Automation Control Calibration High Precision 0.05%FS Intelligent Pressure Gauge


    Description

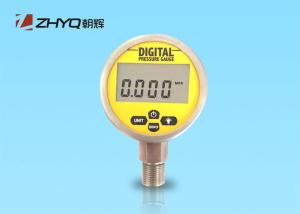

    ZH-S210 adopts 55x55mm large size LCD screen, It can display pressure, temperature, the maximum pressure and the minimum pressure at the same time. The product has powerful functions, preset 10 kinds of common pressure units for selection, adjustable pressure collection rate, battery power display, and is equipped with USB external power supply and battery dual power supply mode. It adopts high-precision ADC and high-speed microprocessor, full digital design, high precision, good stability, and good appearance.


    Aplication


    Mechanical and electronics industry
    Industrial instruments
    Pressure laboratory
    Construction machinery automation control field


    Feature


    Double screen design, convenient for reading
    Pressure unit optional (MPa, psi, optional);
    High accuracy 0.1%FS and 0.05%FS

    Low power consumption, battery power supply, which lasts over3600 hours
    Adjustable sample frequency


    Specification


    Pressure range-0.025 ~0~ 1600 bar
    Over load pressure150%FS(>100bar); 200%FS(≤100bar)
    Backlight colorWhite
    Dial size105mm
    Accuracy grade0.05%FS, 0.1%FS
    Output signalRS485
    Reliability±0.1%FS/year
    Working temperature0~ 40℃
    Compensation temperature0~ 40℃
    Electric protectionanti-electromagnetic design
    Sampling frequency1-10 times per second
    Tested mediumGas and liquid which is compatible with 316L material
    Process connectorM20*1.5, G1/2 , G1/4 , optional
    Connector material304 stainless steel
    Housing materialStainless steel material (some type is plastic )
    FunctionsOn/off; backlight; reset ; unit switch; calibration ; etc
    Supply voltageBattery or USB
