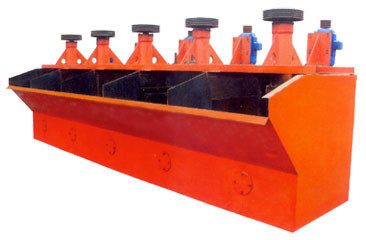

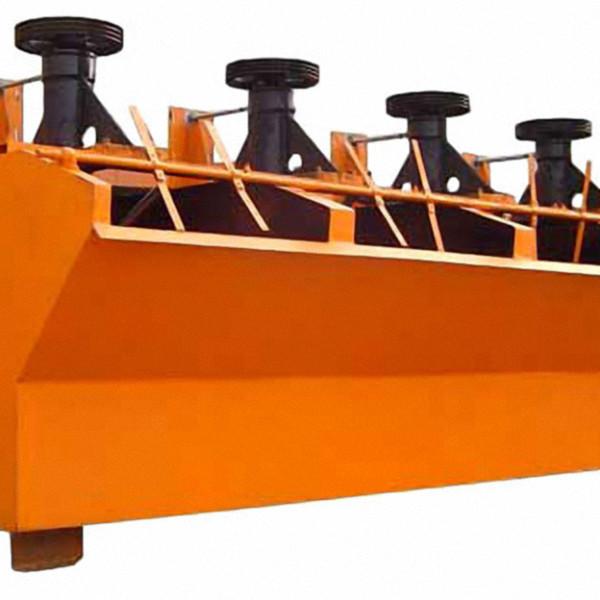

Iron ore flotation machine / sand flotation for ore dressing line
Overview of Flotation Machine:
Flotation machine is applicable for the extraction of metals like
gold, argent, iron, lead, zinc, molybdenum, nickel and aluminum and
the separation of ferrous metals and non-metals. It can be used in
roughing, scavenging, selection or reverse flotation. In the
flotation process, after being mixed with drug, some qualified
mineral absorbs on bubbles, floats on the surface of slurry and
then is scraped out, other minerals still stay.
Working Principle of Flotation Machine:
Flotation cell equipment is mainly composed of pulp chute, mixing
device, air charging system, mineralized bubble discharging device
and electro motor.
When the flotation cells machine equipment works
1. The impeller of the flotation cells is driven by the spinning
engine triangle to form the centrifugal formation and produce the
negative pressure.
2. On one hand, large of inhaled air is mixed with the pulp;
3. On the other hand, the stirred pulp is mixed with the drug to
fine the bubble, to make a certain mineral bond on the bubble.
Adjust the height of the disc to control the liquid surface and the
useful bubble will be scraped out.
Advantages:
1. Self-absorption of air.
2. Good cycling property of pulp.
3. Flotation machine's suction volume is relatively stable.
4. Medium mixing strength and good suspension of solid particles.
5. The liquid level of the flotation machine is stable and it has
low power consumption.
Specifications:
XCF/KYF Series Flotation Equipment
| Model | Volume (m3) | Cell Size (mm) | Impeller Dia. (mm) | Impeller Speed (r/min) | Capacity (m3/min) | Power (kw) |
| XCF/KYF | 1 | 1000x1000x1100 | 400/340 | 358/281 | 0.2-1 | 5.5/4/1.1 |
| XCF/KYF | 2 | 1300x1300x1250 | 470/410 | 331/247 | 0.4-2 | 7.5/5.5/1.1 |
| XCF/KYF | 3 | 1600x1600x1400 | 540/480 | 266/219 | 0.6-3 | 11/7.5/1.5 |
| XCF/KYF | 4 | 1800x1800x1500 | 620/550 | 215/200 | 1.2-4 | 15/11/1.5 |
| XCF/KYF | 6 | 2050x2050x1750 | 620/550 | 215/200 | 3-6 | 15/11/1.5 |
| XCF/KYF | 50 | 4400x4400x3500 | 1200/1030 | 134 | 10-40 | 90/75/1.5 |
| XCF/KYF | 70 | 5100x5100x3800 | 1120/1120 | 121 | 13-50 | 90/90/1.5 |
| XCF/KYF | 100 | 5900x5900x4200 | 1260/1260 | - | 20-60 | 132/110/1.5 |
BF Series Flotation Equipment
| Model | Volume (m3) | Cell size (mm) | Impeller Dia. (mm) | Capacity (m3/min) | Power (kw) |
| BF-0.37 | 0.37 | 740x740x750 | 286 | 0.2-0.4 | 1.5/1.1 |
| BF-0.65 | 0.65 | 850x950x900 | 300 | 0.3-0.7 | 3/1.1 |
| BF-1.2 | 1.2 | 1050x1150x1100 | 450 | 0.6-1.2 | 5.5/1.1 |
| BF-2.0 | 2 | 1400x1450x1120 | 500 | 1-2 | 7.5/1.1 |
| BF-2.8 | 2.8 | 1650x1650x1150 | 550 | 1.4-3 | 11/1.5 |
| BF-4 | 4 | 1900x2000x1200 | 650 | 2-4 | 15/1.5 |
| BF-6 | 6 | 2200x2350x1300 | 700 | 3-6 | 18.5/1.5 |
| BF-8 | 8 | 2250x2850x1400 | 760 | 4-8 | 30/1.5 |
| BF-10 | 10 | 2250x2850x1700 | 760 | 5-10 | 30/1.5 |
| BF-16 | 16 | 2850x3800x1700 | 850 | 8-16 | 37/1.5 |
| BF-20 | 20 | 2850x3800x2000 | 850 | 10-20 | 37/1.5 |
| BF-24 | 24 | 3150x4150x2000 | 920 | 12-24 | 45/1.5 |
